Installation Procedure

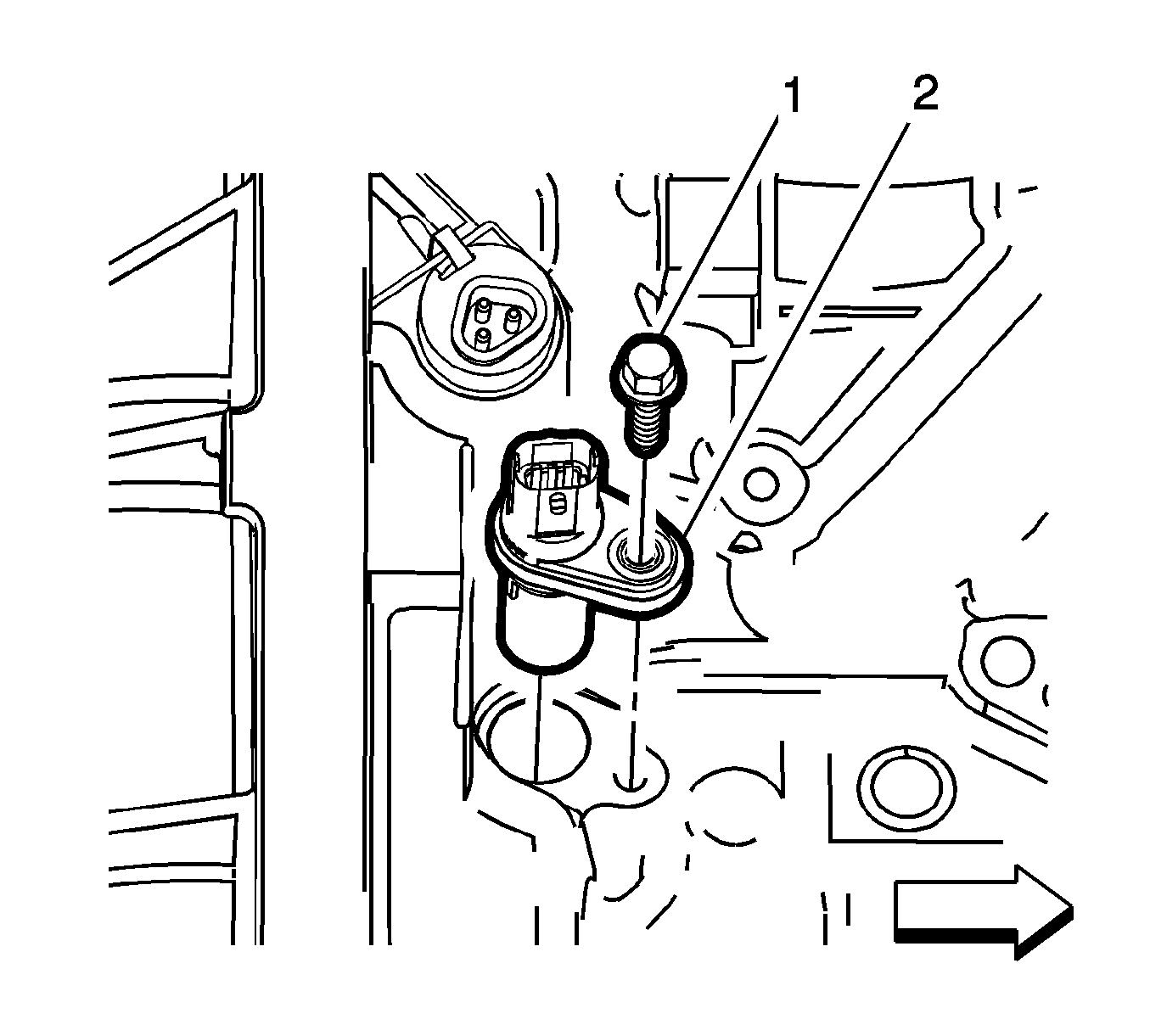

    Fig 1: Identifying Crankshaft Position (CKP) Sensor
    GM1311144Courtesy of GENERAL MOTORS COMPANY
  1. Install the crankshaft position sensor.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the crankshaft position sensor bolt and tighten to 10 N.m (89 lb in).

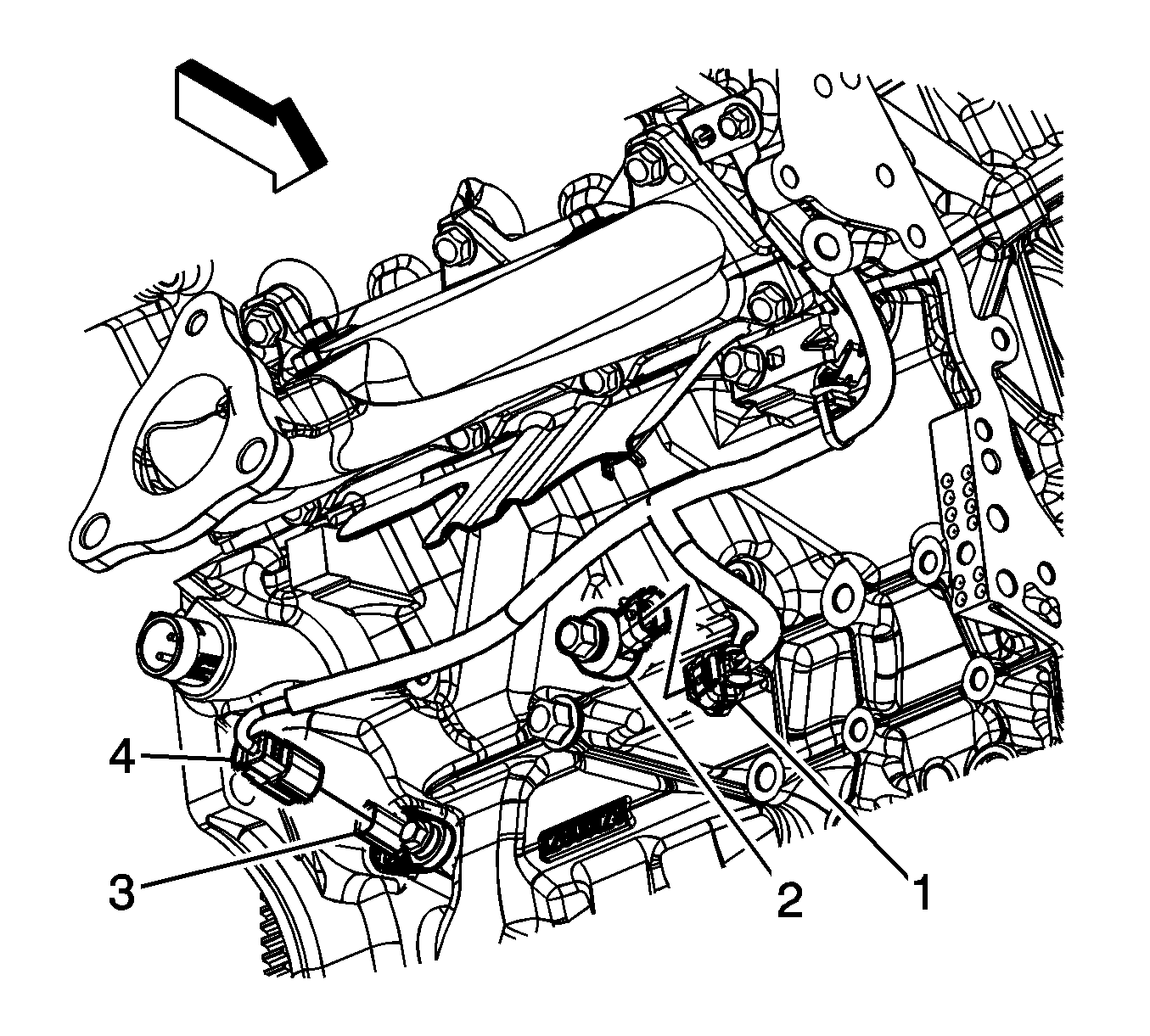

    3. Fig 2: Identifying Knock Sensor & crankshaft position (CKP) sensor Electrical Connectors
    GM1860405Courtesy of GENERAL MOTORS COMPANY
  3. Connect the engine wiring harness electrical connector (3) to the CKP sensor (4).
  4. Install the exhaust manifold lower heat shield. Refer to Exhaust Manifold Lower Heat Shield Replacement .
