Installation Procedure

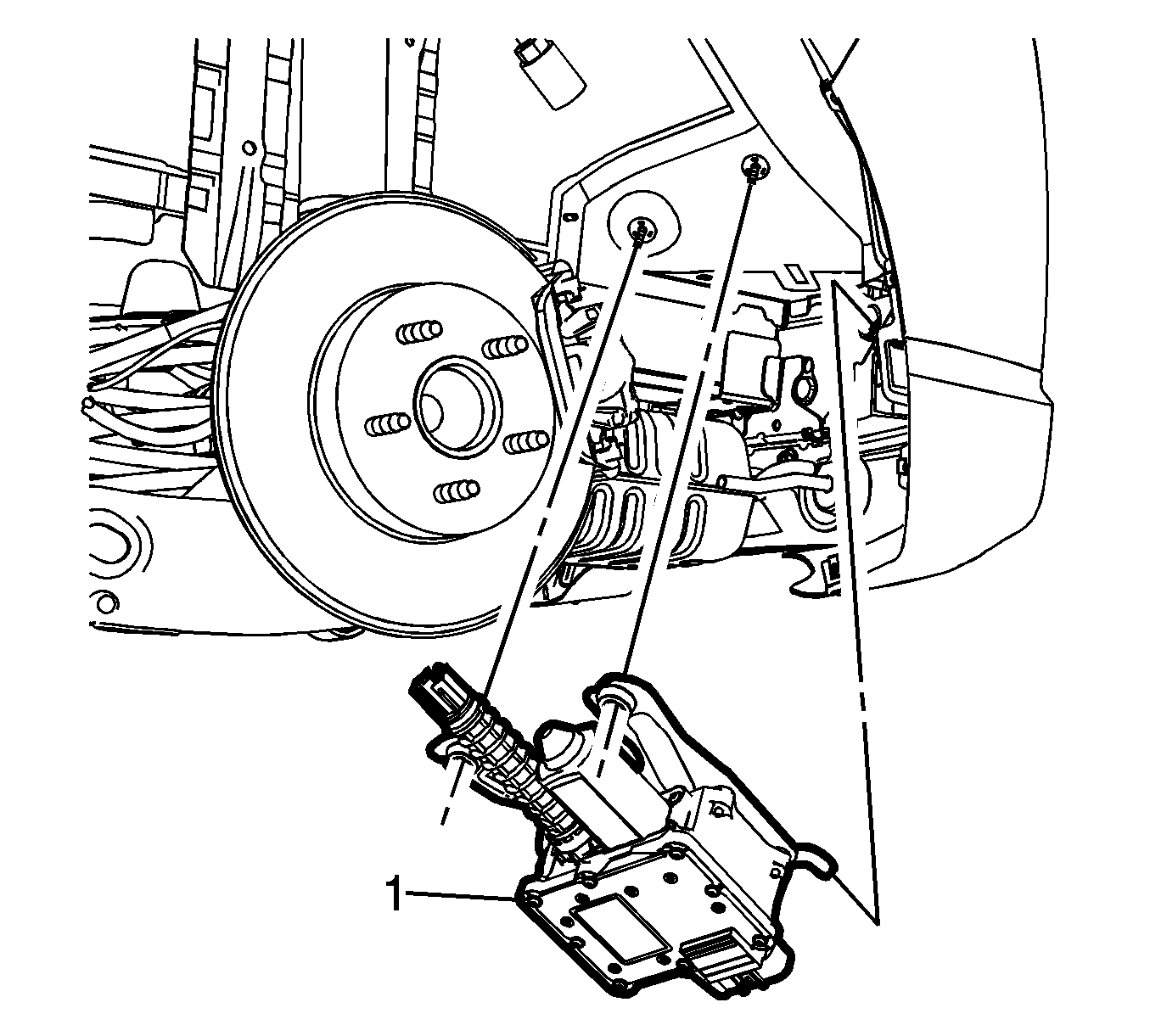

    Fig 1: Electronic Parking Brake Control Module
    GM2391027Courtesy of GENERAL MOTORS COMPANY
  1. Insert the electronic parking brake control module (1) hanger into the grommet in the vehicle body.
  2. Raise the front of the electronic parking brake control module and install onto the studs in the vehicle body.

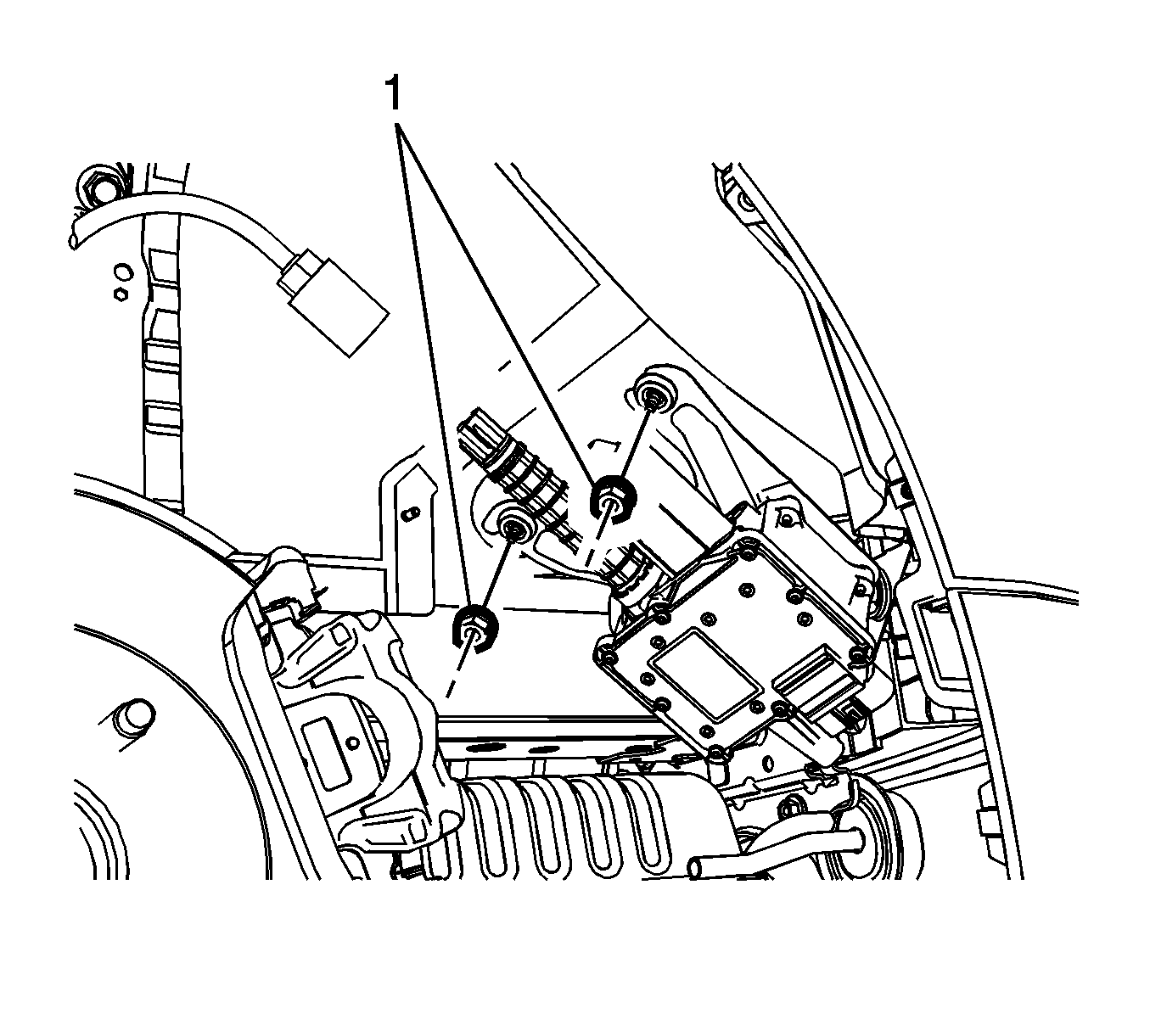

    3. Fig 2: Electronic Parking Brake Control Module And Nuts
    GM2391024Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install the electronic parking brake control module nuts (1) and tighten to 10 N.m (89 lb in).
  4. Connect the electronic parking brake control module electrical connector.

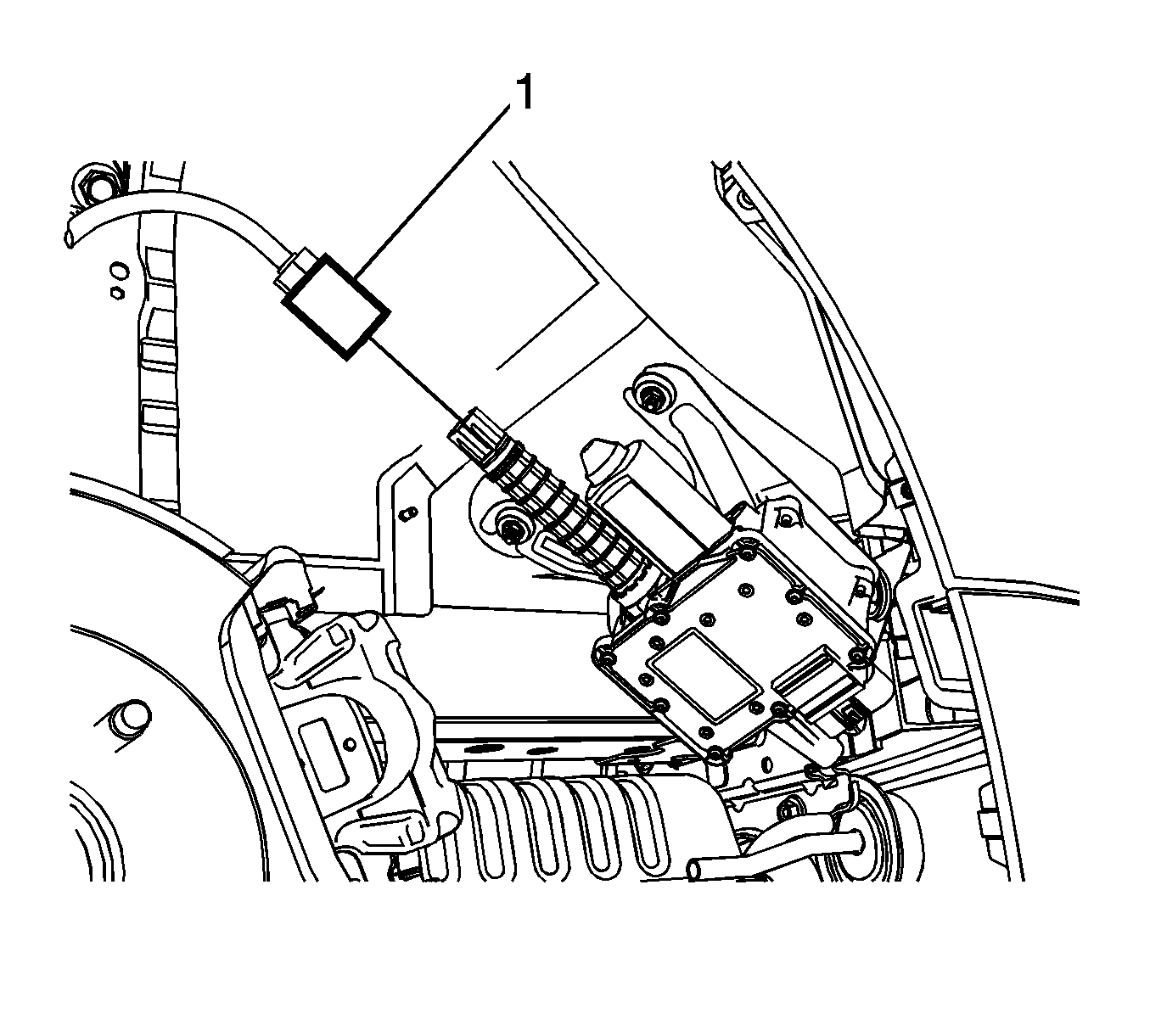

    5. Fig 3: Parking Brake Cable And Nut
    GM2391020Courtesy of GENERAL MOTORS COMPANY
  5. Install the parking brake cable nut (1) to the electronic parking brake control module and tighten to 6 N.m (53 lb in).
  6. Install the left rear wheelhouse panel liner. Refer to Rear Wheelhouse Panel Liner Replacement .
  7. Install the left rear tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  8. Enable the parking brake cable adjuster. Refer to Parking Brake Cable Adjuster Enabling .
  9. Program the electronic parking brake control module. Refer to Electronic Parking Brake Control Module Programming and Setup
