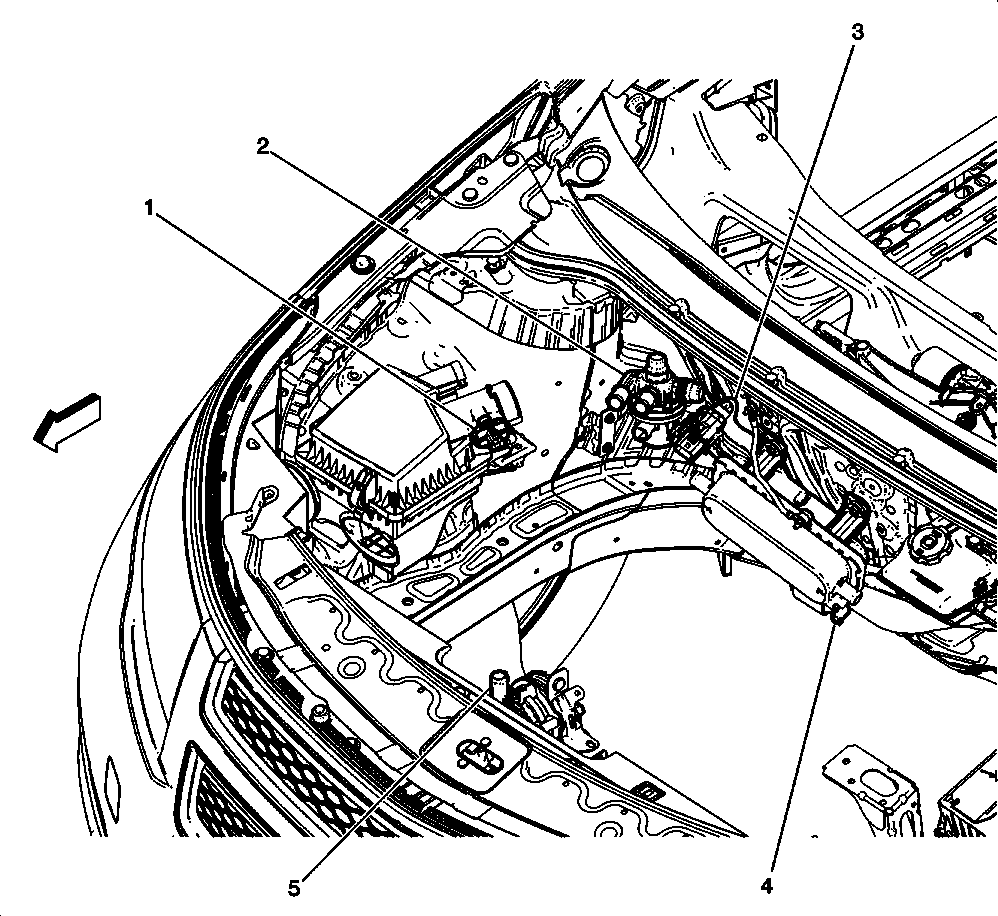

Engine Compartment Components- Right
Engine Compartment Components- Right
| Component Name |
Callout |
| B75B Mass Air Flow/Intake Air Temperature Sensor |
1 |
| Q65 Hybrid Battery Pack Coolant Control Valve |
2 |
| B135 Coolant Heater Temperature Sensor |
3 |
| K10 Coolant Heater Control Module |
4 |
| G36 Auxiliary Heater Coolant Pump |
5 |
Courtesy of GENERAL MOTORS COMPANY
