Instrument Panel/Center Console Component Views
>>
Steering Column Components
Steering Column Components
Steering Column Components
Component Name
Callout
F107 Steering Wheel Air Bag
1
X85 Steering Wheel Air Bag Coil
2
S33 Horn Switch
3
B99 Steering Wheel Angle Sensor
4

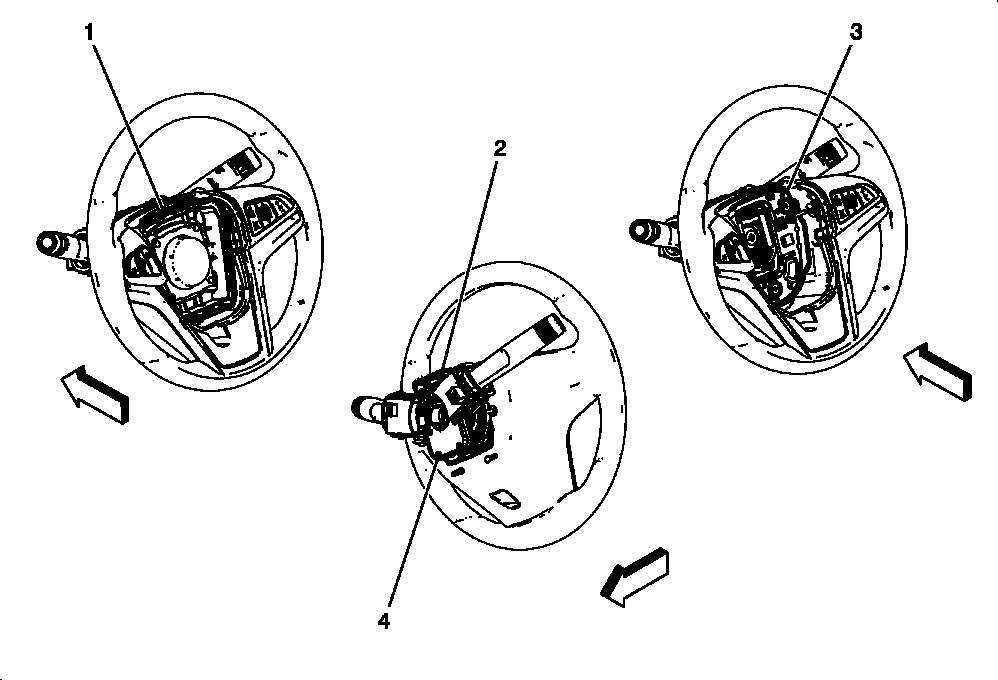

Fig 1: Locating Steering Column Components
Courtesy of GENERAL MOTORS COMPANY
