Installation Procedure

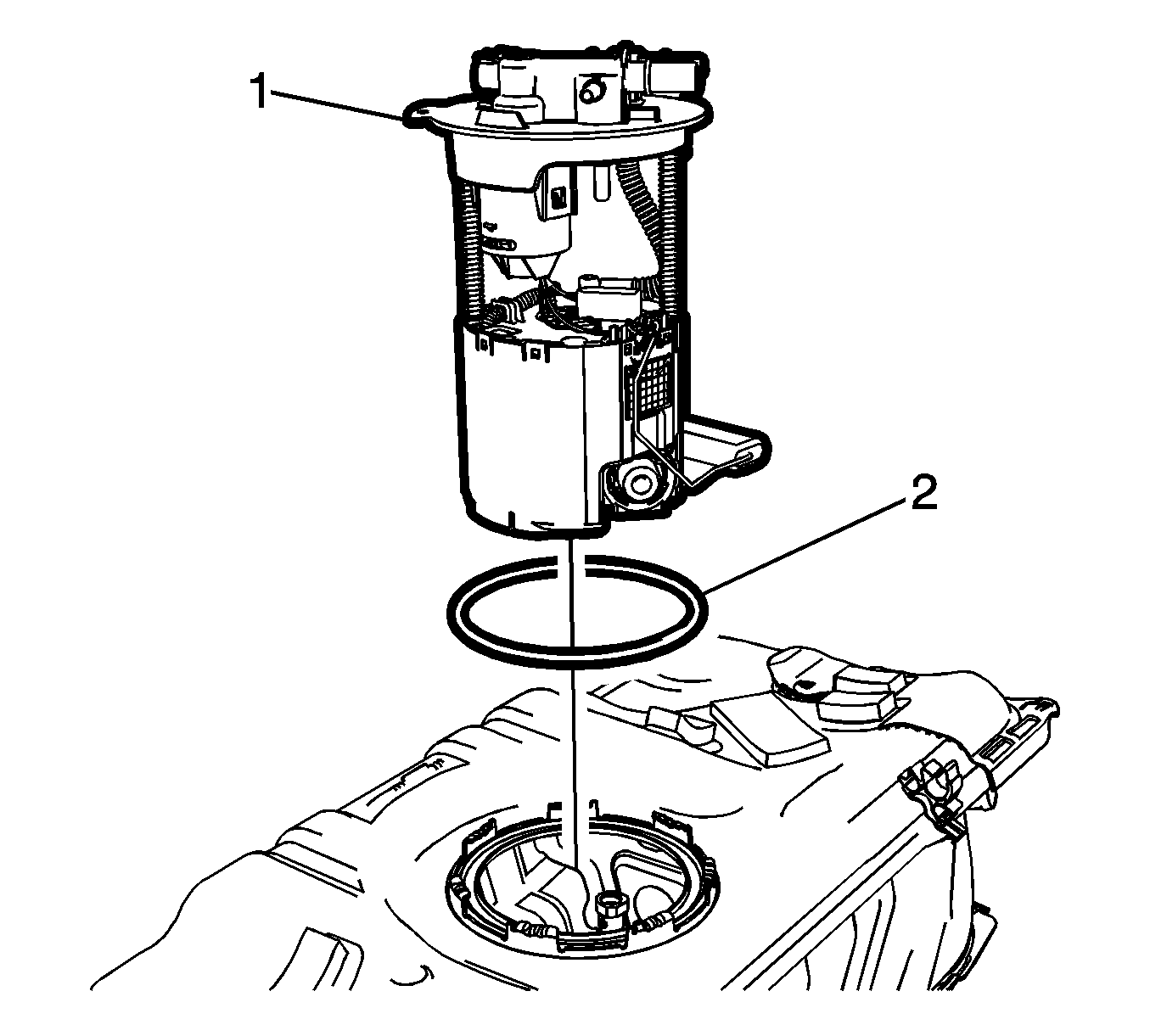

    Fig 1: Fuel Pump Module And O-Ring
    GM2389150Courtesy of GENERAL MOTORS COMPANY
  1. Install a NEW O-ring (2) and the fuel pump module (1).

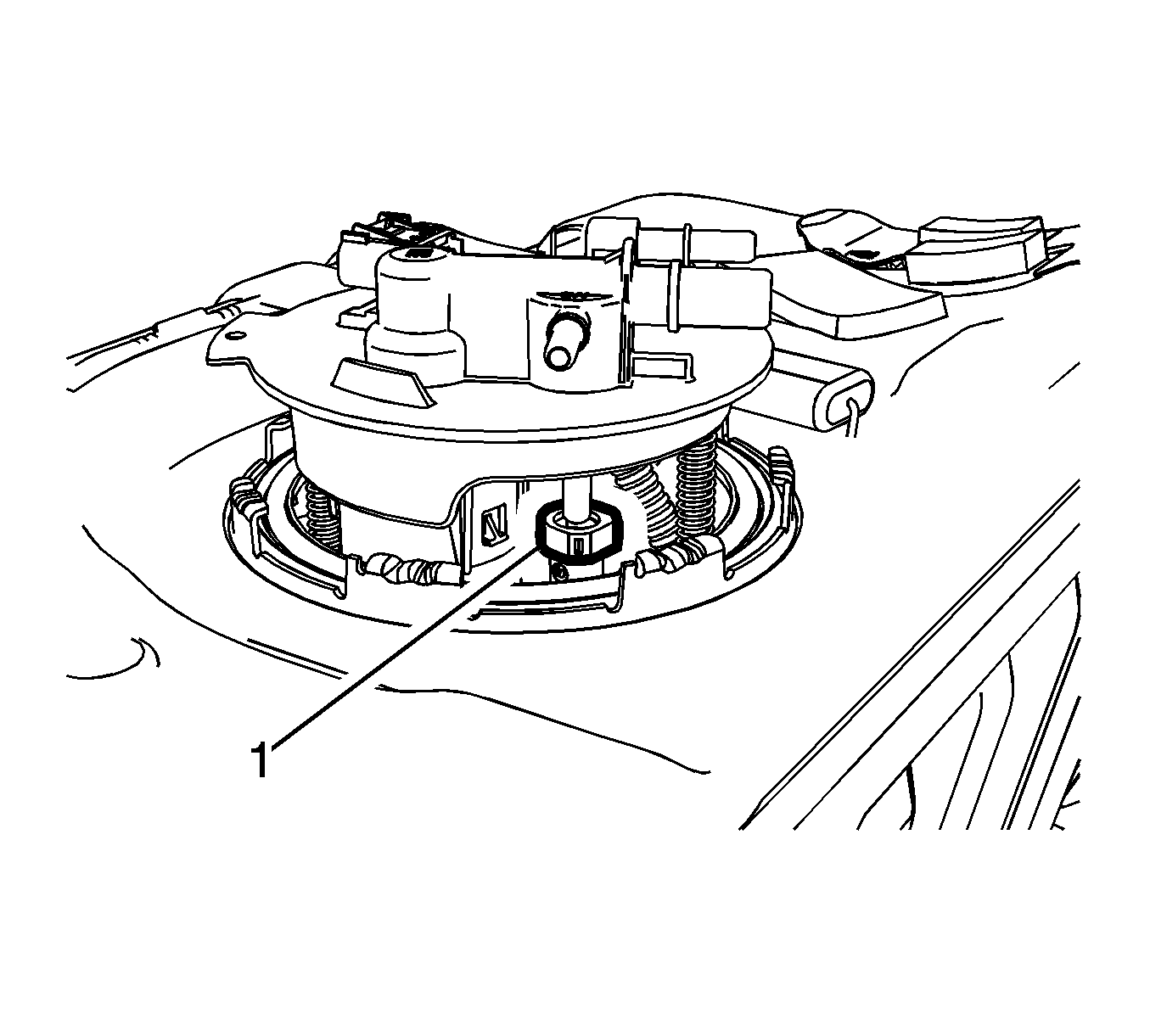

    2. Fig 2: Vent Valve Connector
    GM2389149Courtesy of GENERAL MOTORS COMPANY
  2. Connect the vent valve connector (1). Refer to Plastic Collar Quick Connect Fitting Service .

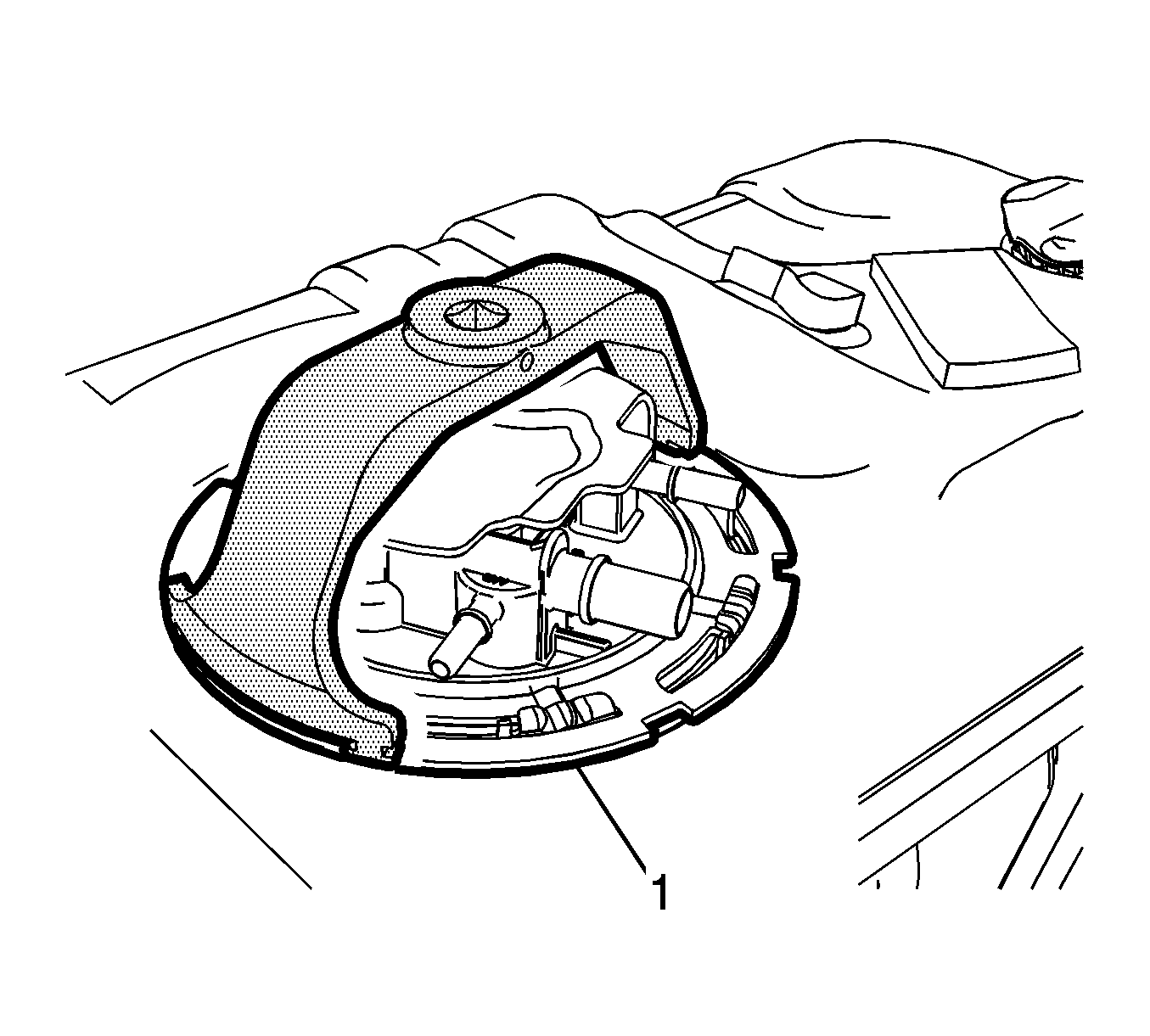

    3. Fig 3: Lock Ring Wrench
    GM2389139Courtesy of GENERAL MOTORS COMPANY
  3. Using the CH 45722  wrench, install the lock ring (1) by turning clockwise.

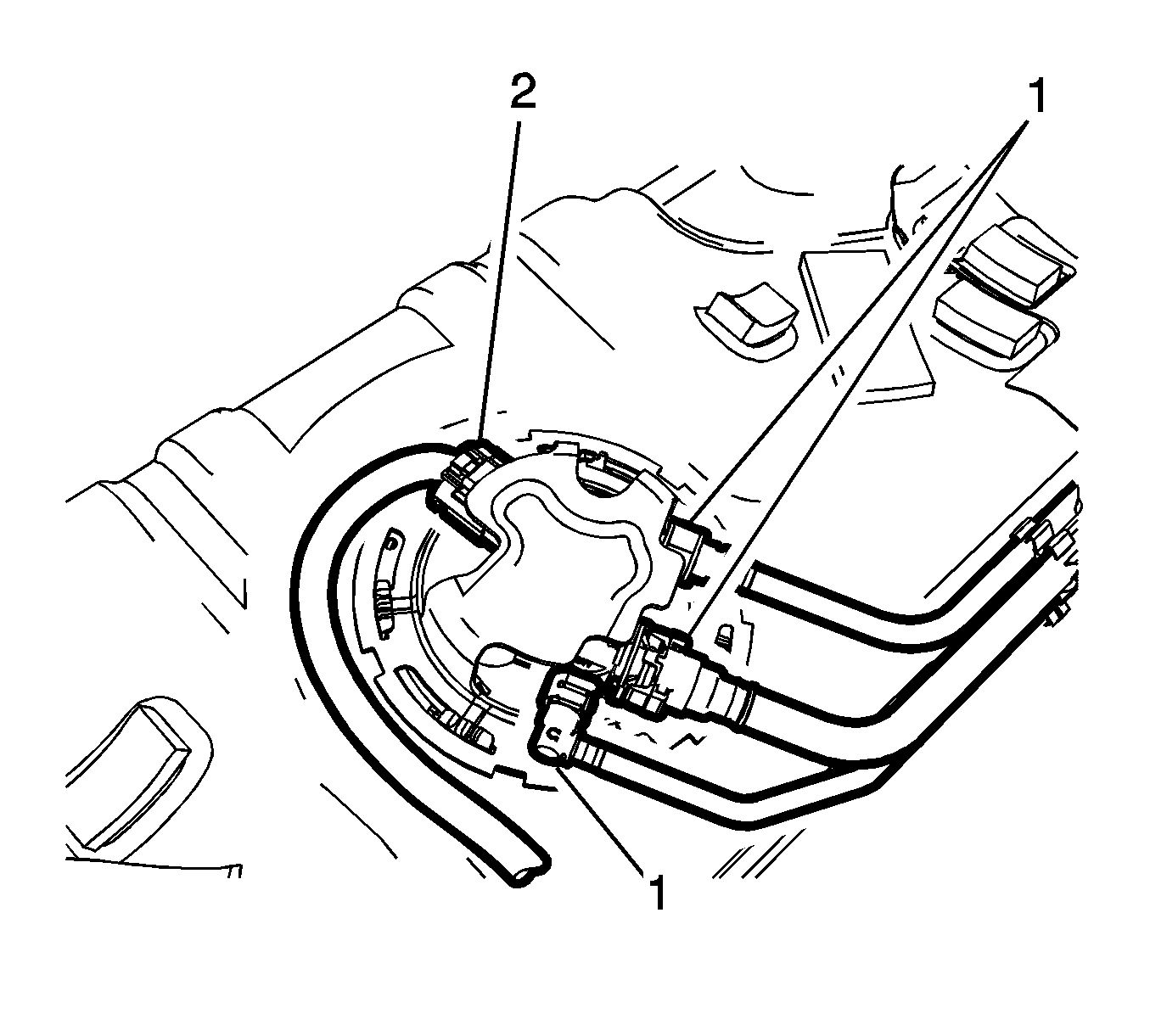

    4. Fig 4: Evaporative Emission And Fuel Lines
    GM2389137Courtesy of GENERAL MOTORS COMPANY
  4. Connect the electrical connector (2).
  5. Connect the evaporative emission and fuel lines (1). Refer to Plastic Collar Quick Connect Fitting Service .
  6. Install the fuel tank. Refer to Fuel Tank Replacement .
