Manifold Absolute Pressure Sensor Replacement
Manifold Absolute Pressure Sensor Replacement

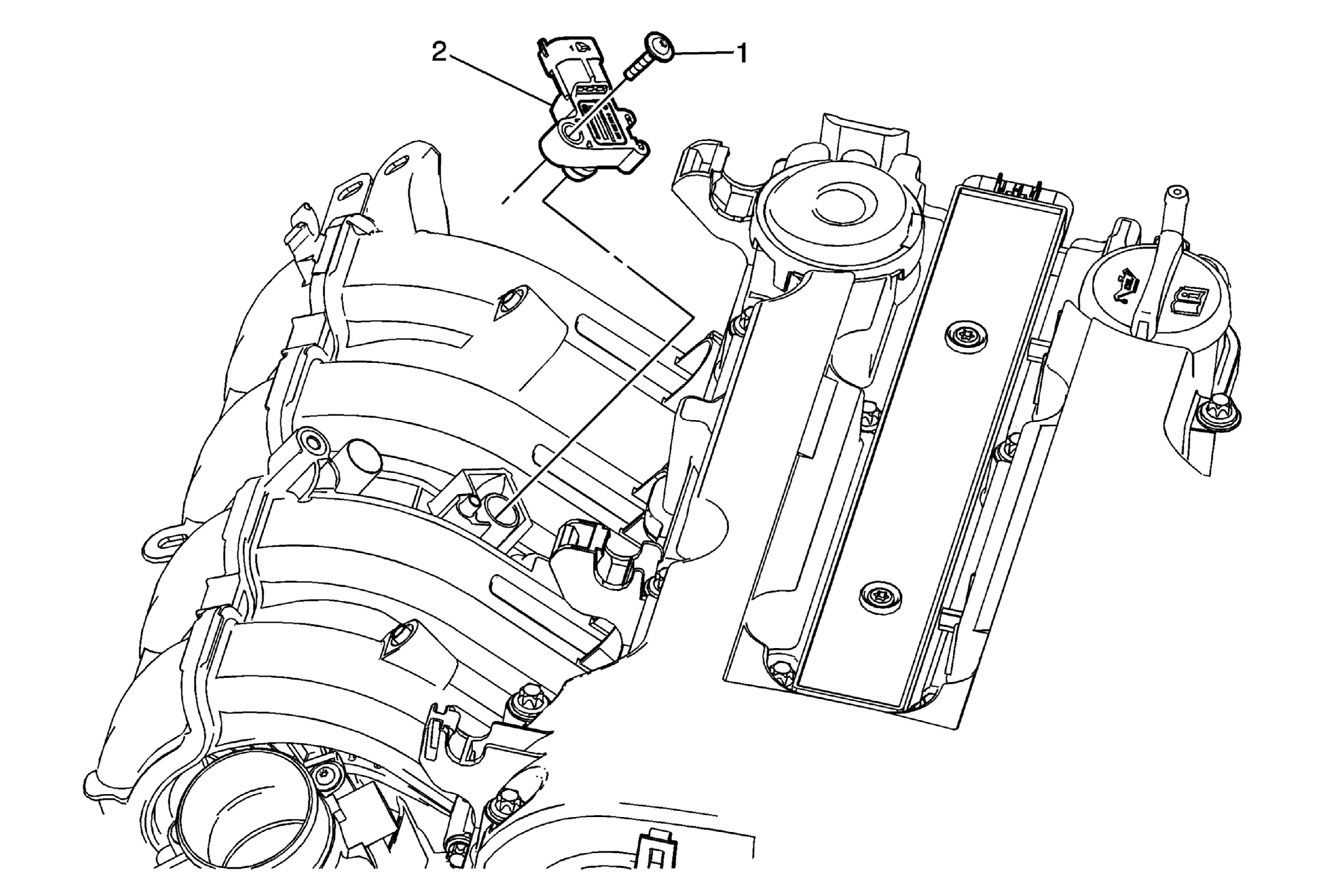

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the fuel injection fuel rail. Refer to Fuel Injection Fuel Rail Assembly Replacement . |
|
| 1 | Manifold Absolute Pressure Sensor Fastener
CAUTION:
Refer to Fastener Caution . Tighten 5 N.m(44 lb in) |
| 2 | Manifold Absolute Pressure Sensor Procedure Disconnect the electrical connector. |
