Drive Motor Generator Power Inverter Module Cover Replacement

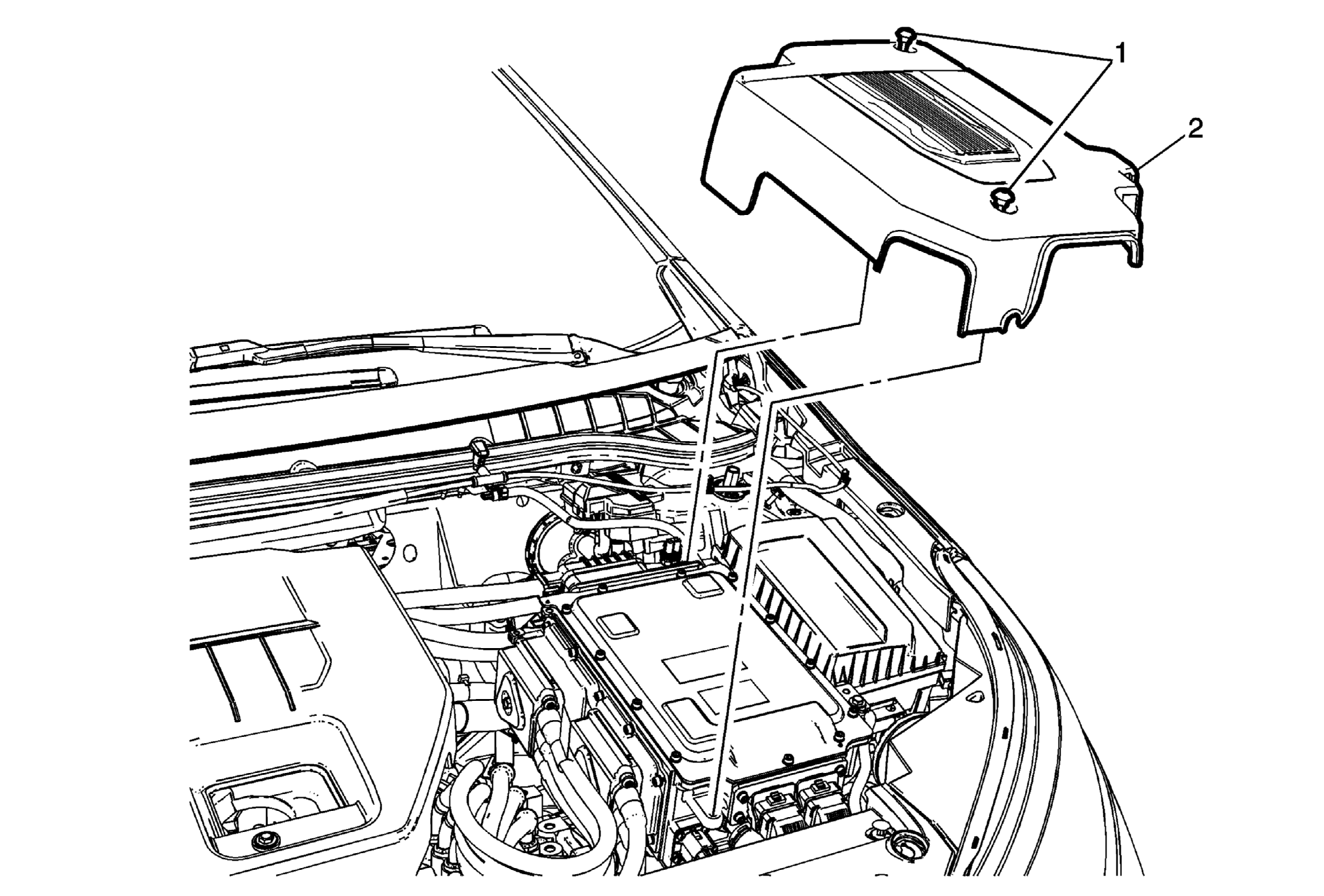

Fig 1: Drive Motor Generator Power Inverter Module Cover

Courtesy of GENERAL MOTORS COMPANY

Drive Motor Generator Power Inverter Module Cover Replacement

Callout	Component Name
1	Drive Motor Generator Power Inverter Module Cover Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Drive Motor Generator Power Inverter Module Cover
