Home >> Chevrolet >> 2013 >> Camaro LS, Automatic Trans >> Repair and Diagnosis >> Electrical >> Component Locations >> Electrical Component Locator - Instrument Panel/Center Console Component Views >> Instrument Panel/Center Console Component Views >> Steering Wheel Components

Steering Wheel Components

Steering Wheel Components

Component Name Callout
S70L Steering Wheel Controls Switch - Left (NZL) 1
S70R Steering Wheel Controls Switch - Right (NZL) 2
S33 Horn Switch 3

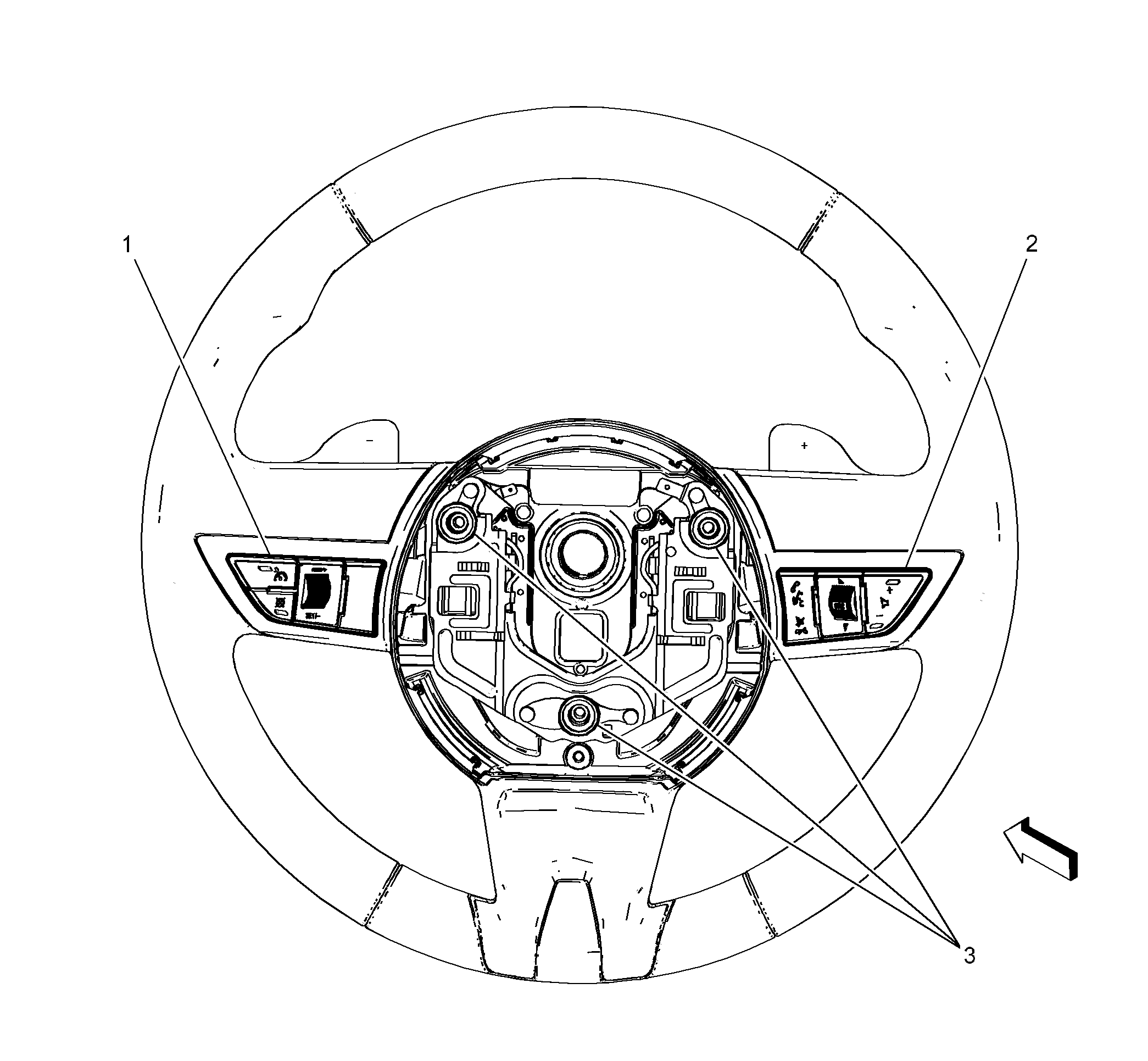

Fig 1: Steering Wheel Components
GM2263469Courtesy of GENERAL MOTORS COMPANY
