Installation Procedure

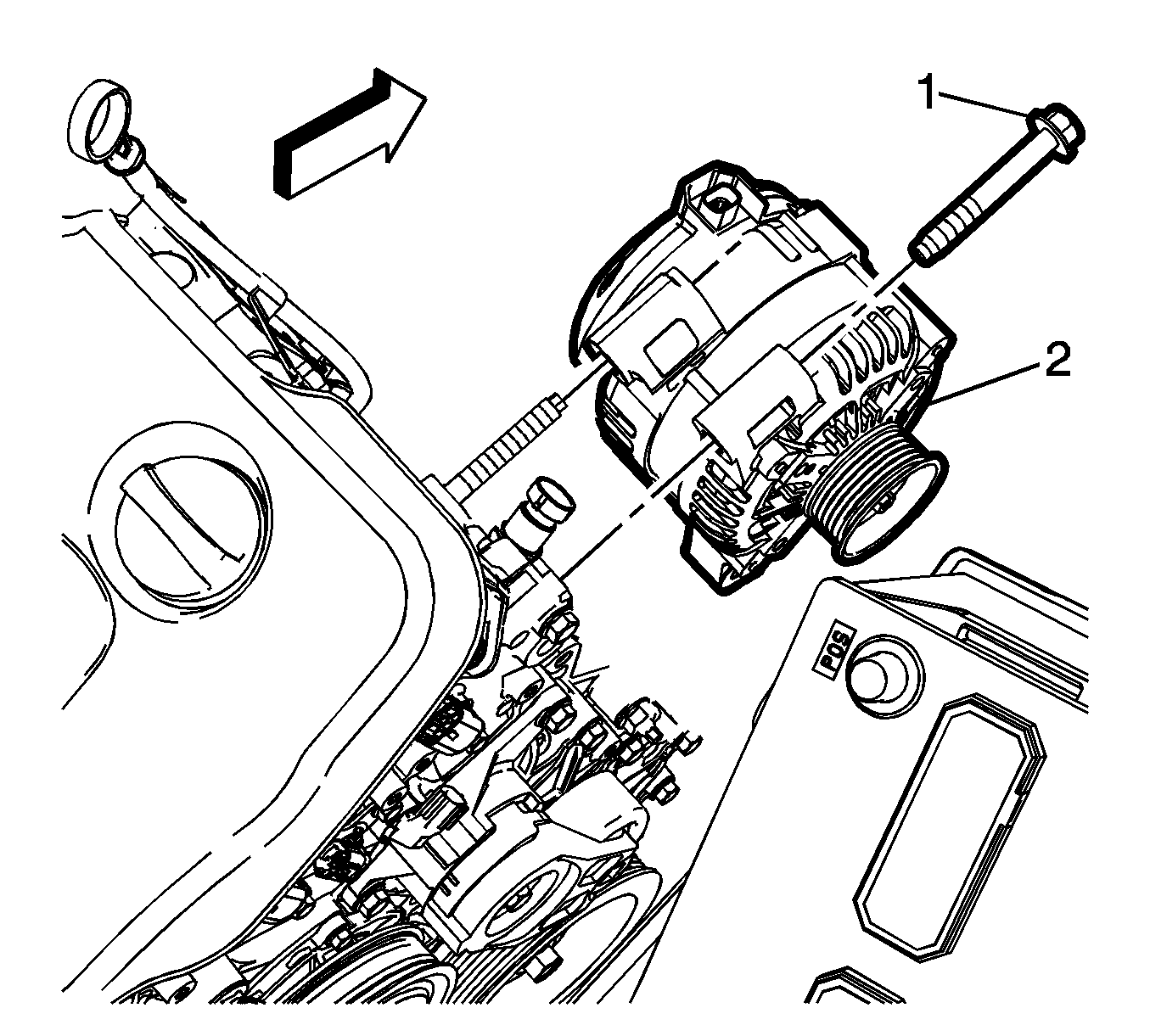

    Fig 1: Generator And Fastener
    GM2632483Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the generator (2) and tighten the fastener (1) to 58 N.m (43 lb ft).

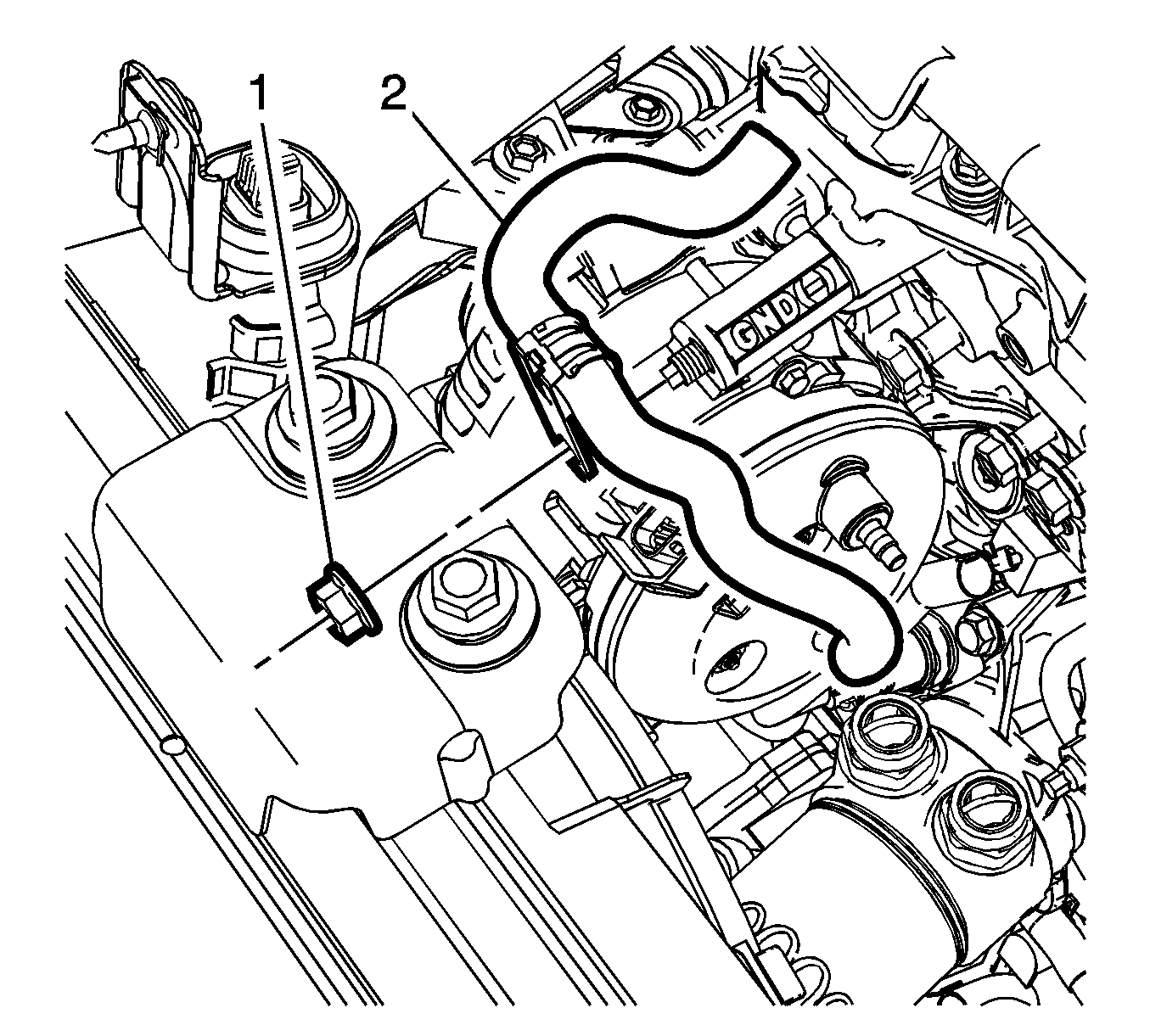

    2. Fig 2: Engine Harness And Generator Fastener
    GM2632484Courtesy of GENERAL MOTORS COMPANY
  2. Install the engine harness (2) to the generator mounting stud and tighten the fastener (1) to 58 N.m (43 lb ft).

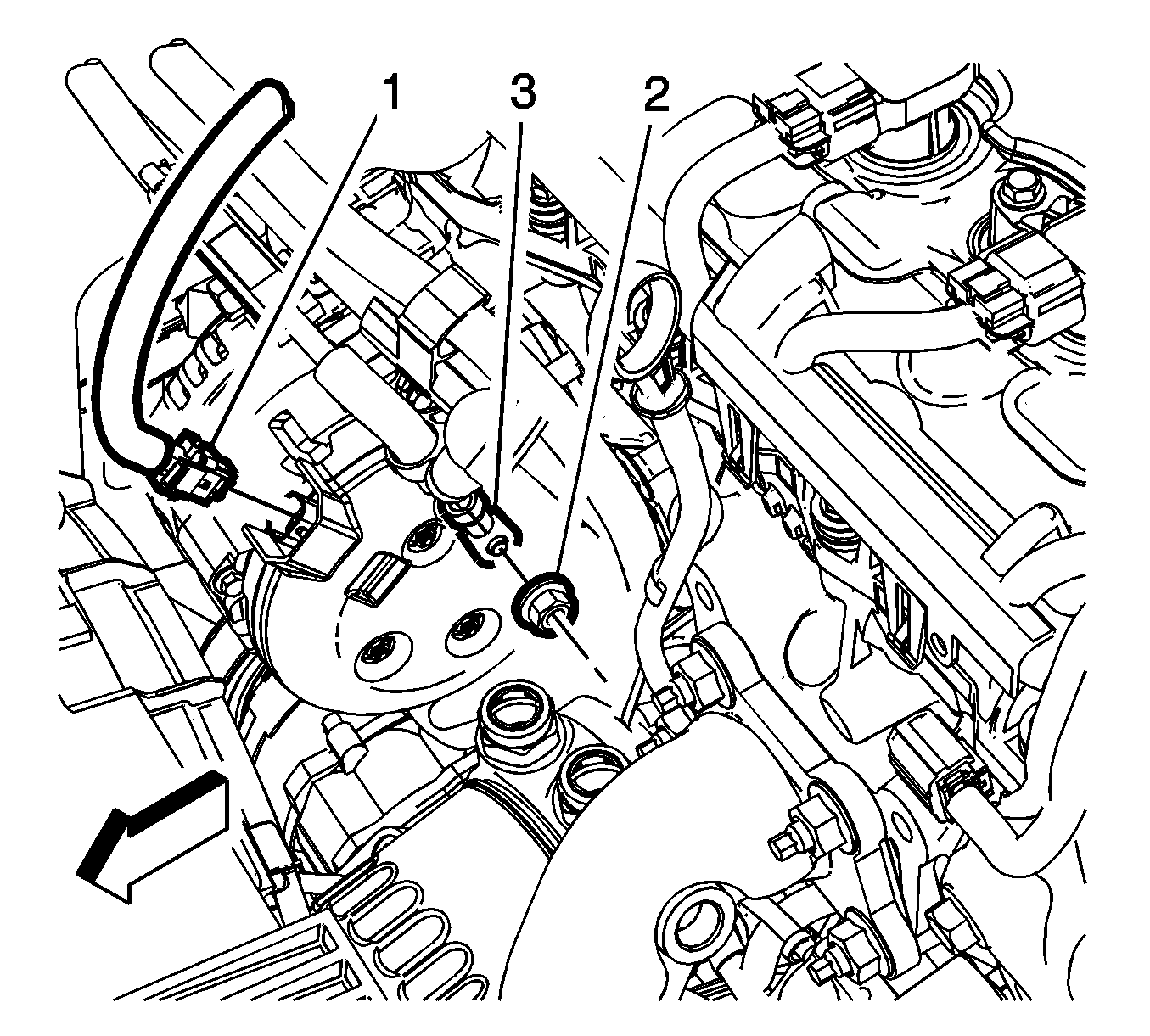

    3. Fig 3: Battery Positive Cable And Fastener
    GM2632488Courtesy of GENERAL MOTORS COMPANY
  3. Connect the engine harness connector (1) to the generator and install the battery positive terminal (3) to the generator stud. Tighten the fastener (2) to 20 N.m (15 lb ft).
  4. Install the right engine mount strut. Refer to Engine Mount Strut Replacement - Right Side .
  5. Install the drive belt idler pulley. Refer to Drive Belt Idler Pulley Replacement .
  6. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
