Chevrolet
>>
2013
>>
Silverado 1500 XFE
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Data Communication System
>>
Schematic Wiring Diagrams
>>
Body Control System Schematics
>>
Module Power, Ground, and Serial Data References
Module Power, Ground, and Serial Data References

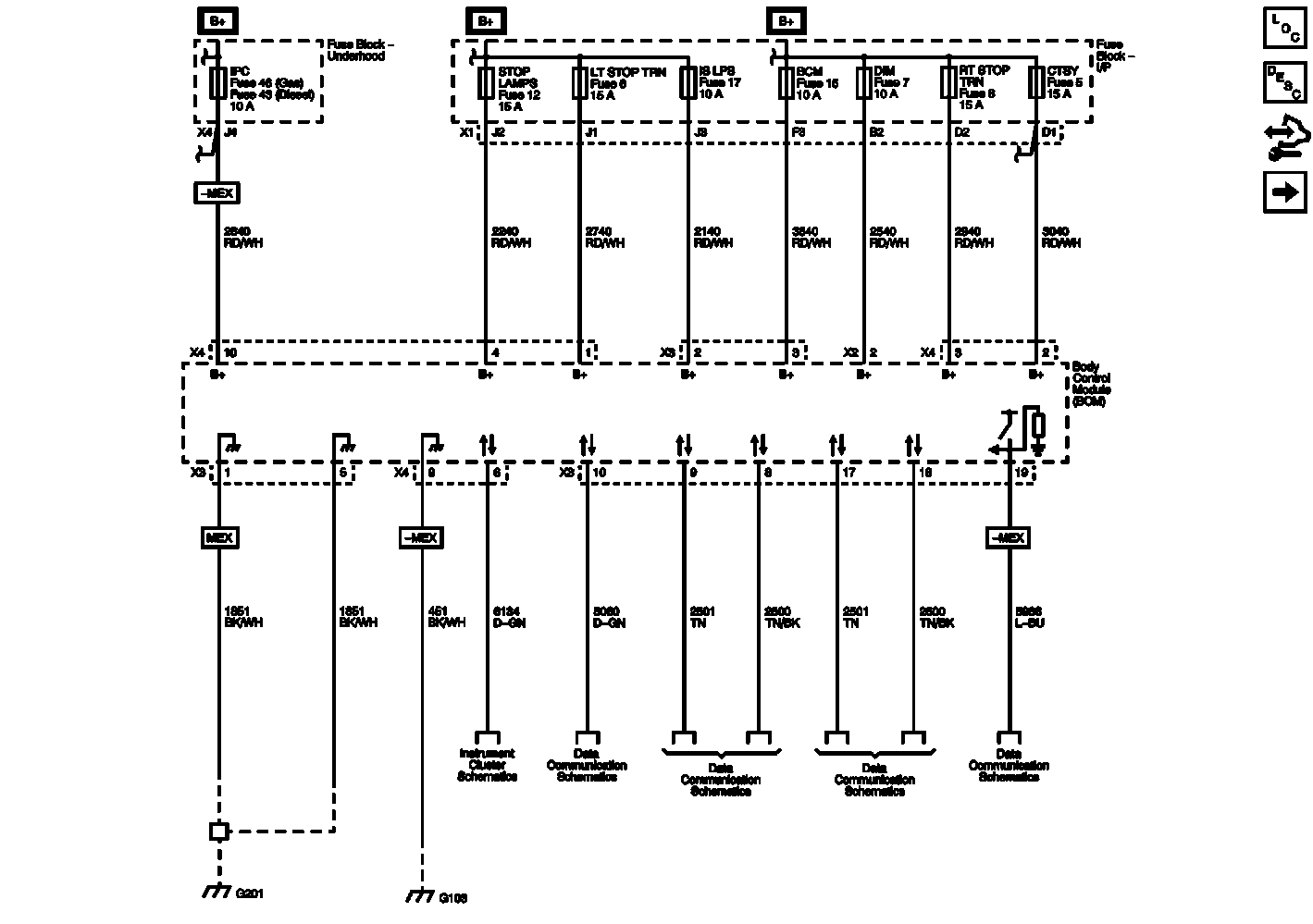

Fig 1: Module Power, Ground, and Serial Data References Wiring Schematic
