Liftgate Window Strut Replacement
Liftgate Window Strut Replacement

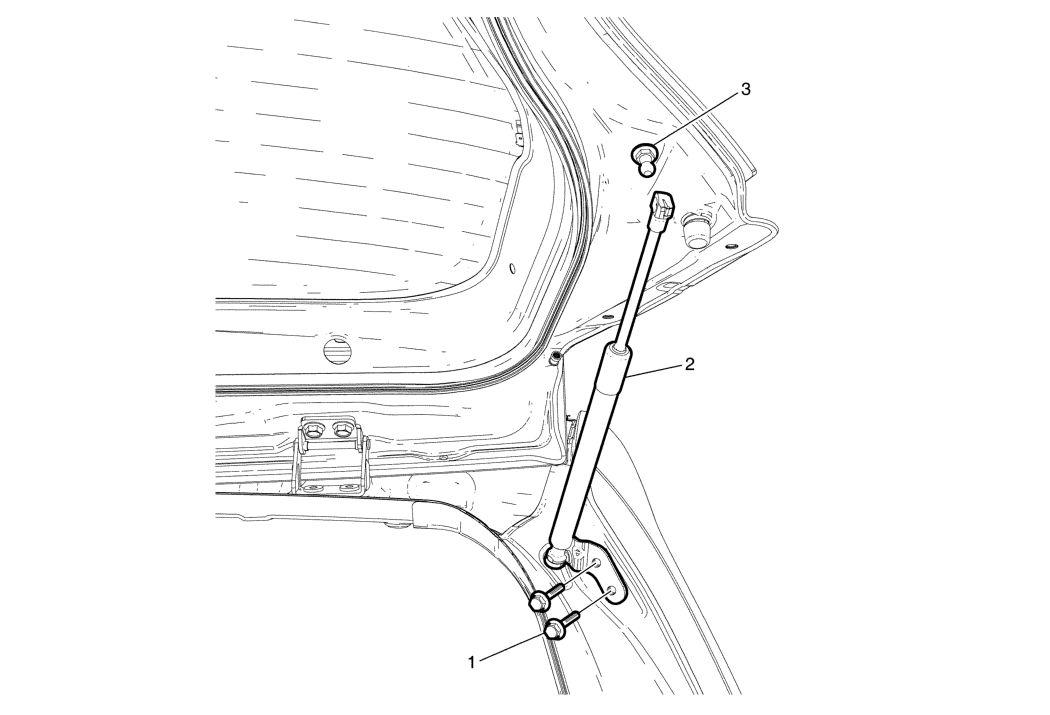

| Callout | Component Name |
|---|---|
|
WARNING:
When a lift gate hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury. |
|
| 1 | Liftgate Window Strut Bolt (Body) (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 25 N.m (18 lb ft) |
| 2 | Liftgate Window Strut |
| 3 | Liftgate Window Strut Securing Bolt (Door) (Qty: 1) Tighten 22 N.m (16 lb ft) |
