Accelerator Pedal Position Sensor Replacement
Accelerator Pedal Position Sensor Replacement

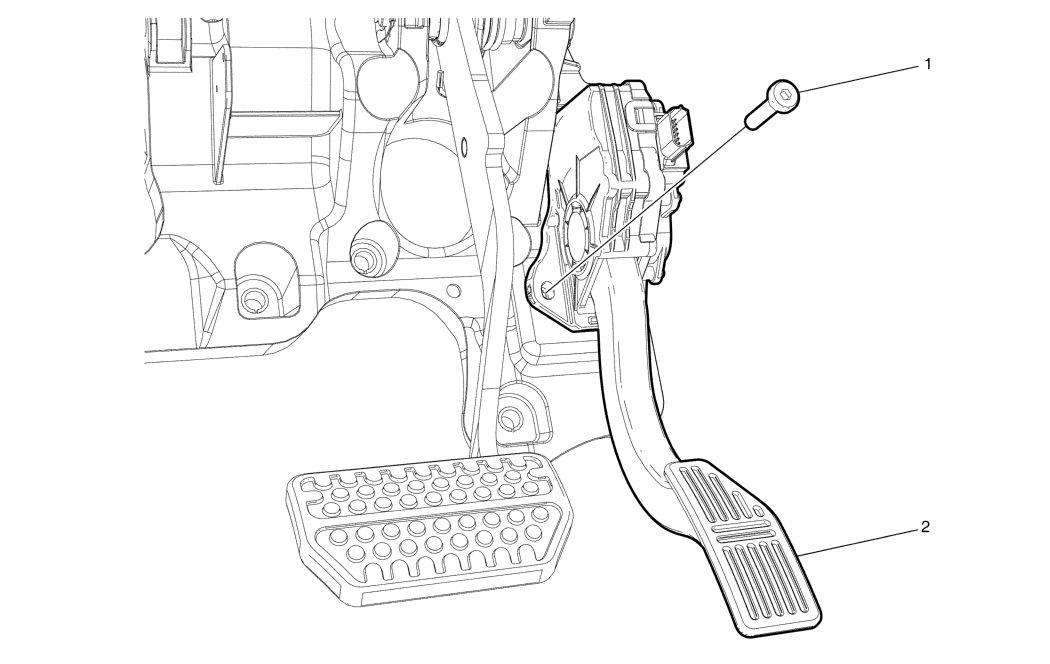

| Callout | Component Name |
|---|---|
| Preliminary Procedure Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . |
|
| 1 | Accelerator Pedal Position Sensor Fastener
CAUTION:
Refer to Fastener Caution . Tighten 6 (53 lb in) |
| 2 | Accelerator Pedal Position Sensor Procedure Disconnect the electrical wiring harness connector from accelerator pedal position sensor. |
