Front of Engine Components

Front of Engine Components

Items
1:  Q6 Camshaft Position Actuator Solenoid Valve Q6 Camshaft Position Actuator Solenoid Valve
2:  B23 Camshaft Position Sensor B23 Camshaft Position Sensor
3:  Q44 Engine Oil Pressure Control Solenoid Valve Q44 Engine Oil Pressure Control Solenoid Valve

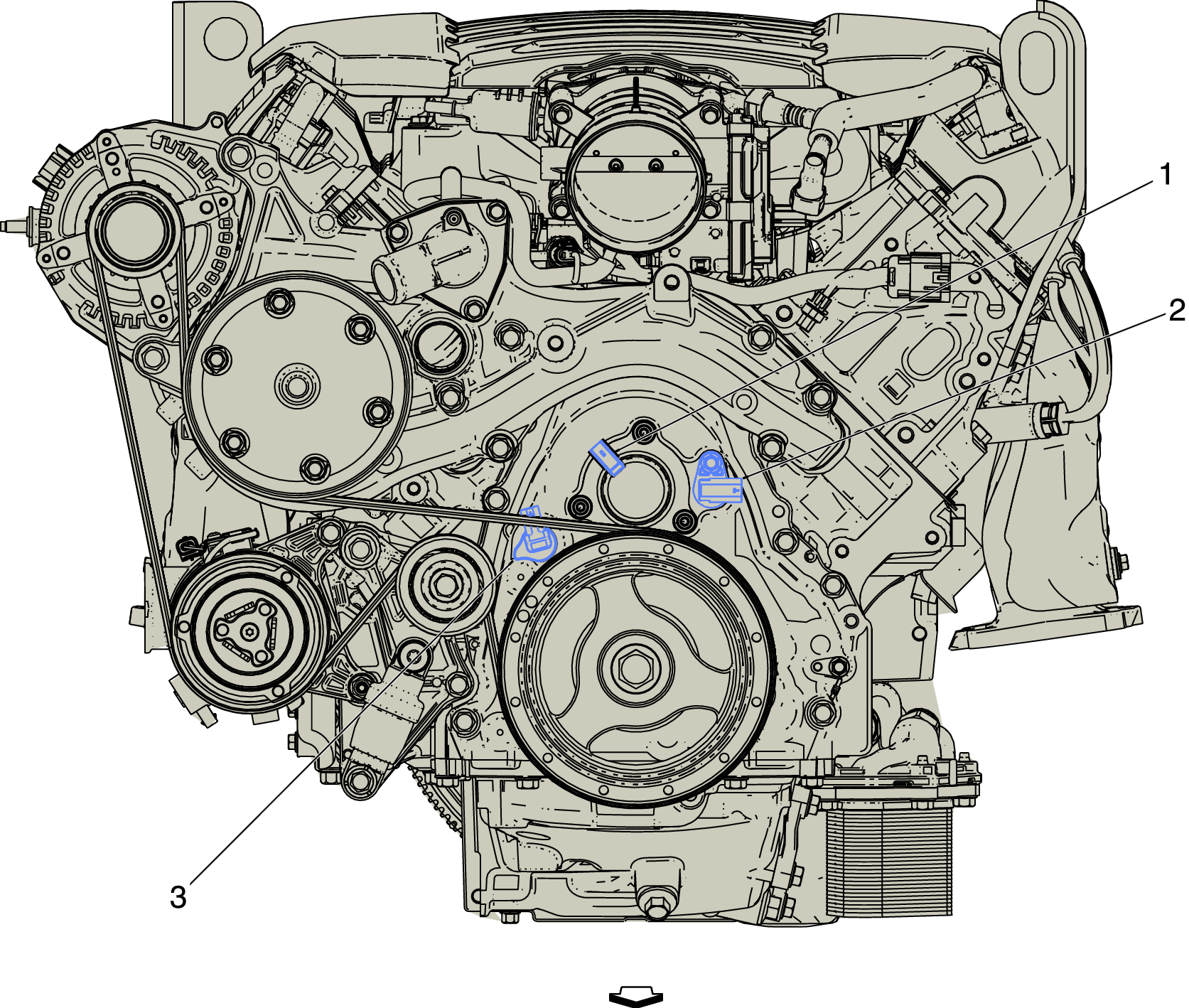

Fig 1: Front of Engine Components
GM3611067Courtesy of GENERAL MOTORS COMPANY
