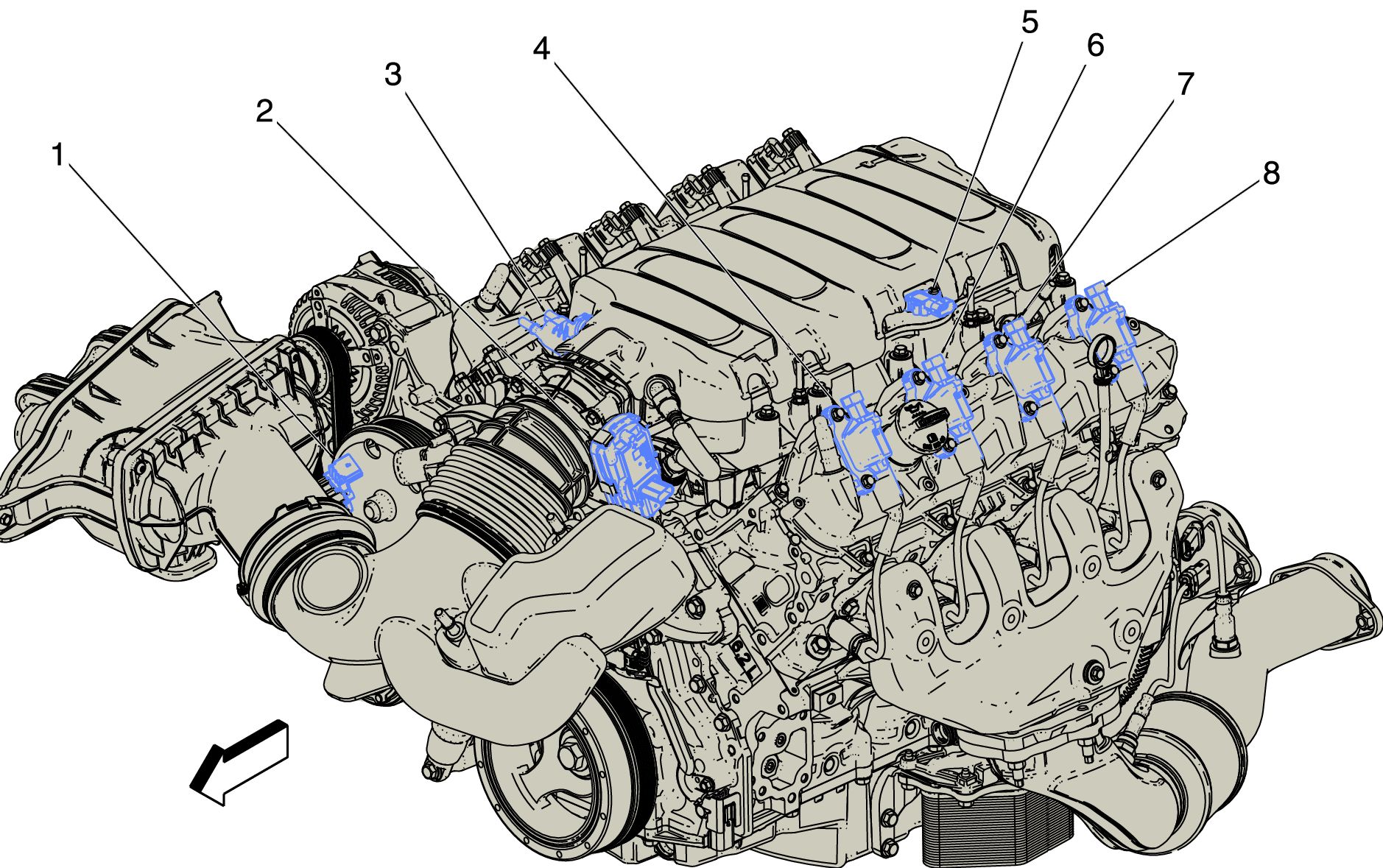

Left Side of Engine Components
Left Side of Engine Components
| Items |
|---|
| 1: B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor |
| 2: Q38 Throttle Body Q38 Throttle Body |
| 3: Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve |
| 4: T8A Ignition Coil 1 T8A Ignition Coil 1 |
| 5: B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor |
| 6: T8C Ignition Coil 3 T8C Ignition Coil 3 |
| 7: T8E Ignition Coil 5 T8E Ignition Coil 5 |
| 8: T8G Ignition Coil 7 T8G Ignition Coil 7 |
