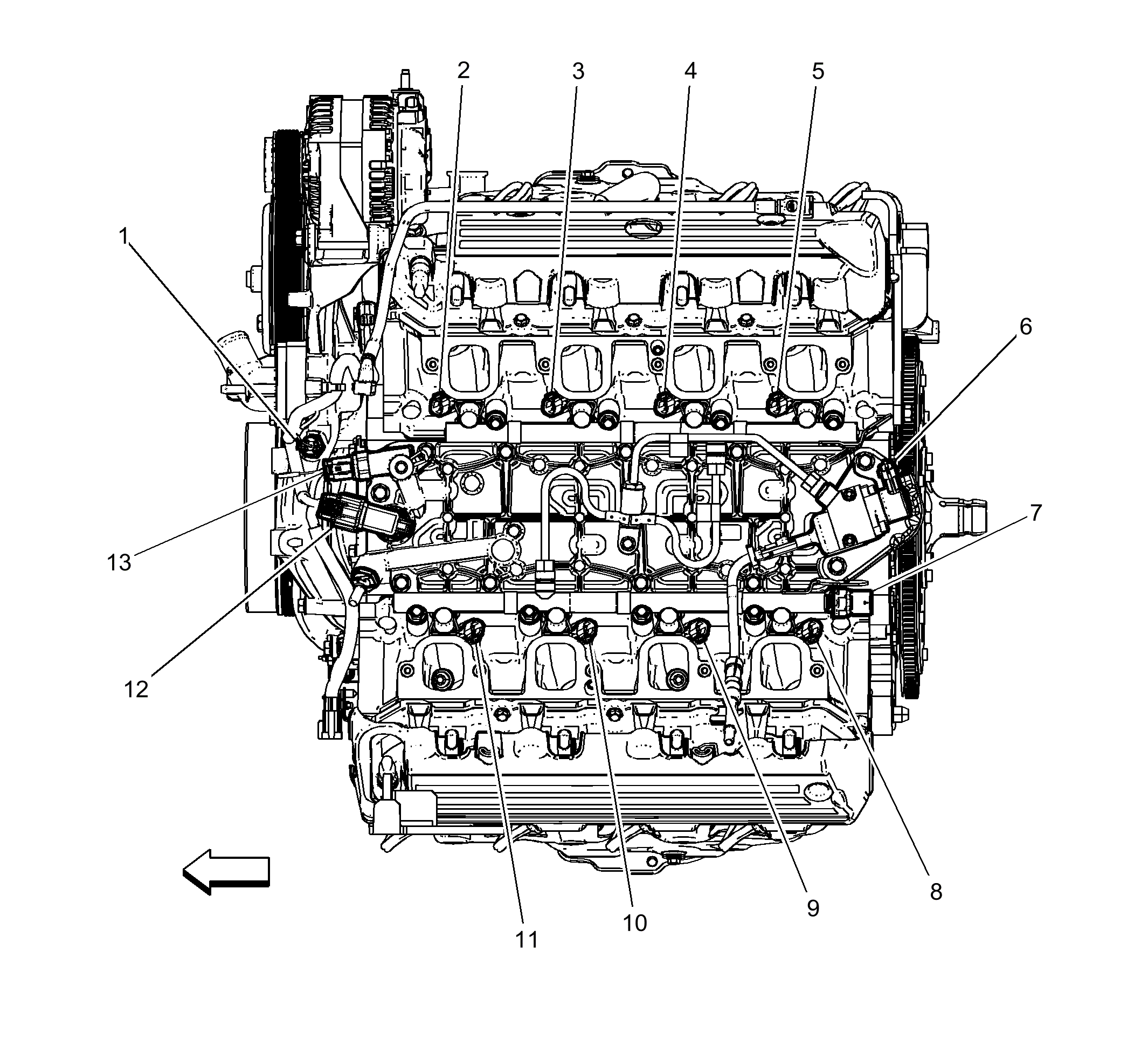

Top of Engine Components
Top of Engine Components
| Items |
|---|
| 1: B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor |
| 2: Q17B Fuel Injector 2 Q17B Fuel Injector 2 |
| 3: Q17D Fuel Injector 4 Q17D Fuel Injector 4 |
| 4: Q17F Fuel Injector 6 Q17F Fuel Injector 6 |
| 5: Q17H Fuel Injector 8 Q17H Fuel Injector 8 |
| 6: G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump |
| 7: B47B Fuel Rail Pressure Sensor Q2 A/C Compressor Clutch |
| 8: Q17G Fuel Injector 7 Q17G Fuel Injector 7 |
| 9: Q17E Fuel Injector 5 Q17E Fuel Injector 5 |
| 10: Q17C Fuel Injector 3 Q17C Fuel Injector 3 |
| 11: Q17A Fuel Injector 1 Q17A Fuel Injector 1 |
| 12: Q43 Valve Lifter Oil Manifold Assembly Q43 Valve Lifter Oil Manifold Assembly |
| 13: B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor |
