Engine Components (LGH)

Engine Components (LGH)

Items
1:  B75B Mass Air Flow/Intake Air Temperature Sensor
2:  K20 Engine Control Module (ECM)
3:  B1 A/C Refrigerant Pressure Sensor (C60)
4:  P13 Horn Assembly
5:  X50A Fuse Block - Underhood

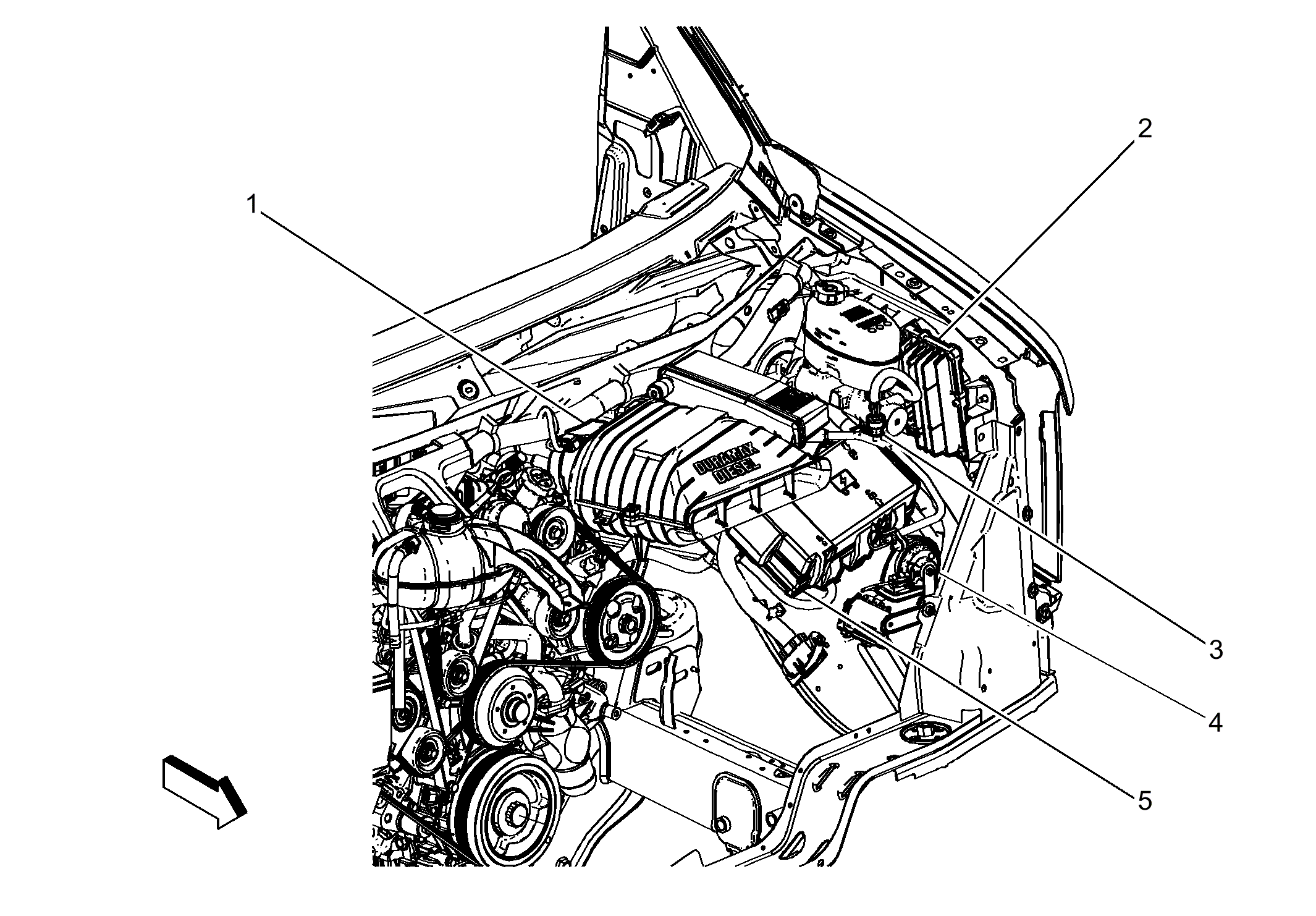

Fig 1: Engine Components (LGH)
GM2831221Courtesy of GENERAL MOTORS COMPANY
