Accessory AC and DC Power Control Module Replacement

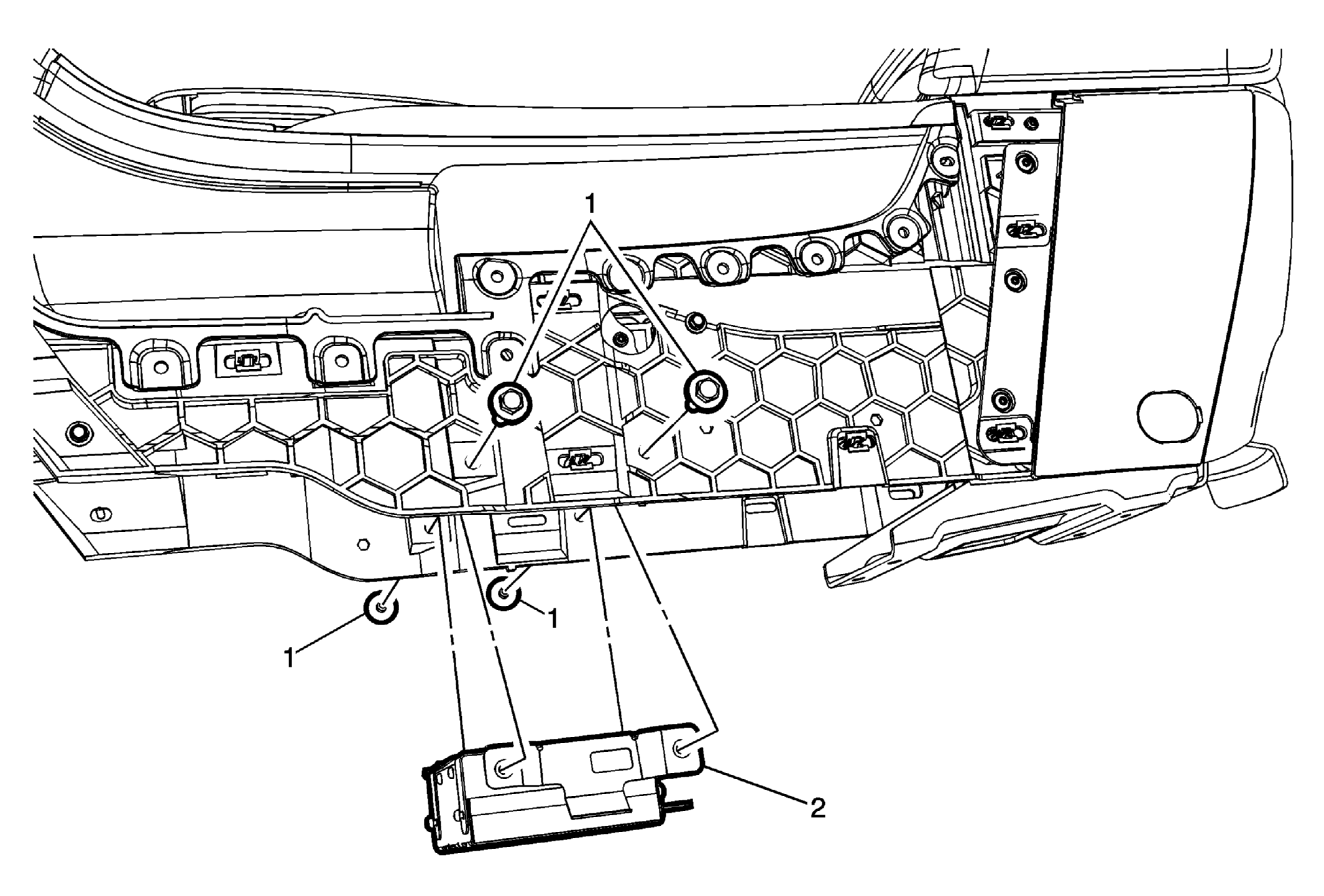

Fig 1: Accessory AC and DC Power Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (Without Start/Stop) , Battery Negative Cable Disconnection and Connection (With Start/Stop) . Remove the front floor console. Refer to Front Floor Console Assembly Replacement .
1	Accessory AC and DC Power Control Module Fastener (Qty: 4)
2	Accessory AC and DC Power Control Module Procedure Disconnect the electrical connector. Transfer components as necessary. Program the accessory AC and DC power control module. Refer to Control Module References for programming and set up.

Callout

Component Name

Preliminary Procedures

Accessory AC and DC Power Control Module Fastener (Qty: 4)

Accessory AC and DC Power Control Module

Procedure

Disconnect the electrical connector.
Transfer components as necessary.
Program the accessory AC and DC power control module. Refer to Control Module References for programming and set up.
