Steering Wheel Components

Steering Wheel Components

Items
1:  S70L Steering Wheel Controls Switch - Left S70L Steering Wheel Controls Switch - Left
2:  F107 Steering Wheel Air Bag F107 Steering Wheel Air Bag X1F107 Steering Wheel Air Bag X2
3:  S70R Steering Wheel Controls Switch - Right S70R Steering Wheel Controls Switch - Right
4:  S33 Horn Switch S33 Horn Switch

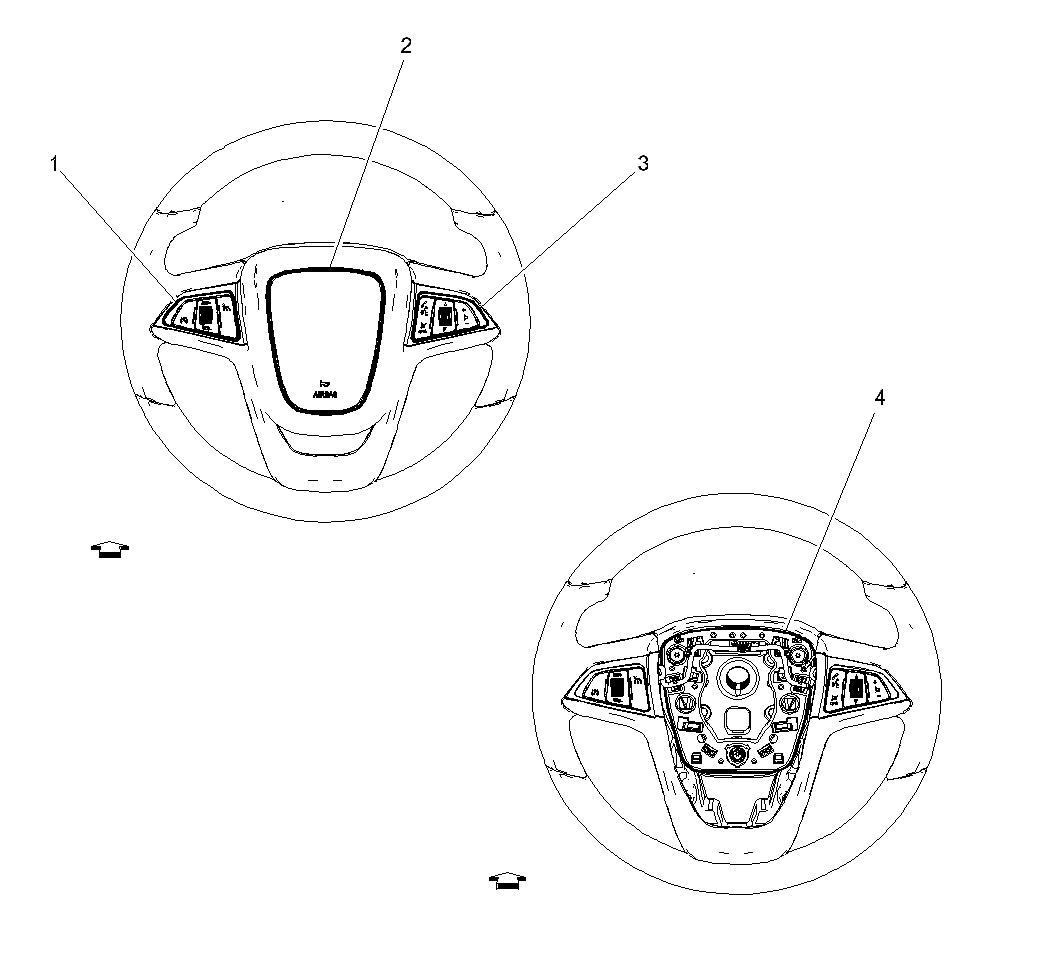

Fig 1: Steering Wheel Components
GM2673701Courtesy of GENERAL MOTORS COMPANY
