Remote Control Door Lock Receiver Replacement

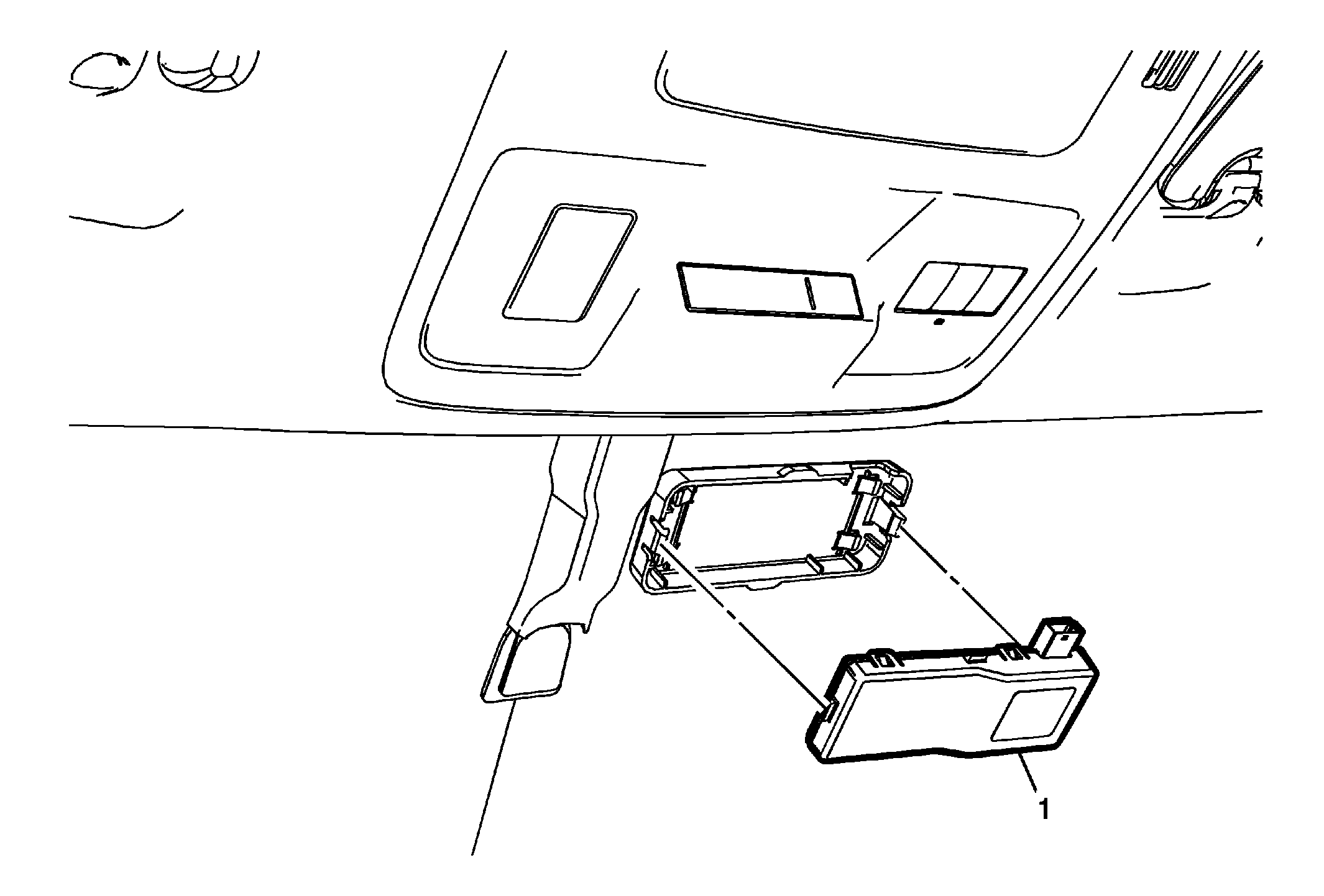

Fig 1: Remote Control Door Lock Receiver
GM2716355Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Remote Control Door Lock Receiver

Procedure

  1. Remove the receiver trim cover.
  2. Disconnect the electrical connector.
  3. Unsnap the receiver from the windshield bracket.
  4. For programming and set up, refer to Control Module References
