Vehicle Stability Control System Switch Replacement

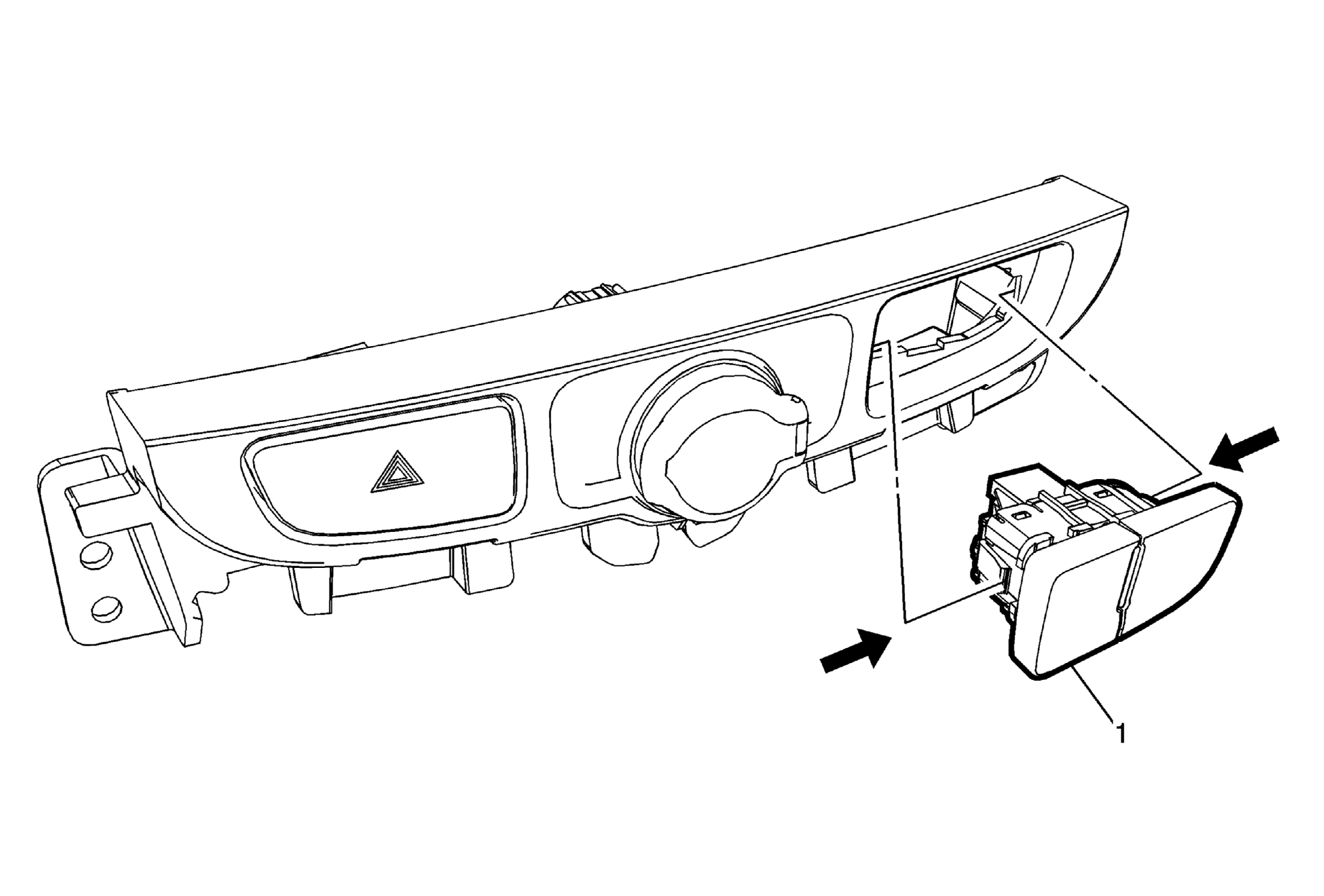

Fig 1: Vehicle Stability Control System Switch
GM3462637Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the instrument panel trim plate. Refer to Instrument Panel Trim Plate Replacement .
1 Vehicle Stability Control System Switch
Procedure
Depress tabs on the switch and remove from trim plate.
