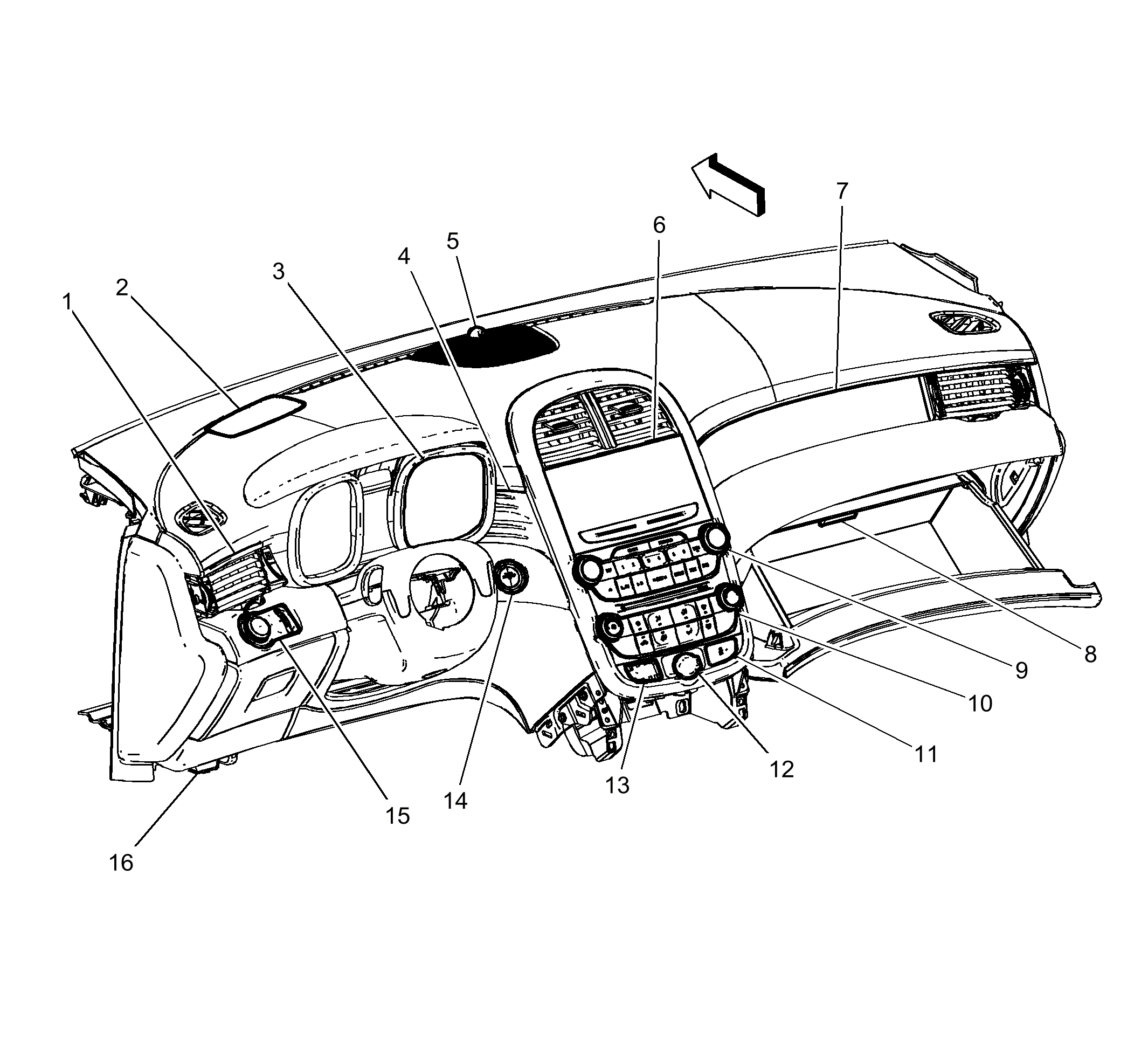

Front of Instrument Panel Components
Front of Instrument Panel Components
| Items |
|---|
| 1: E1G Accent Lamp - Left Instrument Panel E1G Accent Lamp - Left Instrument Panel |
| 2: P43 Collision Alert Indicators P43 Collision Alert Indicators |
| 3: P16 Instrument Cluster P16 Instrument Cluster |
| 4: E1GA Accent Lamp - Left Middle Instrument Panel E1GA Accent Lamp - Left Middle Instrument Panel |
| 5: B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor |
| 6: P17 Info Display Module P17 Info Display Module UFU or UHQP17 Info Display Module (UFU/UHQ) |
| 7: E1H Accent Lamp - Right Instrument Panel E1H Accent Lamp - Right Instrument Panel |
| 8: E27 Instrument Panel Compartment Lamp E27 Instrument Panel Compartment Lamp |
| 9: A22 Radio Controls A22 Radio Controls |
| 10: A26 HVAC Controls A26 HVAC Controls |
| 11: S26 Hazard Warning Switch S26 Hazard Warning Switch |
| 12: X80G Accessory Power Receptacle - Instrument Panel X80G Accessory Power Receptacle - Instrument Panel |
| 13: S48A Multifunction Switch - Instrument Panel S48A Multifunction Switch - Instrument Panel |
| 14: S38 Ignition Mode Switch (BTM) S38 Ignition Mode Switch |
| 15: S30 Headlamp Switch S30 Headlamp Switch |
| 16: X84 Data Link Connector X84 Data Link Connector |
