Steering Column Components

Steering Column Components

Items
1: S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch
2: X85 Steering Wheel Air Bag Coil X85 Steering Wheel Air Bag Coil X1X85 Steering Wheel Air Bag Coil X2X85 Steering Wheel Air Bag Coil X3
3: S82 Windshield Wiper/Washer Switch S82 Windshield Wiper/Washer Switch
4: S39 Ignition Switch (without BTM) S39 Ignition Switch
5: M93 Key Capture Solenoid Actuator (without BTM) M93 Key Capture Solenoid Actuator
6: K89 Immobilizer Control Module (BTM Or without BTM) K89 Immobilizer Control Module (BTM)
7: B99 Steering Wheel Angle Sensor (FX3) B99 Steering Wheel Angle Sensor

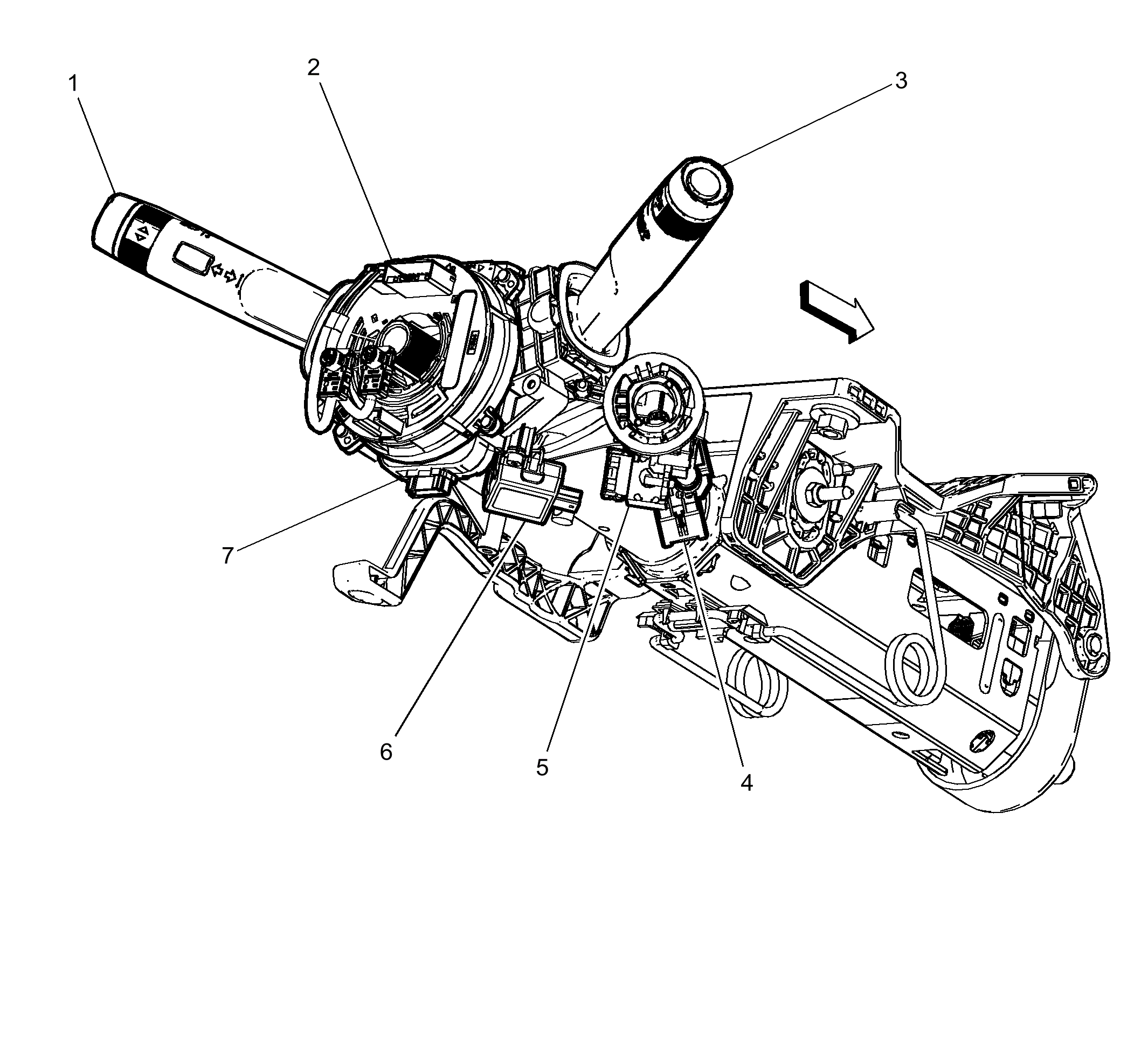

Fig 1: Steering Column Components
GM3708366Courtesy of GENERAL MOTORS COMPANY
