Steering Wheel Components

Steering Wheel Components

Items
1: S70L Steering Wheel Controls Switch - Left S70L Steering Wheel Controls Switch - Left
2: F107 Steering Wheel Air Bag F107 Steering Wheel Air Bag X1F107 Steering Wheel Air Bag X2
3: S70R Steering Wheel Controls Switch - Right S70R Steering Wheel Controls Switch - Right
4: S33 Horn Switch S33 Horn Switch

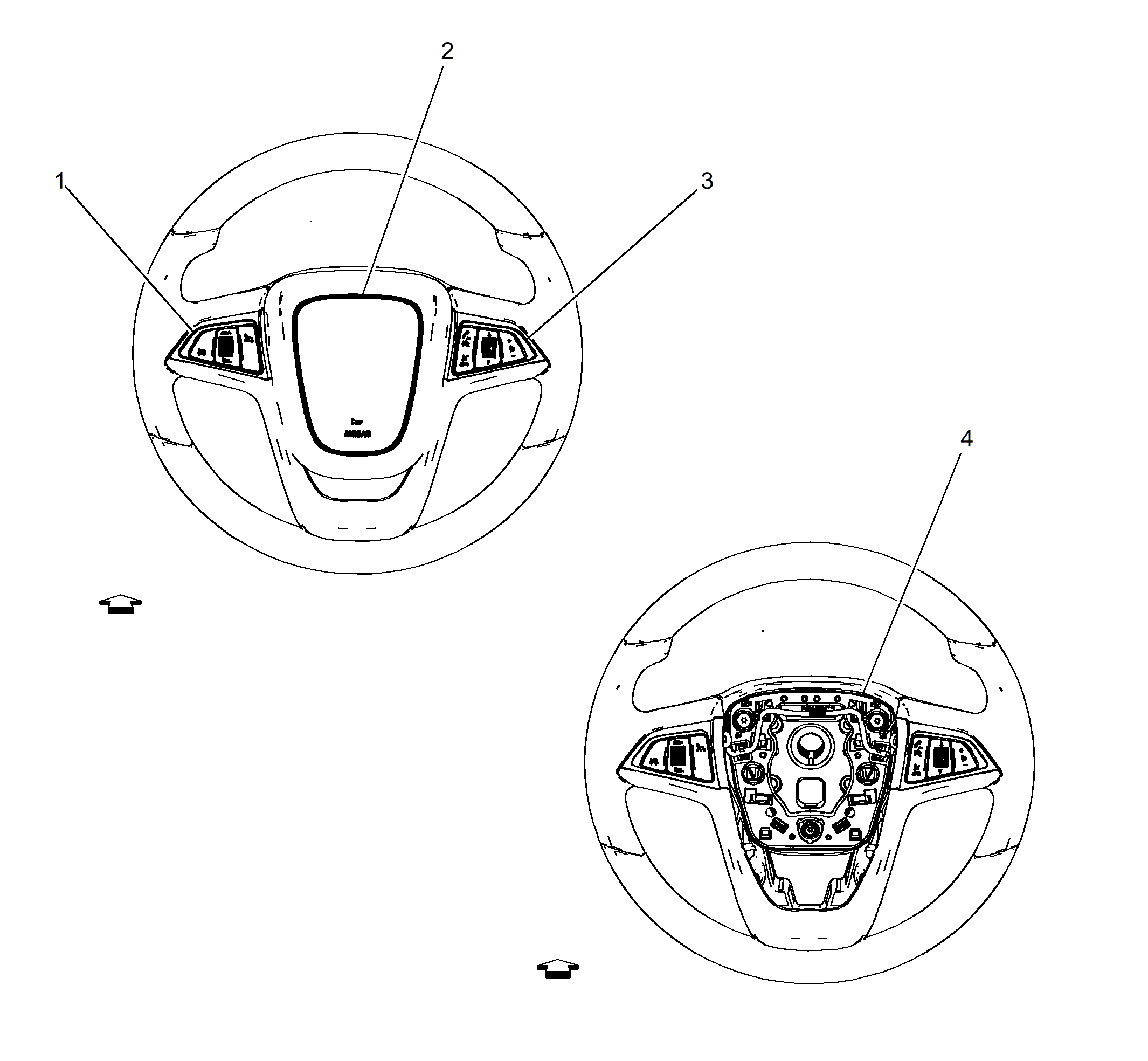

Fig 1: Steering Wheel Components
GM3708368Courtesy of GENERAL MOTORS COMPANY
