Installation Procedure

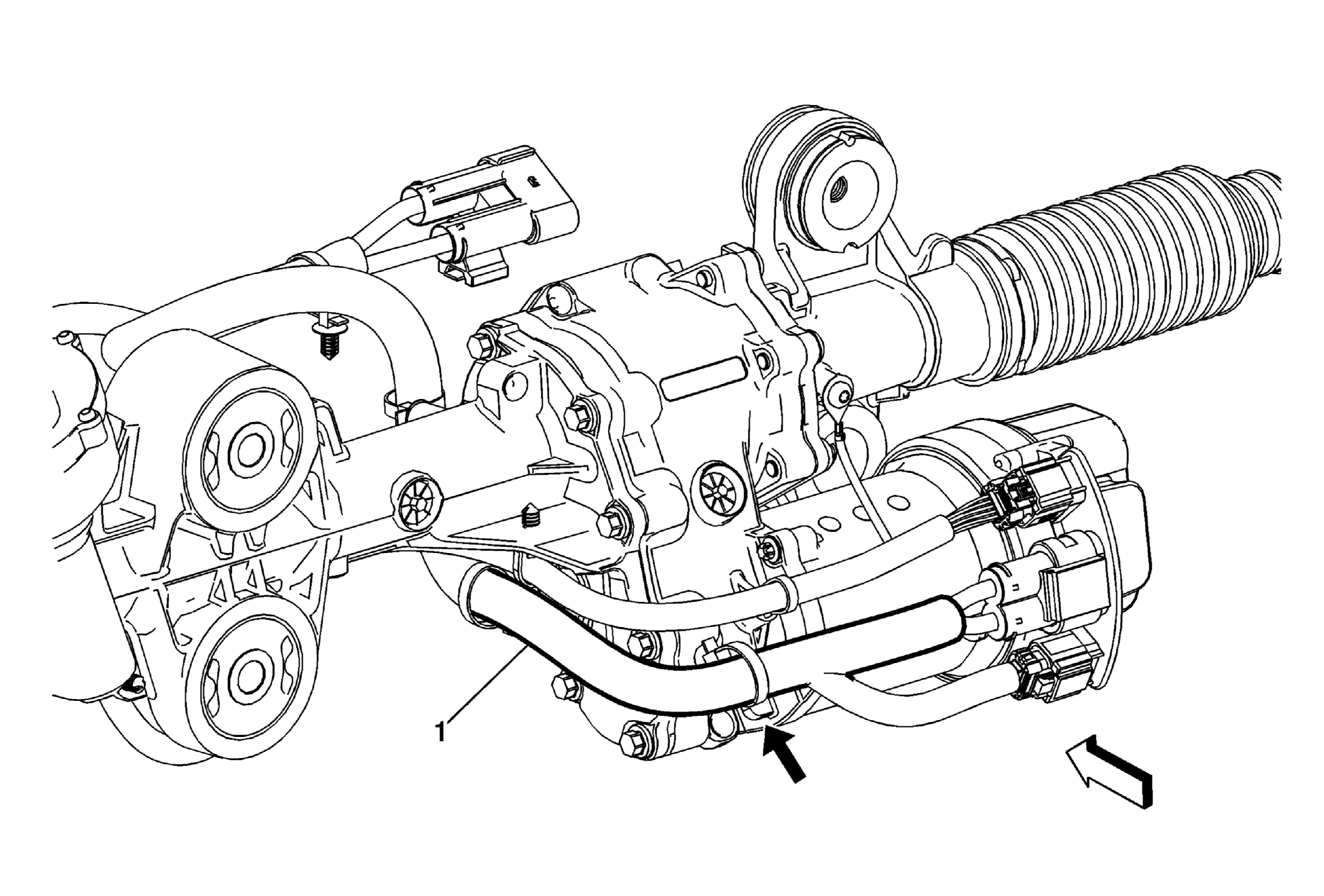

    Fig 1: Power Steering Control Module Wiring Harness
    GM3332639Courtesy of GENERAL MOTORS COMPANY
  1. Position the wiring harness (1) on the rear of the steering gear.
  2. Connect the wiring harness connectors to the steering gear.
    3. NOTE:

    Ensure the position and orientation of each wiring harness retainer before securing them.

  3. Install the wiring harness retainers on the rear of the steering gear where previously noted.

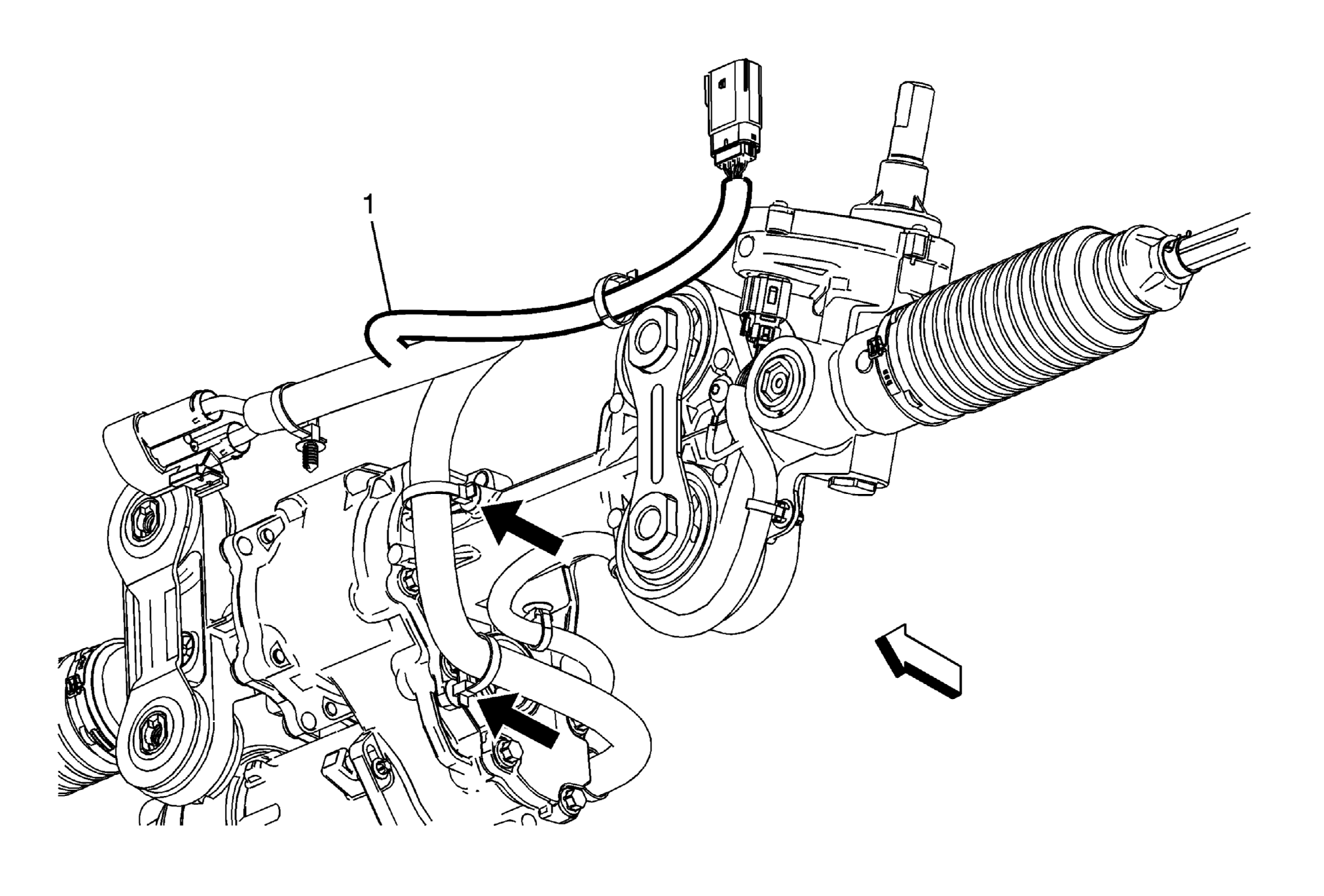

    4. Fig 2: Wiring Harness Retainer
    GM3332601Courtesy of GENERAL MOTORS COMPANY
  4. Position the wiring harness (1) on the front of the steering gear.
  5. Install the wiring harness retainers on the front of the steering gear where previously noted.
  6. Install Steering Gear Electric Belt Drive Rack and Pinion Steering Gear Replacement
