Serial Data Gateway Module Replacement

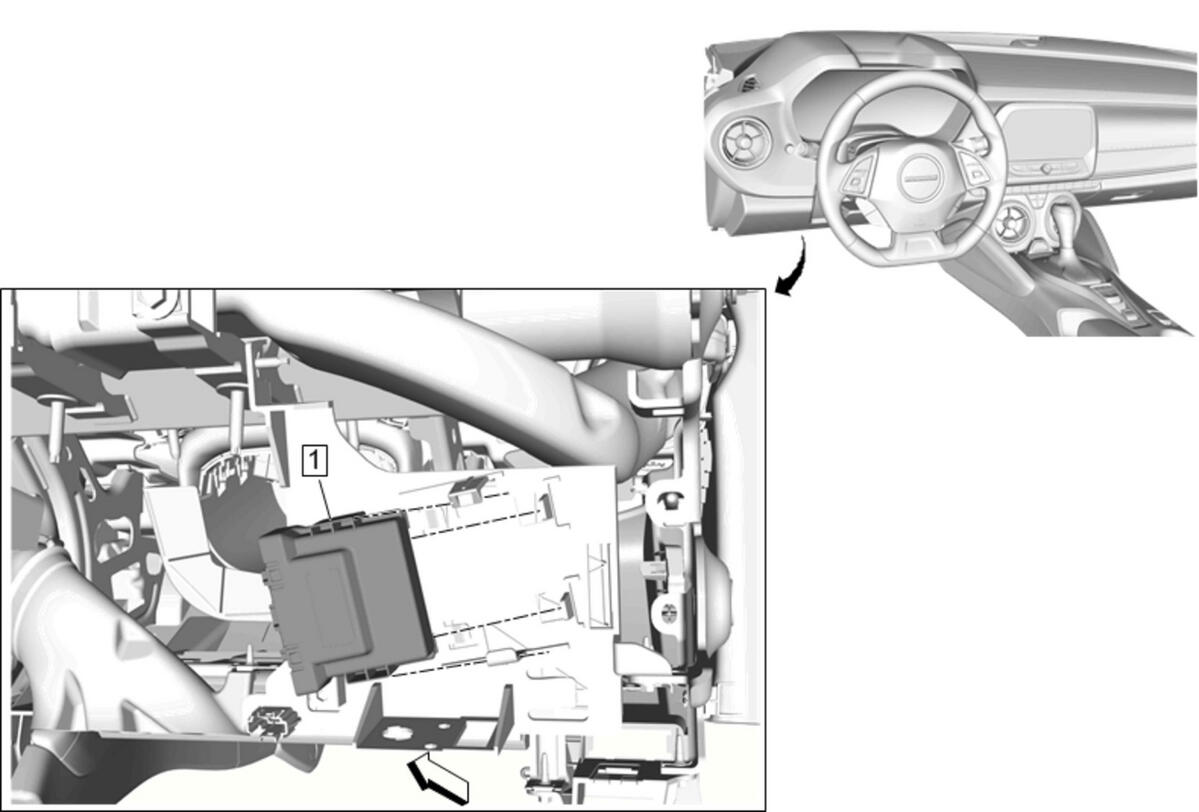

Fig 1: Serial Data Gateway Module
GM4196210Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Serial Data Gateway Module

Procedure

  1. Disconnect the electrical connectors.
  2. Using an appropriate tool, release the body control module bracket tab and slide module out of the bracket.
  3. Control Module References for programming and set-up information, if required.
