Engine Compartment Components
Engine Compartment Components

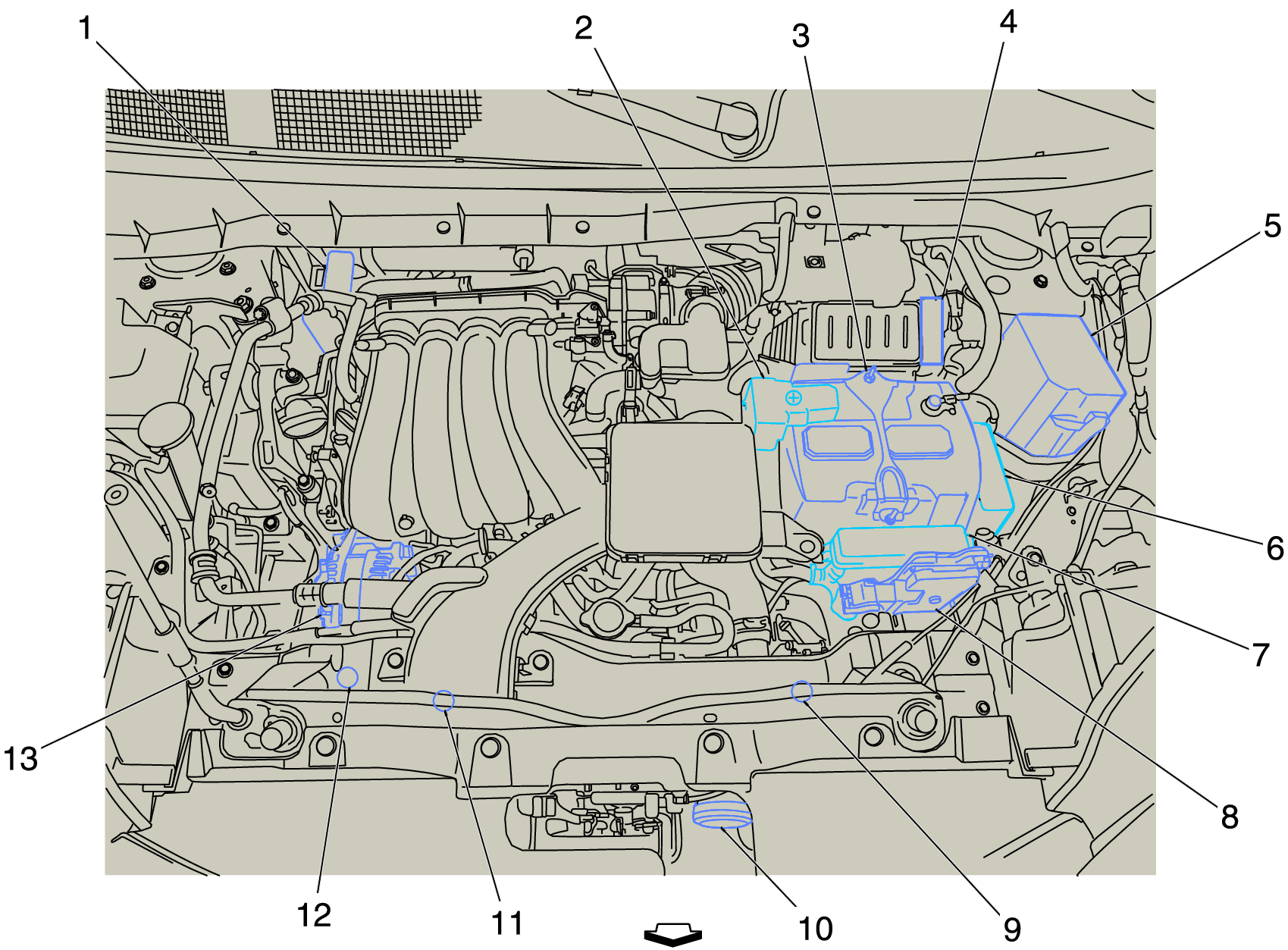

| Items | Callout |
|---|---|
| K17 Electronic Brake Control Module Connector View | (1) |
| X500 Connector View | (2) |
| C1 Battery | (3) |
| K20 Engine Control Module Connector View , Connector View , and Connector View | (4) |
| X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1 , Connector View , X50A Fuse Block - Underhood X3 , X50A Fuse Block - Underhood X4 , X50A Fuse Block - Underhood X5 , X50A Fuse Block - Underhood X6 , or X50A Fuse Block - Underhood X7 | (5) |
| X70A Relay Block - Underhood Connector View | (6) |
| X50B Fuse Block - Underhood Auxiliary Connector View | (7) |
| K71 Transmission Control Module Connector View | (8) |
| G10L Cooling Fan Motor - Left Connector View | (9) |
| P12 Horn Connector View , and Connector View | (10) |
| G10R Cooling Fan Motor - Right Connector View | (11) |
| B1 A/C Refrigerant Pressure Sensor Connector View | (12) |
| G13 Generator Connector View , and Connector View | (13) |
