Interior HVAC Components

Interior HVAC Components

Items
1. M8 Blower Motor
2. K8 Blower Motor Control Module K8 Blower Motor Control Module X2

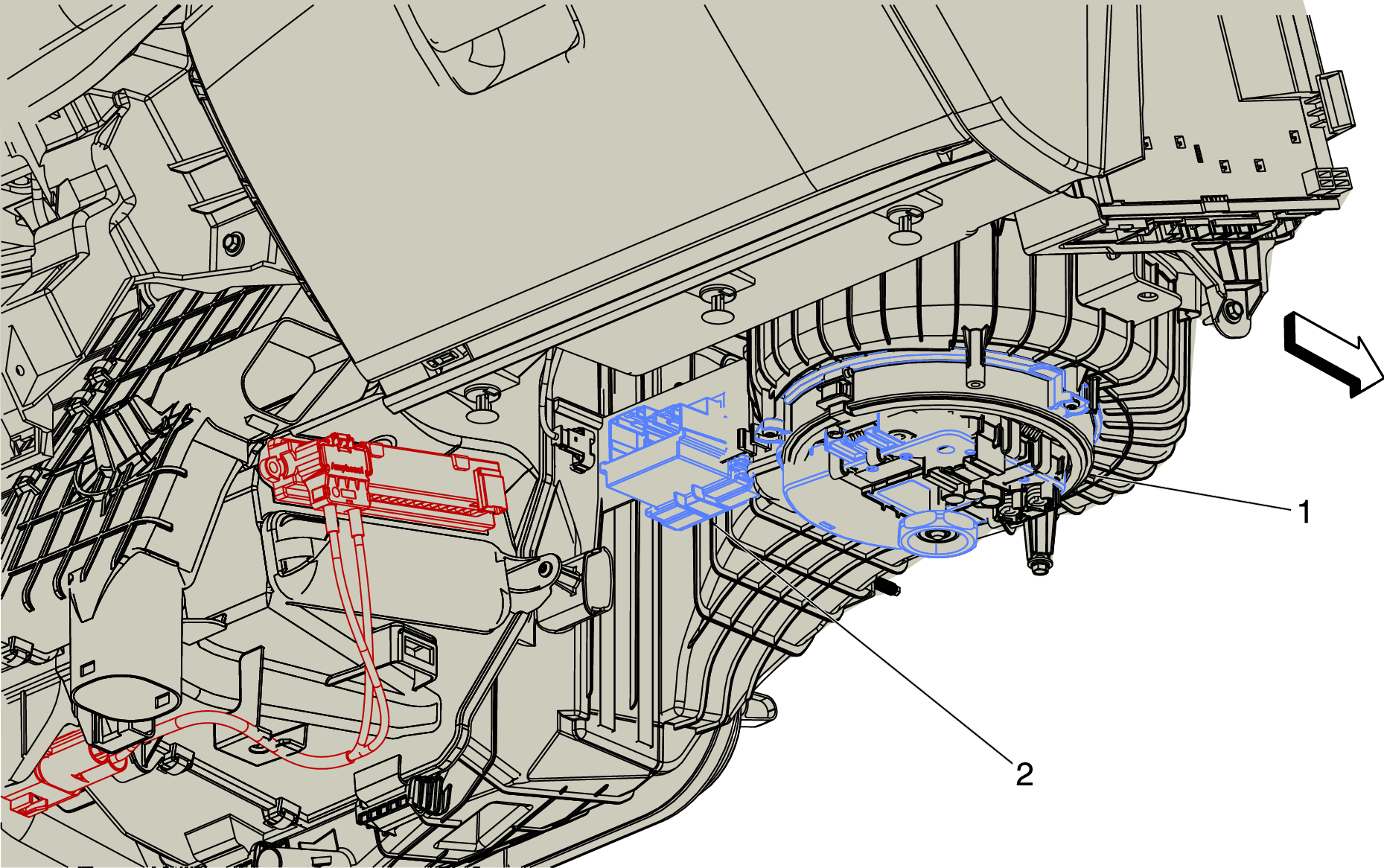

Fig 1: Interior HVAC Components
GM3752758Courtesy of GENERAL MOTORS COMPANY
