Accessory AC and DC Power Control Module Replacement

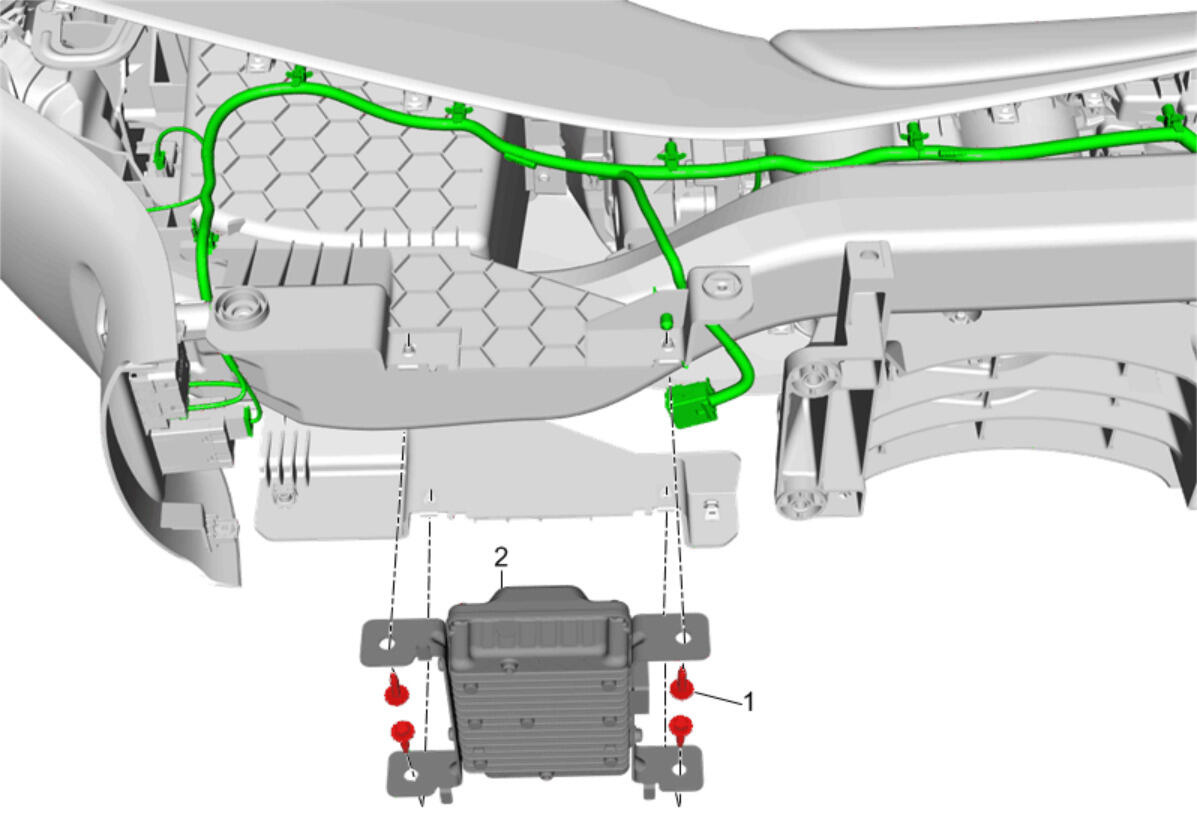

Fig 1: Accessory AC and DC Power Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Battery Negative Cable Disconnection and Connection (with KL9)Battery Negative Cable Disconnection and Connection (without KL9) Front Floor Console Replacement Front Floor Console Extension Panel Replacement
1	Accessory AC and DC Power Control Module Fastener (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 1 N.m (9 lb in)
2	Accessory AC and DC Power Control Module Procedure Transfer components as necessary. Control Module References for programming and set-up information, if required.

Callout

Component Name

Preliminary Procedures

Accessory AC and DC Power Control Module Fastener (Qty: 4)

CAUTION:

Tighten
1 N.m (9 lb in)

Accessory AC and DC Power Control Module

Procedure
