Installation Procedure

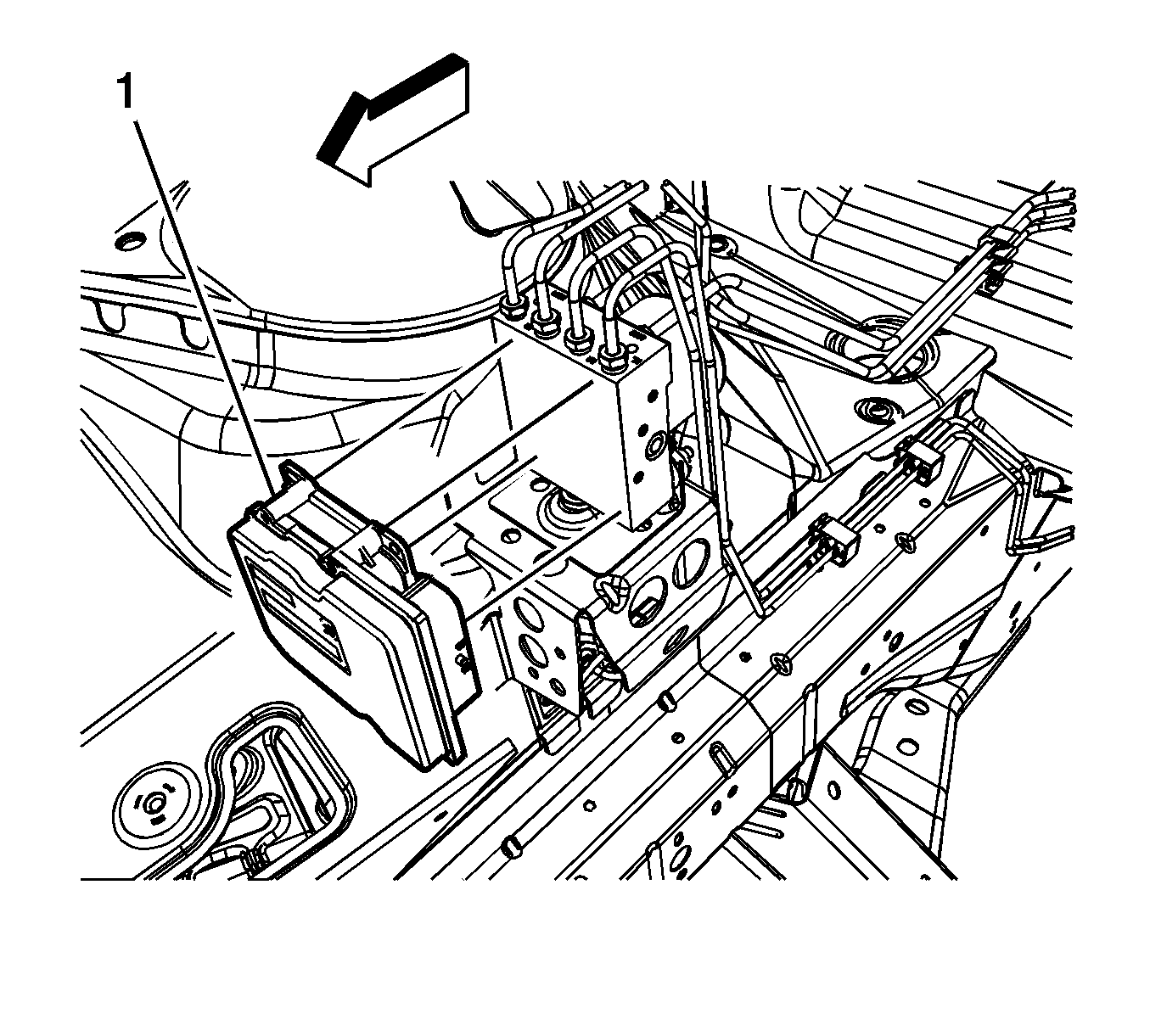

    Fig 1: EBCM & Brake Pressure Modulator Valve
    GM2196939Courtesy of GENERAL MOTORS COMPANY
  1. Clean the sealing surfaces of the EBCM and the BPMV with denatured alcohol and allow to dry.
  2. Install the EBCM (1) to the BPMV.

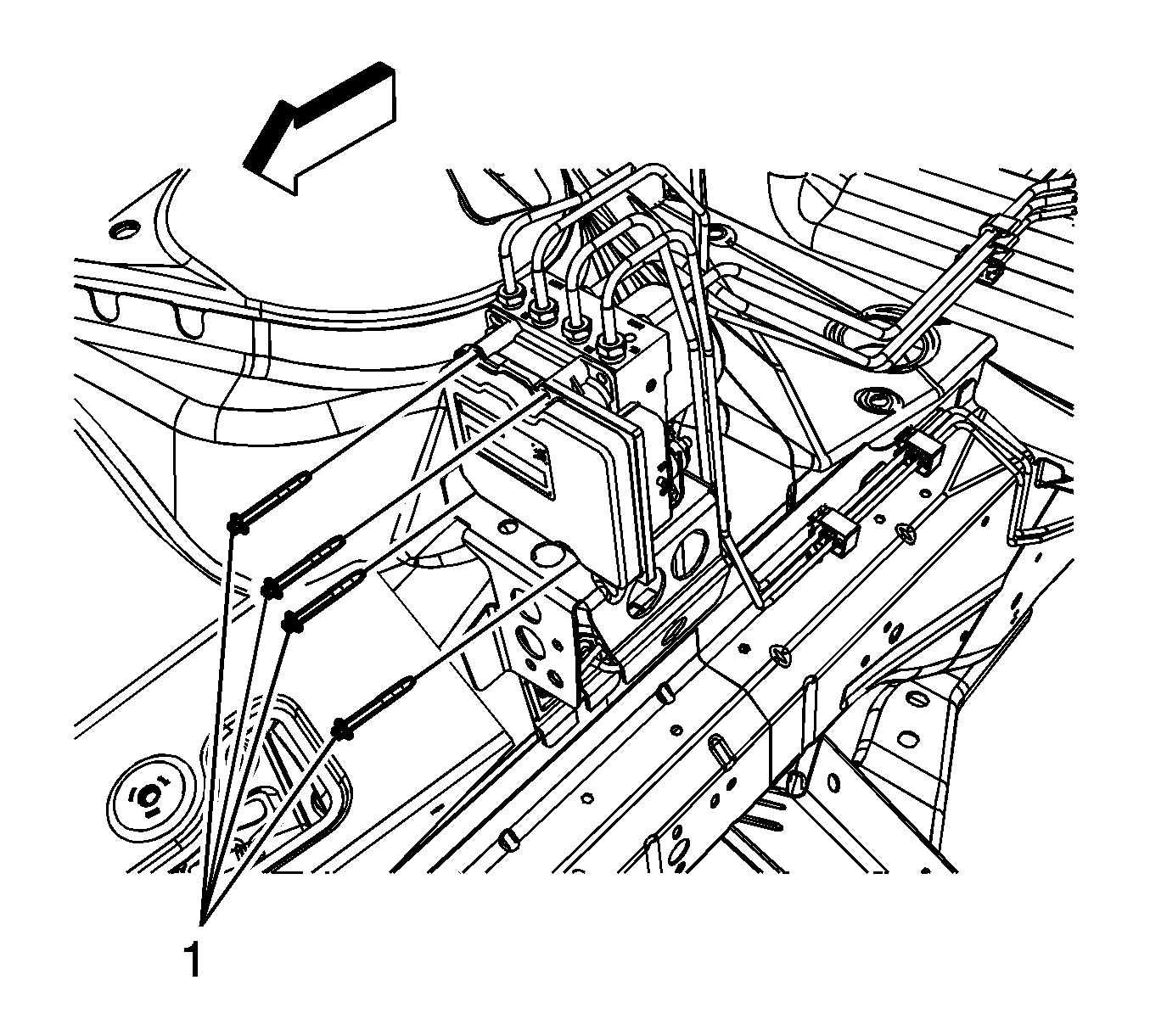

    3. Fig 2: Electronic Brake Control Module
    GM2196936Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install the EBCM bolts (1) and tighten in a cross pattern to 3 N.m (27 lb in).
  4. Connect the EBCM electrical connector.
  5. Program the EBCM. Refer to Control Module References .
  6. Perform the Diagnostic System Check - Vehicle .
