Accelerator Pedal Position Sensor Replacement

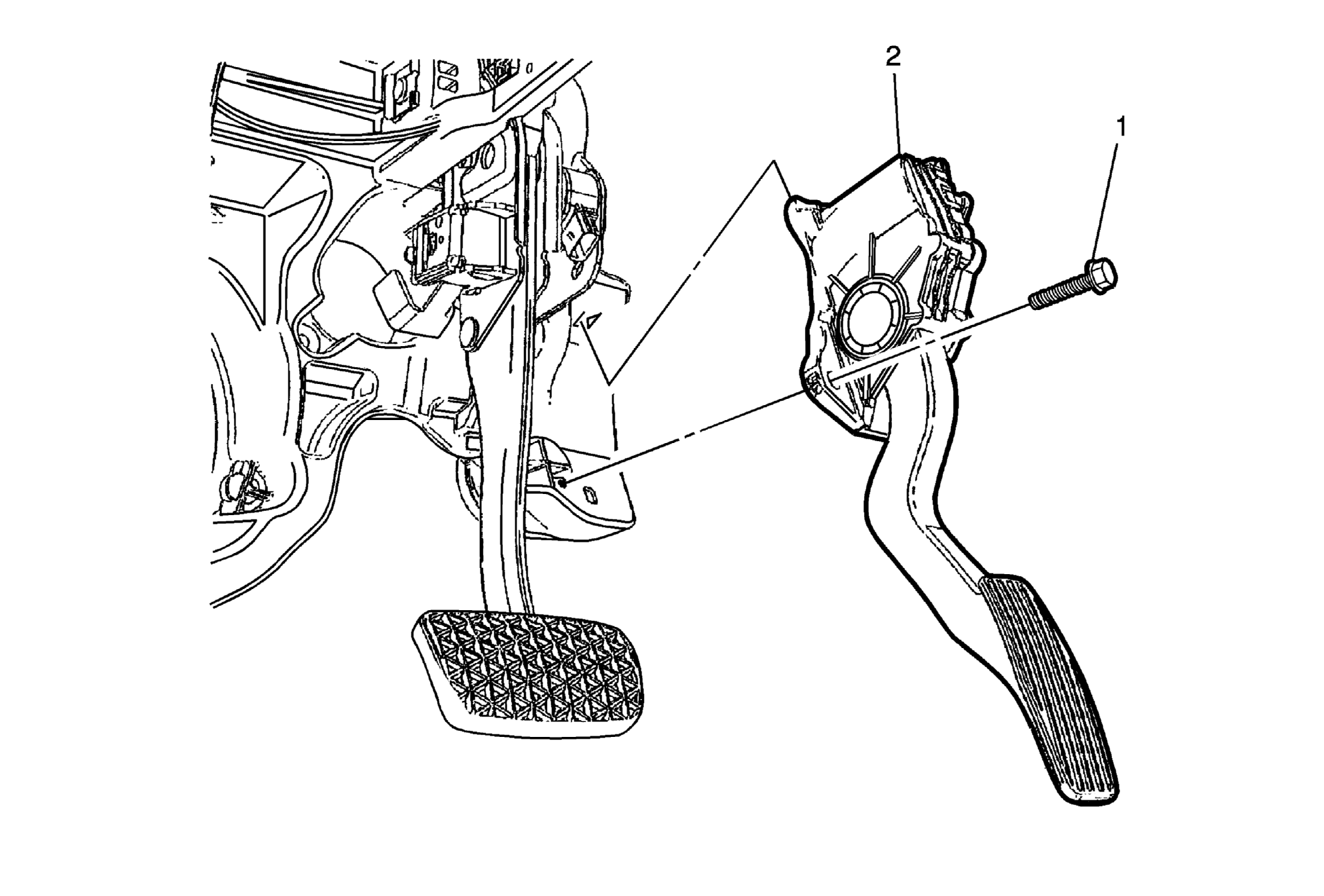

Fig 1: Accelerator Pedal Position Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the instrument panel lower trim panel insulator right side. Refer to Instrument Panel Lower Trim Panel Insulator Replacement - Right Side .
1	Accelerator Pedal Position Sensor Bolt CAUTION: Refer to Fastener Caution Tighten  9 N.m (80 lb in)
2	Accelerator Pedal Position Sensor Procedure  Disconnect the electrical connector.
