Removal Procedure

  1. Remove the brake pressure modulator valve (BPMV) assembly. Refer to Brake Pressure Modulator Valve Replacement .

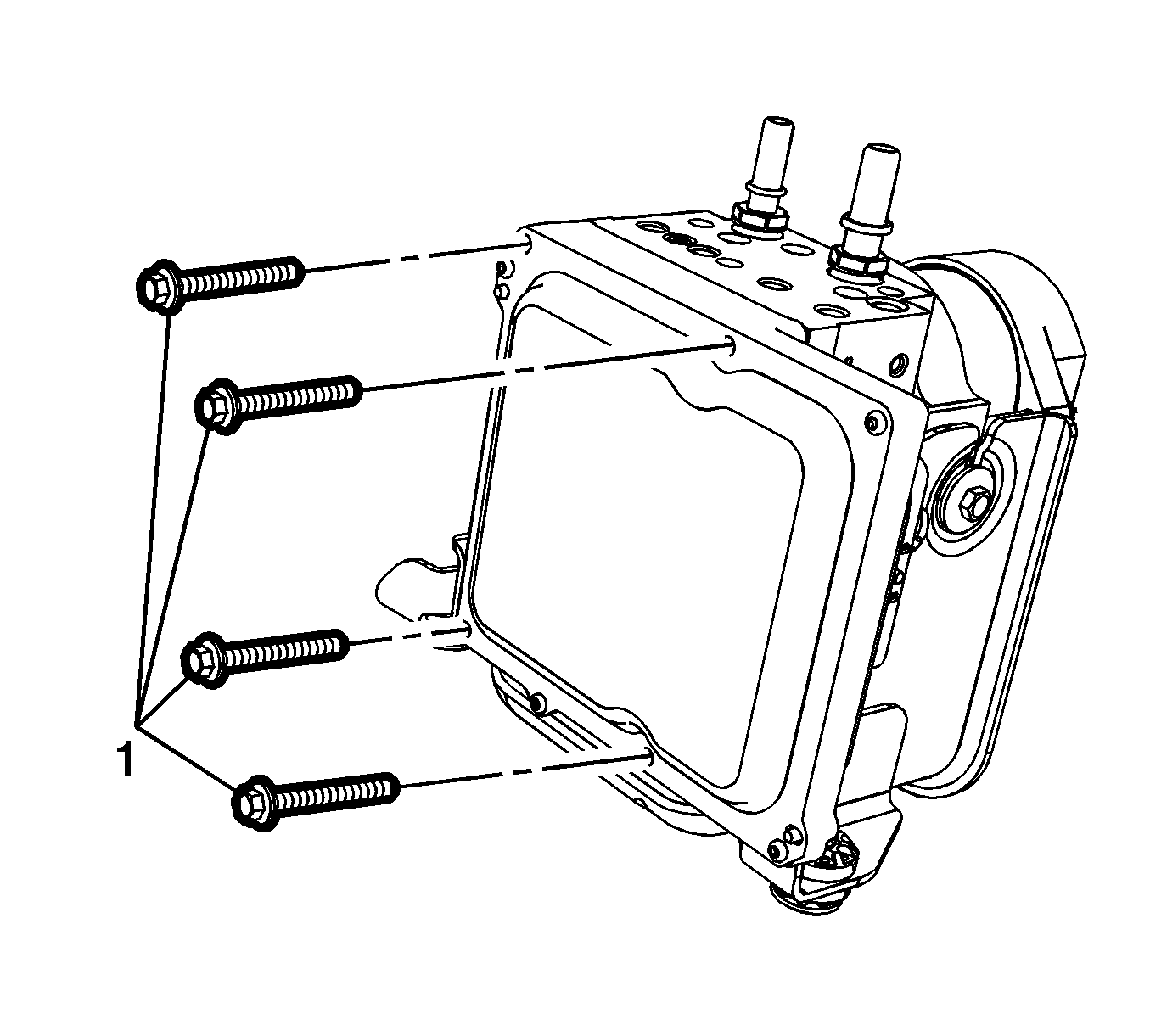

    2. Fig 1: Electronic Brake Control Module (EBCM) Bolts
    GM3226886Courtesy of GENERAL MOTORS COMPANY
  2. Remove the electronic brake control module (EBCM) bolts (1).

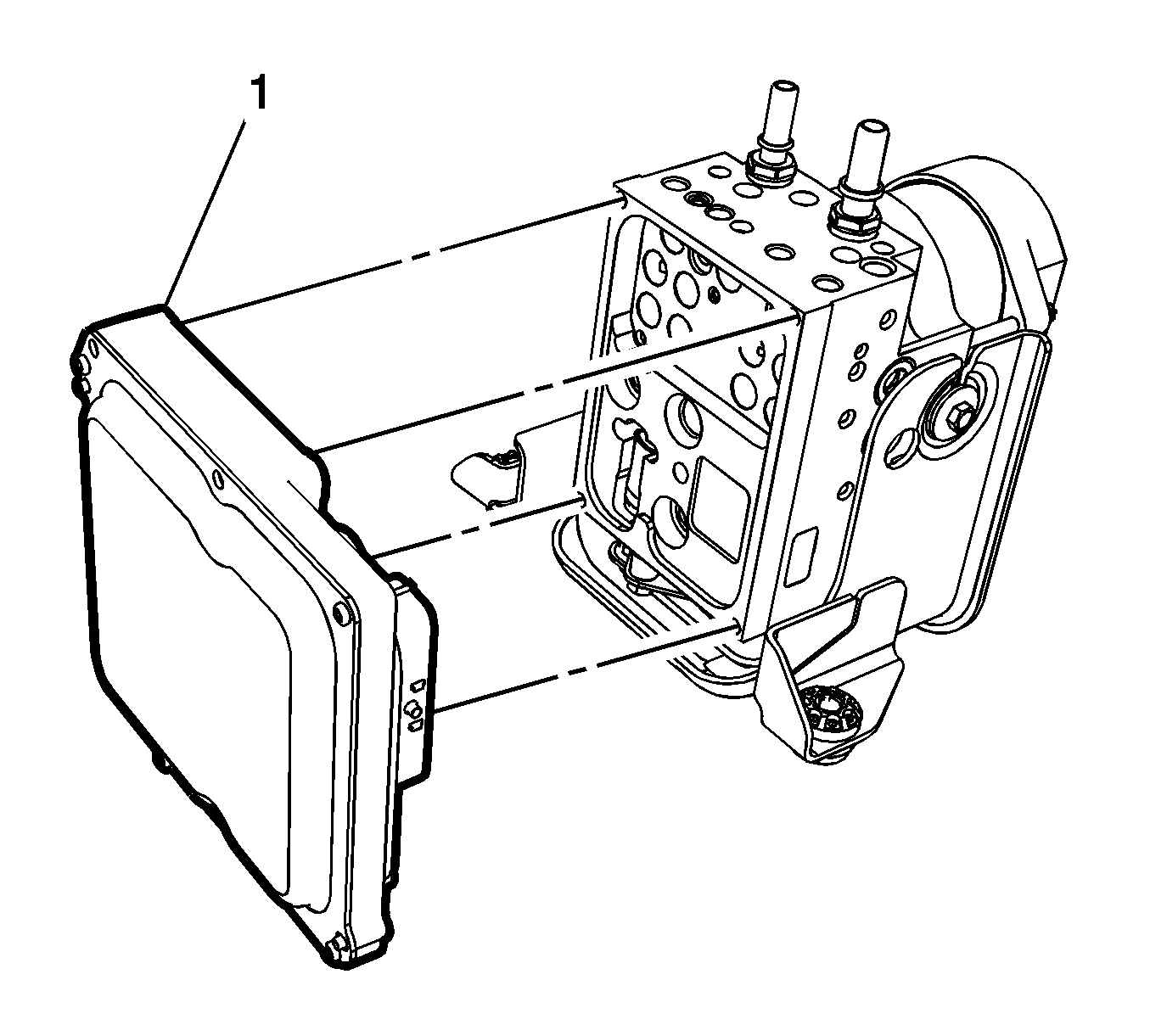

    3. Fig 2: EBCM And BPMV
    GM3226887Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not pry the EBCM from the BPMV. The EBCM must be pulled back evenly.

  3. Carefully separate the EBCM (1) from the BPMV.
