Installation Procedure

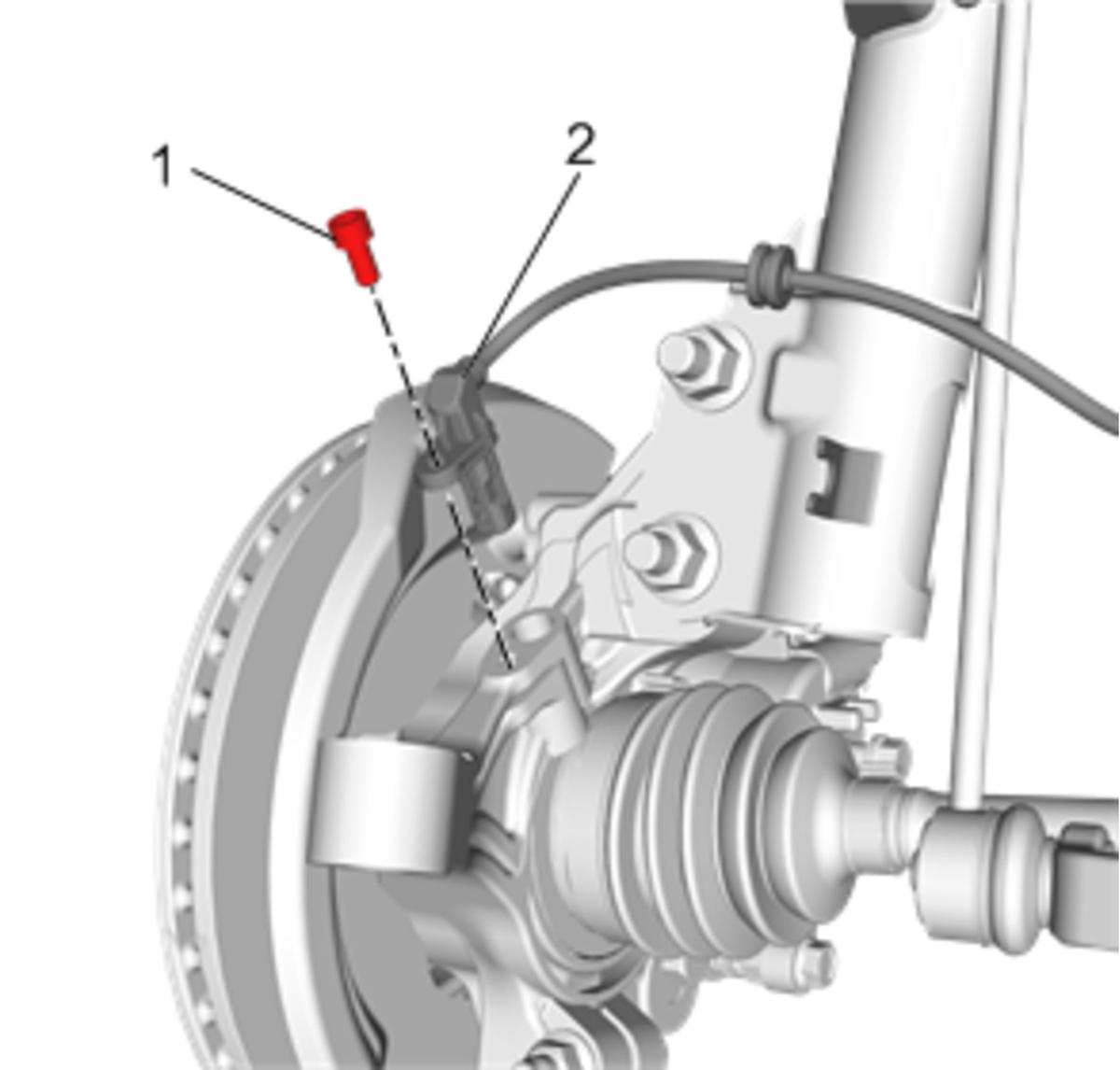

    Fig 1: Front Wheel Speed Sensor And Bolt
    GM3998914Courtesy of GENERAL MOTORS COMPANY
  1. Install the front wheel speed sensor (2) to the knuckle.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the front wheel speed sensor bolt and tighten to 8.5 N.m (75 lb in).

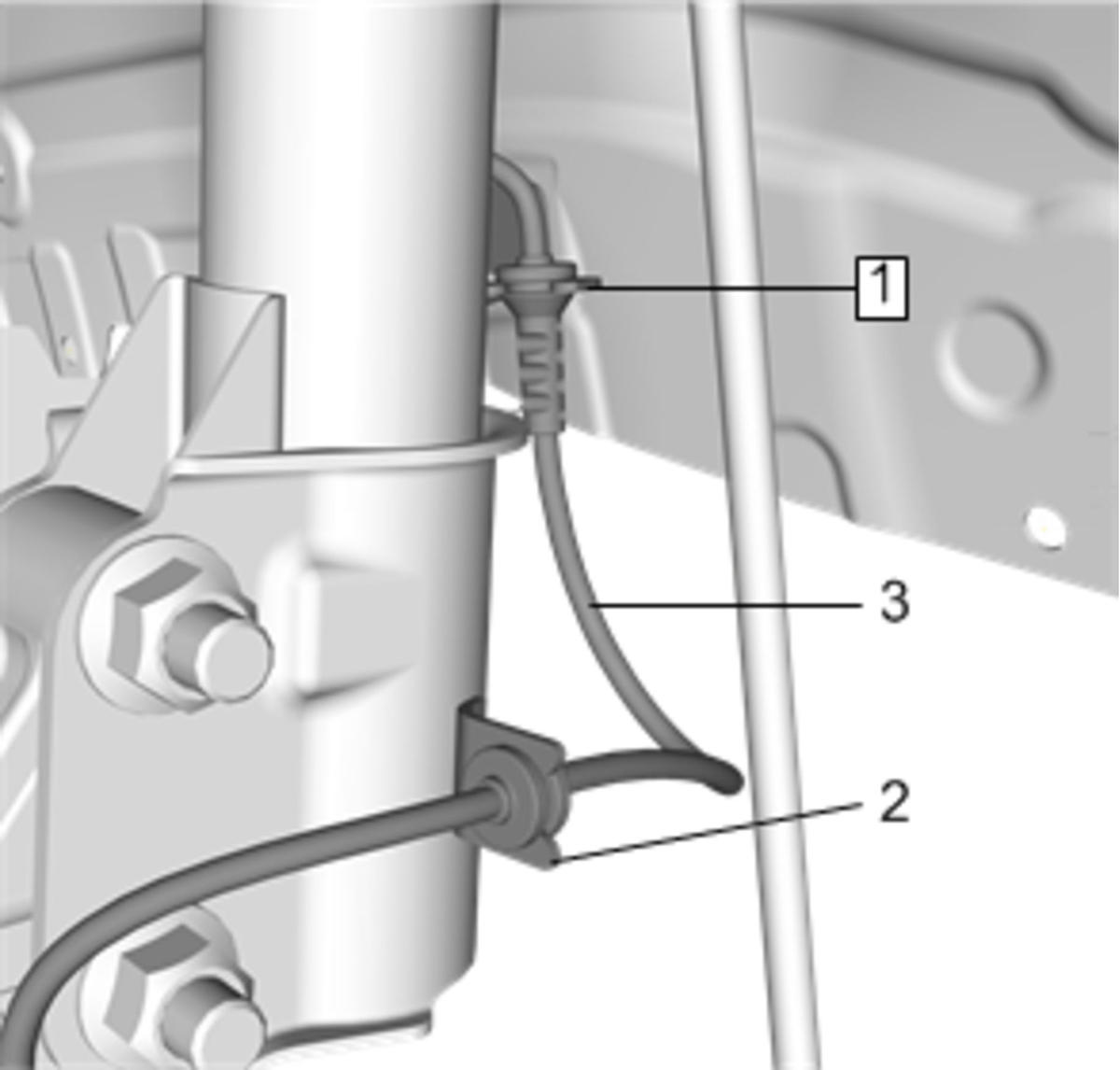

    3. Fig 2: Front Wheel Speed Sensor Harness And Body Frame Mounted Bracket
    GM3998913Courtesy of GENERAL MOTORS COMPANY
  3. Attach the front wheel speed sensor harness (3) to the front strut mounted bracket (2).
  4. Attach the front wheel speed sensor harness (3) to the body frame mounted bracket (1).

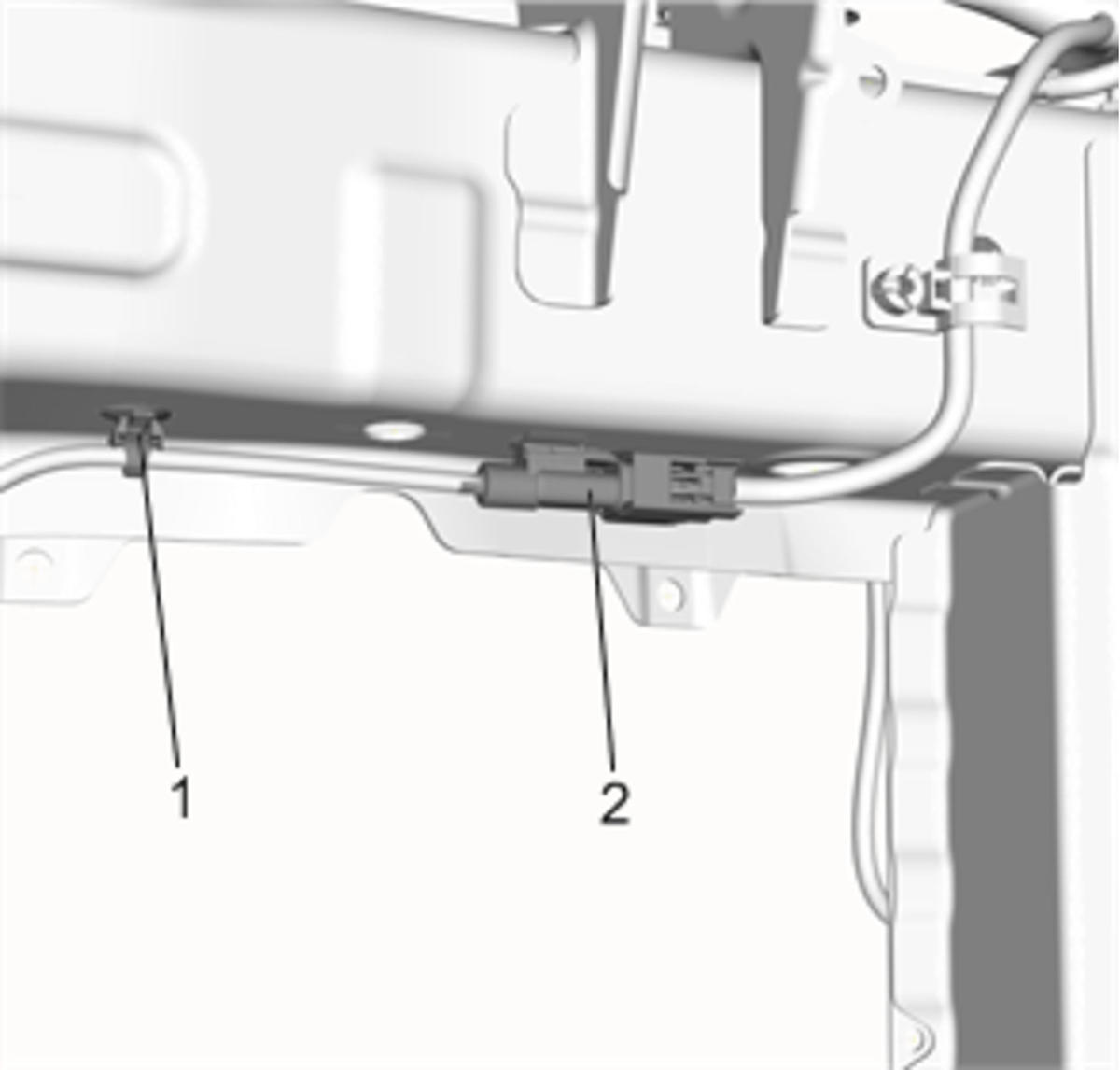

    5. Fig 3: Front Wheel Speed Sensor Harness Clip And Electrical Connector
    GM3998912Courtesy of GENERAL MOTORS COMPANY
  5. Connect the front wheel speed sensor electrical connector (2) to the forward lamp wiring harness.
  6. Attach the front wheel speed sensor harness clip (1) to the front compartment front inner side rail.
  7. Install the front bumper fascia opening lower cover. Refer to Front Bumper Fascia Opening Lower Cover Replacement .
  8. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .
  9. Lower the vehicle. Refer to Lifting and Jacking the Vehicle .
