Wireless Charging System Module Replacement

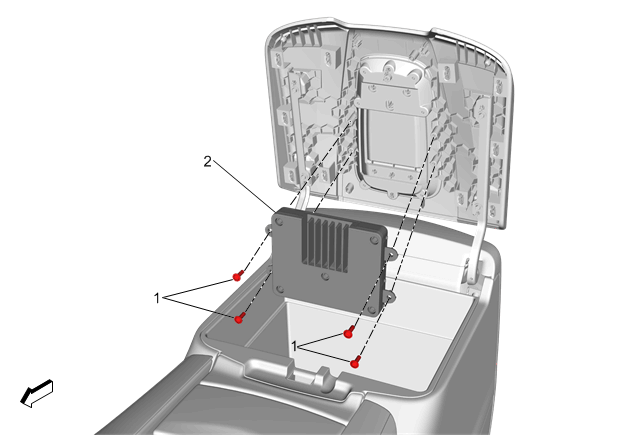

Fig 1: Wireless Charging System Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front floor console armrest hinge cover. Refer to Front Floor Console Armrest Hinge Cover Replacement .
1	Charging System Wireless Module Fastener (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Charging System Wireless Module Procedure  Disconnect the electrical connector.
