Installation Procedure

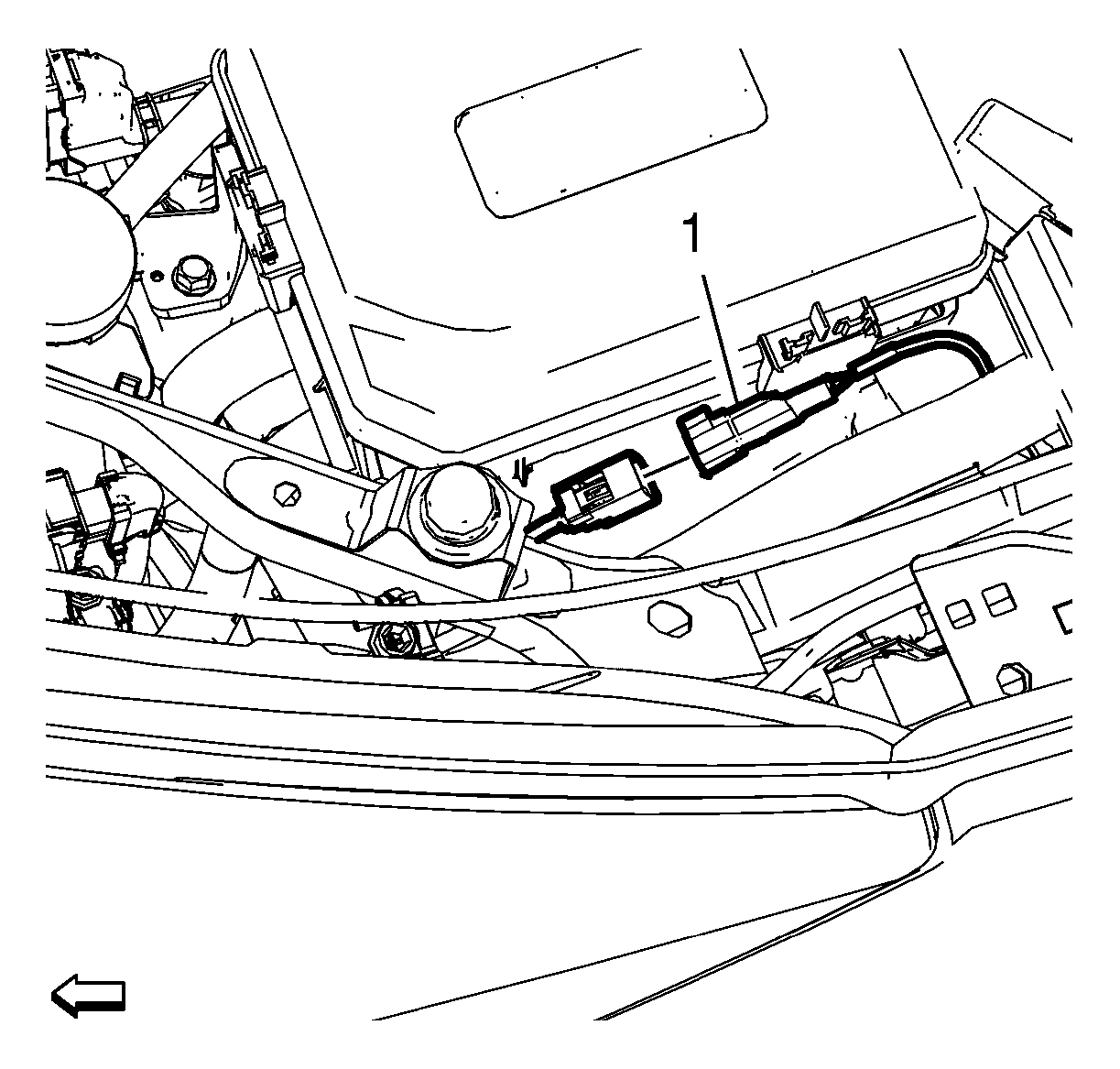

    Fig 1: Wheel Speed Sensor Connector
    GM3655423Courtesy of GENERAL MOTORS COMPANY
  1. Connect Wheel Speed Sensor Connector (1)

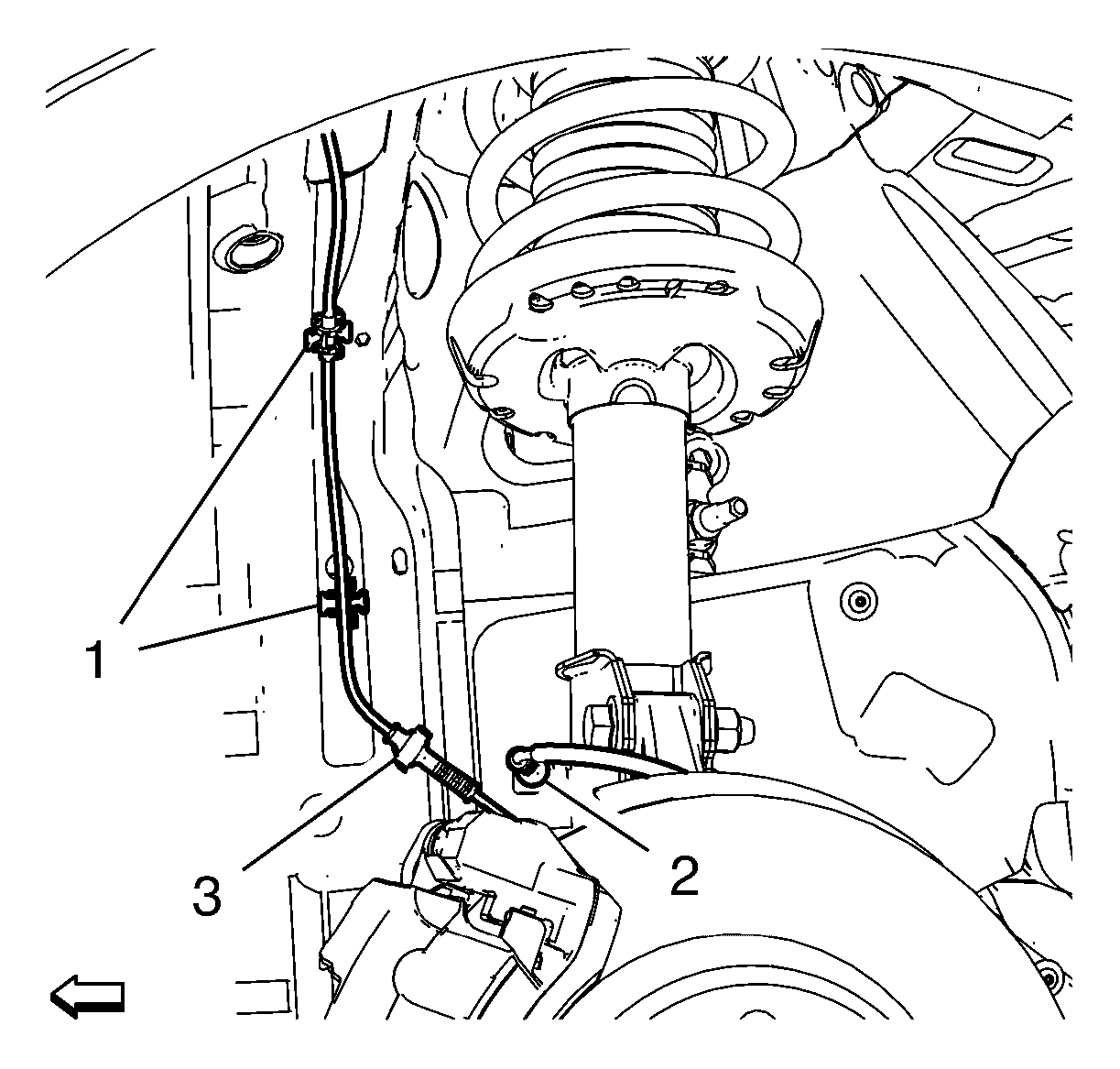

    2. Fig 2: Front Wheel Speed Sensor Wiring Harness
    GM3655422Courtesy of GENERAL MOTORS COMPANY
  2. Install Front Wheel Speed Sensor Wiring Harness (1-3)

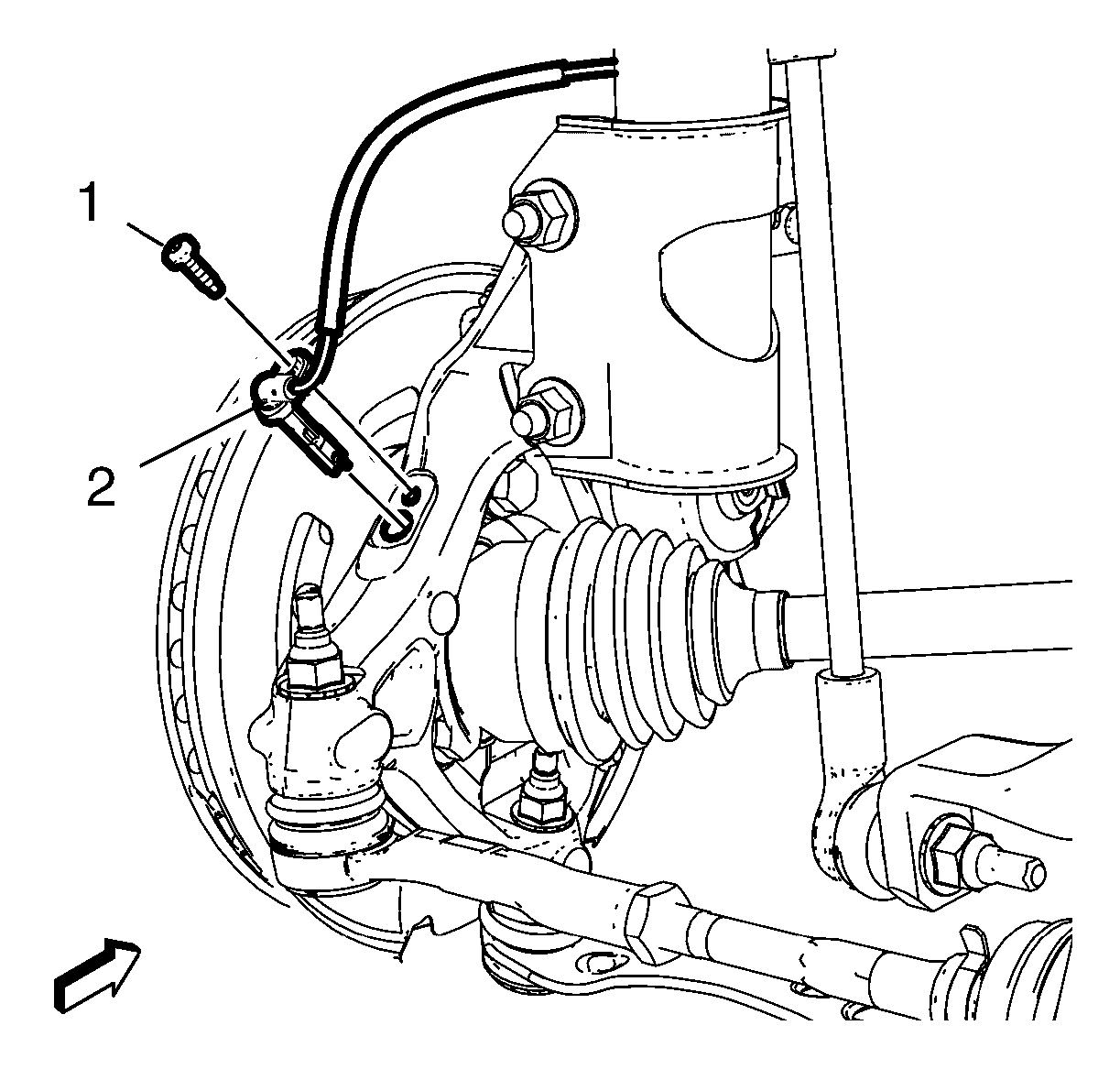

    3. Fig 3: Front Wheel Speed Sensor And Fastener
    GM3655421Courtesy of GENERAL MOTORS COMPANY
  3. Install Front Wheel Speed Sensor (2)
    4. CAUTION:

    Refer to Fastener Caution

  4. Install and tighten Front Wheel Speed Sensor Fastener (1) to 9.5 N.m (84 lb in)
  5. Install Front Wheelhouse Liner. Refer to Front Wheelhouse Liner Replacement (Left Side)Front Wheelhouse Liner Replacement (Right Side)
  6. Install tire and wheel assembly. Refer to Tire and Wheel Removal and Installation
