Center Console Components Top

Center Console Components Top

Items
1: P2 Transmission Shift Lever Position Indicator
2: X92 USB Receptacle X92 USB Receptacle (USS)
3: X83 Auxiliary Audio Input X83 Auxiliary Audio Input X1X83 Auxiliary Audio Input X2
4: S91 Park Brake Control Switch S91 Park Brake Control Switch

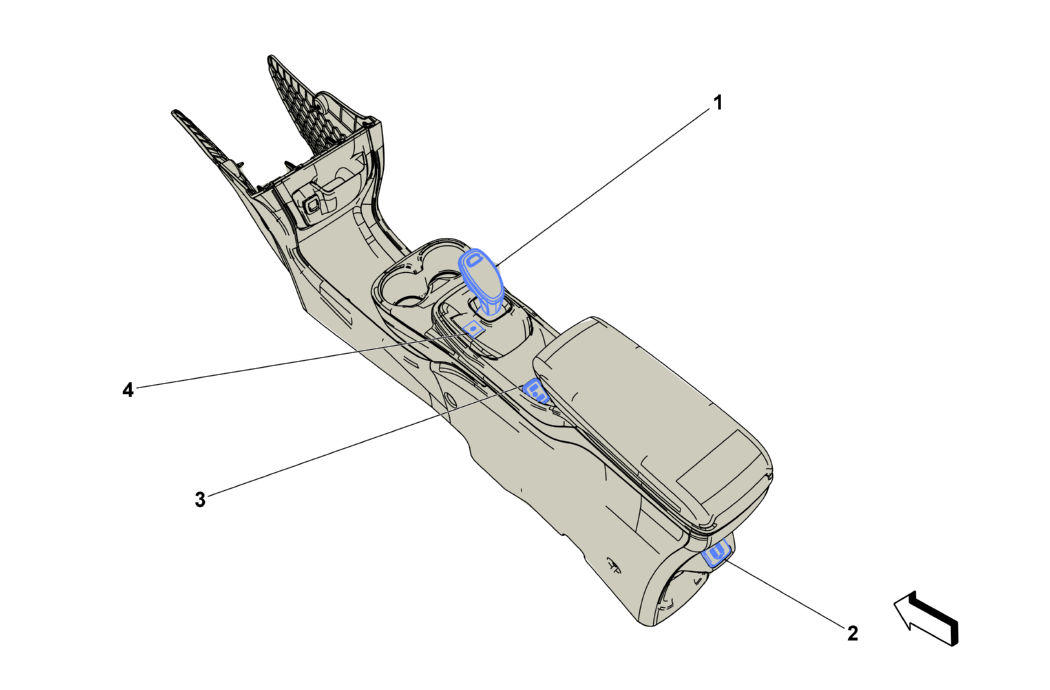

Fig 1: Center Console Components Top
GM4527579Courtesy of GENERAL MOTORS COMPANY
