Installation Procedure

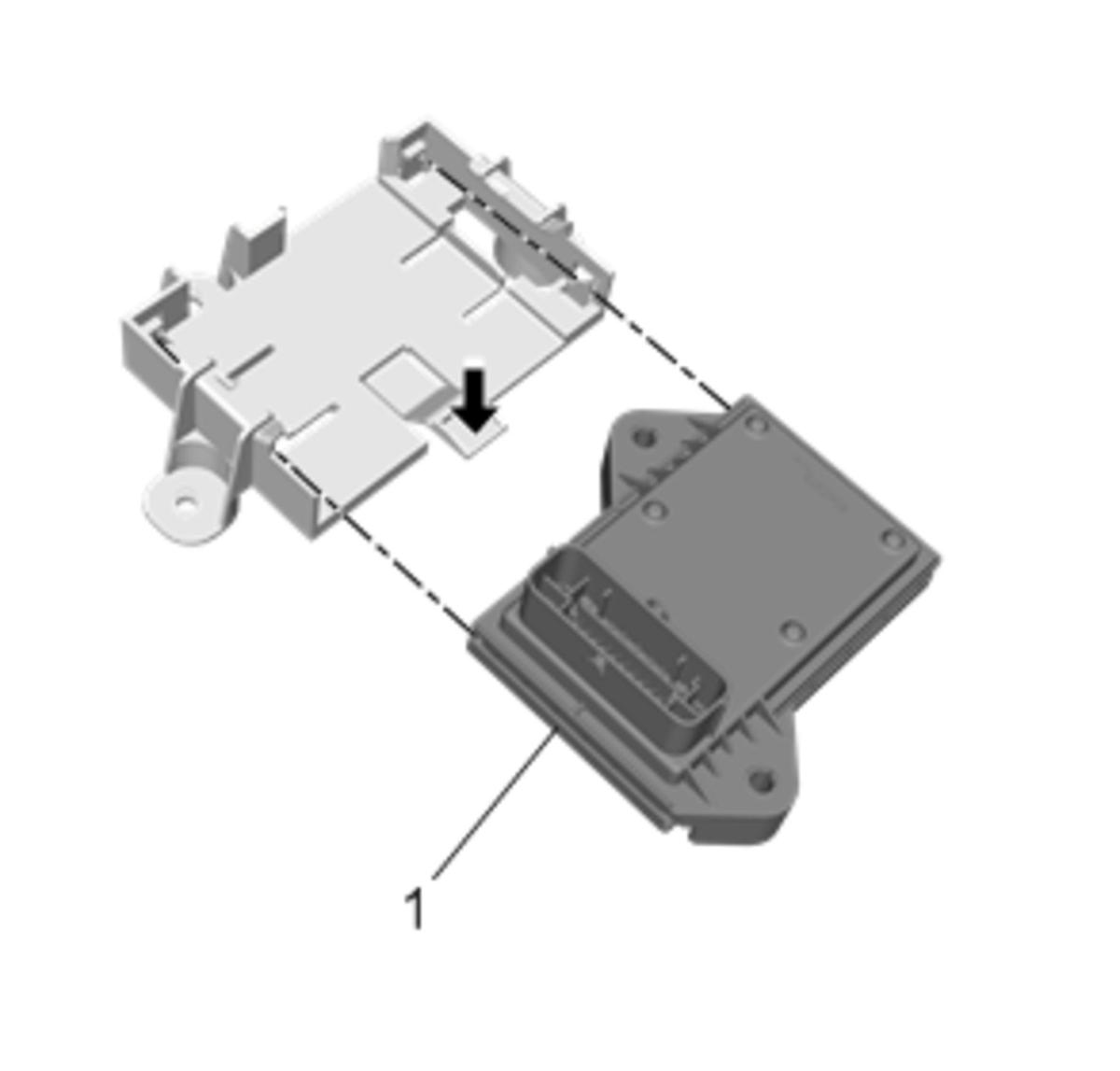

    Fig 1: Chassis Control Module And Chassis Control Module Bracket
    GM4630657Courtesy of GENERAL MOTORS COMPANY
  1. Install Chassis Control Module (1) @ Chassis Control Module Bracket

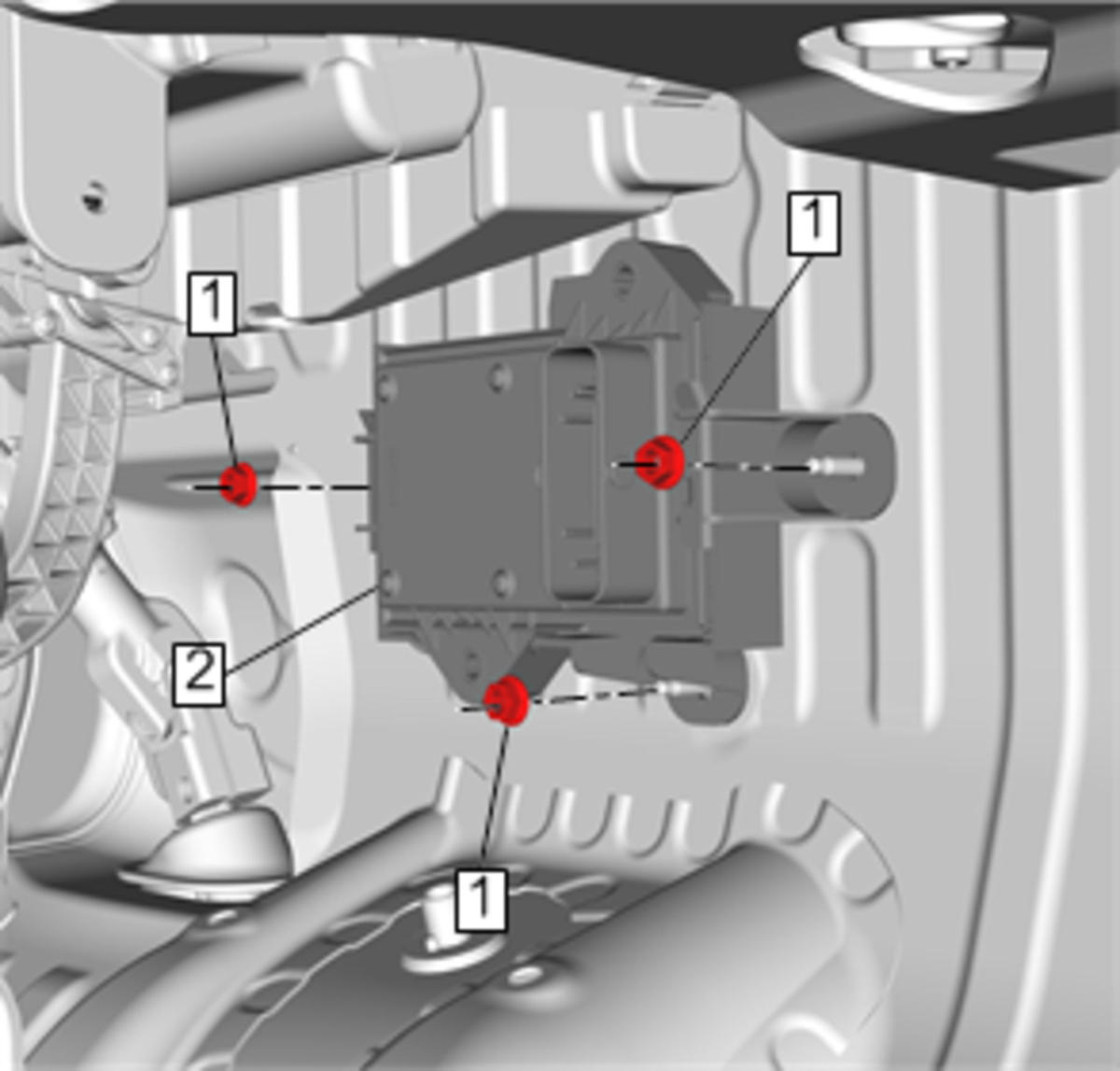

    2. Fig 2: Chassis Control Module/Bracket Assembly And Nuts
    GM4630656Courtesy of GENERAL MOTORS COMPANY
  2. Install the chassis control module and bracket assembly (2) to the vehicle.
    3. CAUTION:

    Refer to Fastener Caution

  3. Install and tighten Chassis Control Module Bracket Nuts (1) (Qty: 3) to 9 N.m (80 lb in)

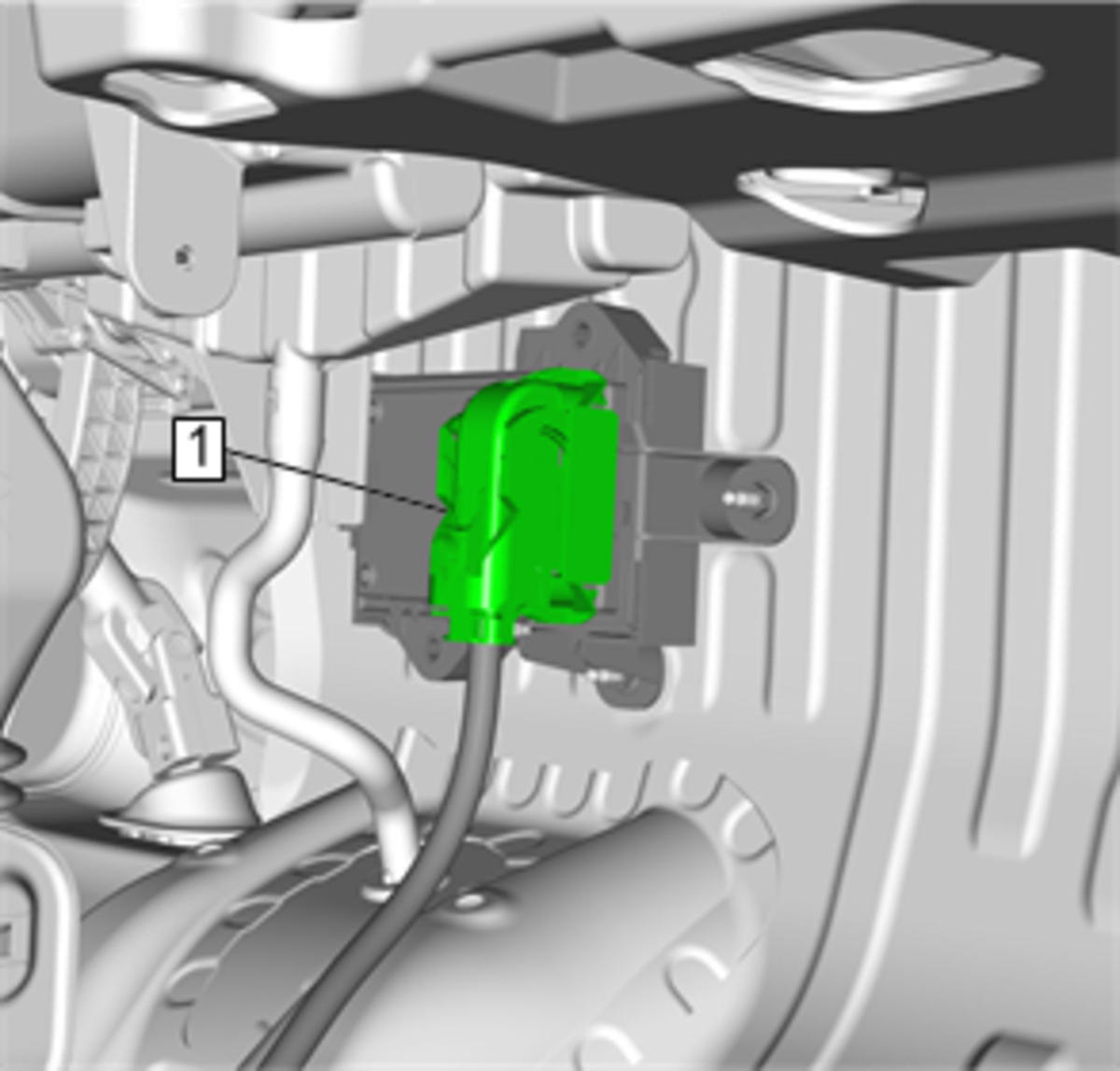

    4. Fig 3: Electrical Connector
    GM4630655Courtesy of GENERAL MOTORS COMPANY
  4. Connect Electrical Connector (1) @ Chassis Control Module

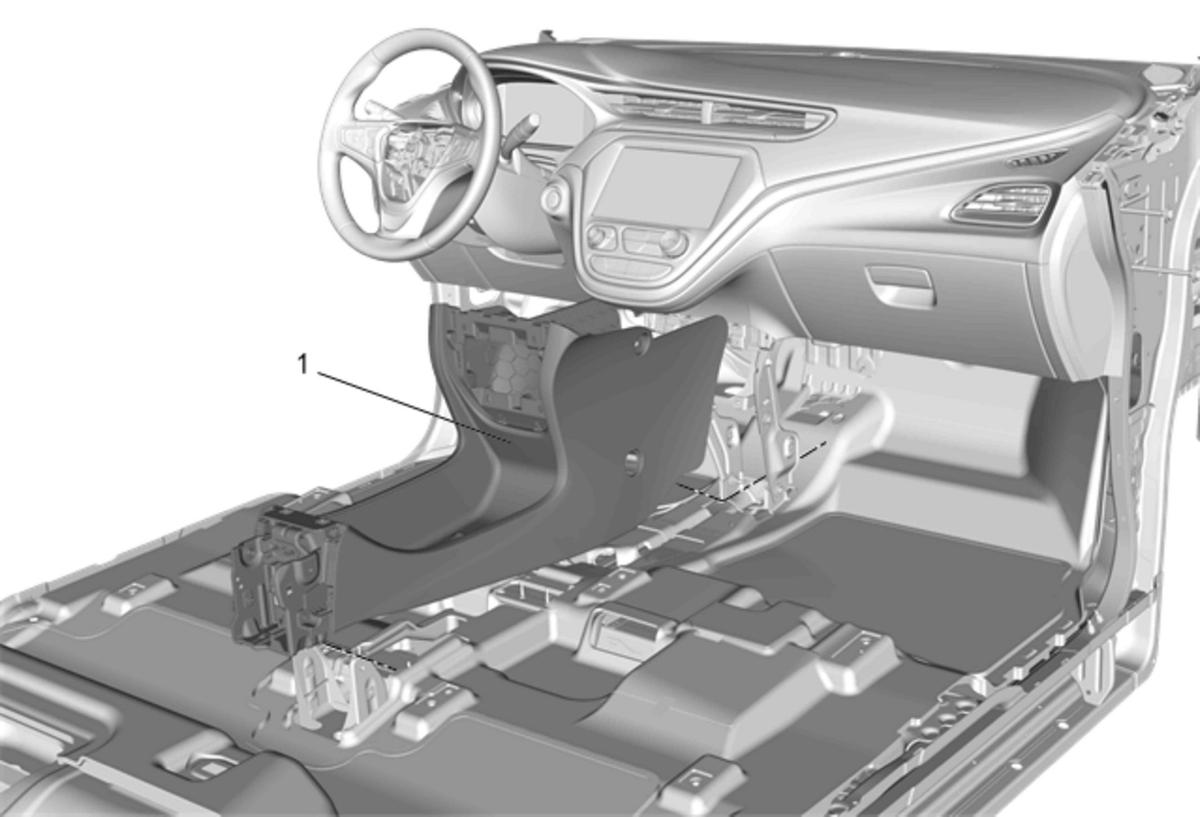

    5. Fig 4: Front Floor Console
    GM4535541Courtesy of GENERAL MOTORS COMPANY
  5. Install Front Floor Console (1) @ Vehicle. Refer to Front Floor Console Replacement
  6. Program the chassis control module. Refer to Control Module References
