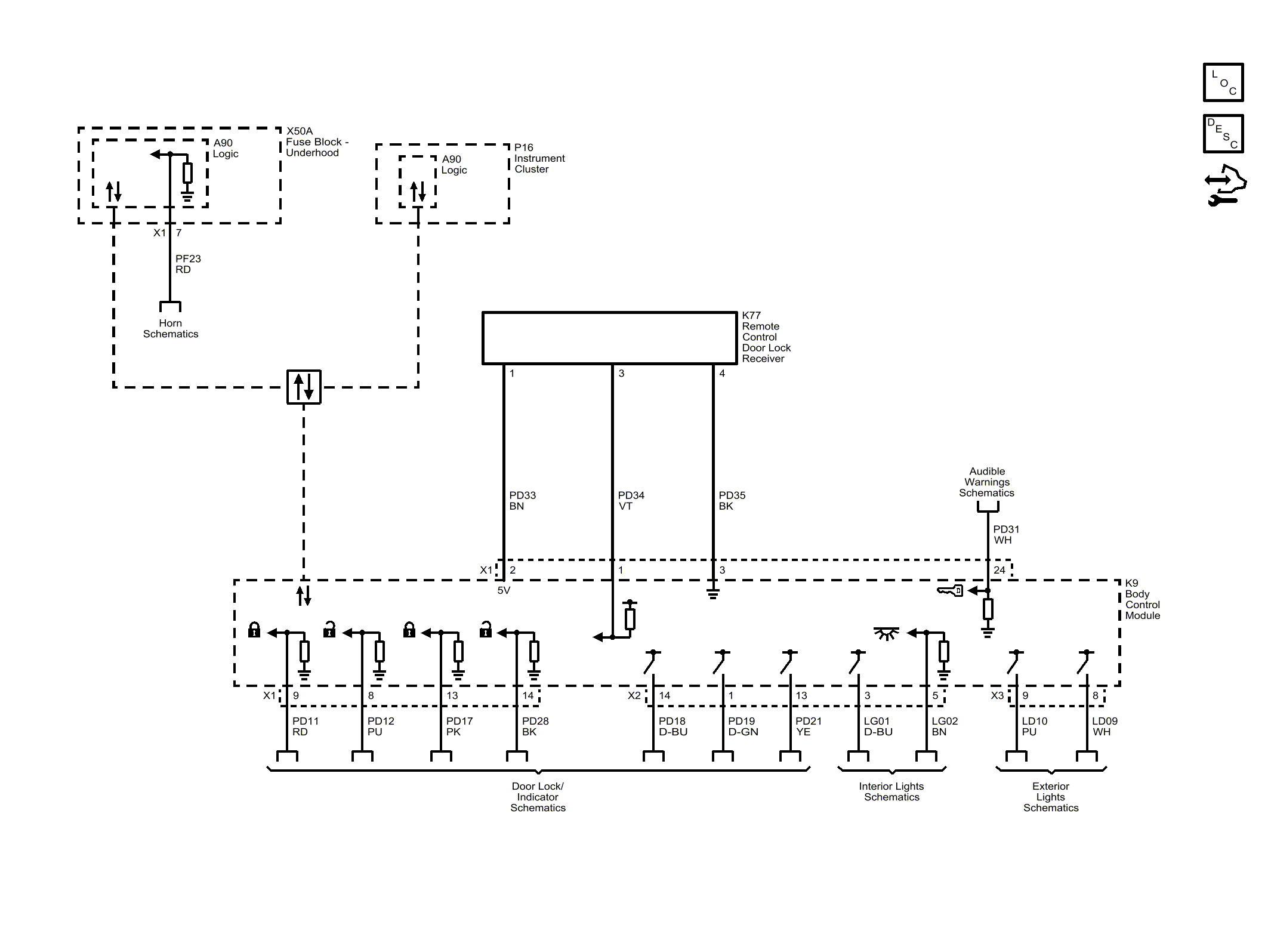

Home >> Chevrolet >> 2017 >> City Express LS >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Keyless Entry System And Remote Functions >> Schematic Wiring Diagrams >> Remote Function Schematics >> Keyless Entry
