Top Of The Engine Components
Top Of The Engine Components

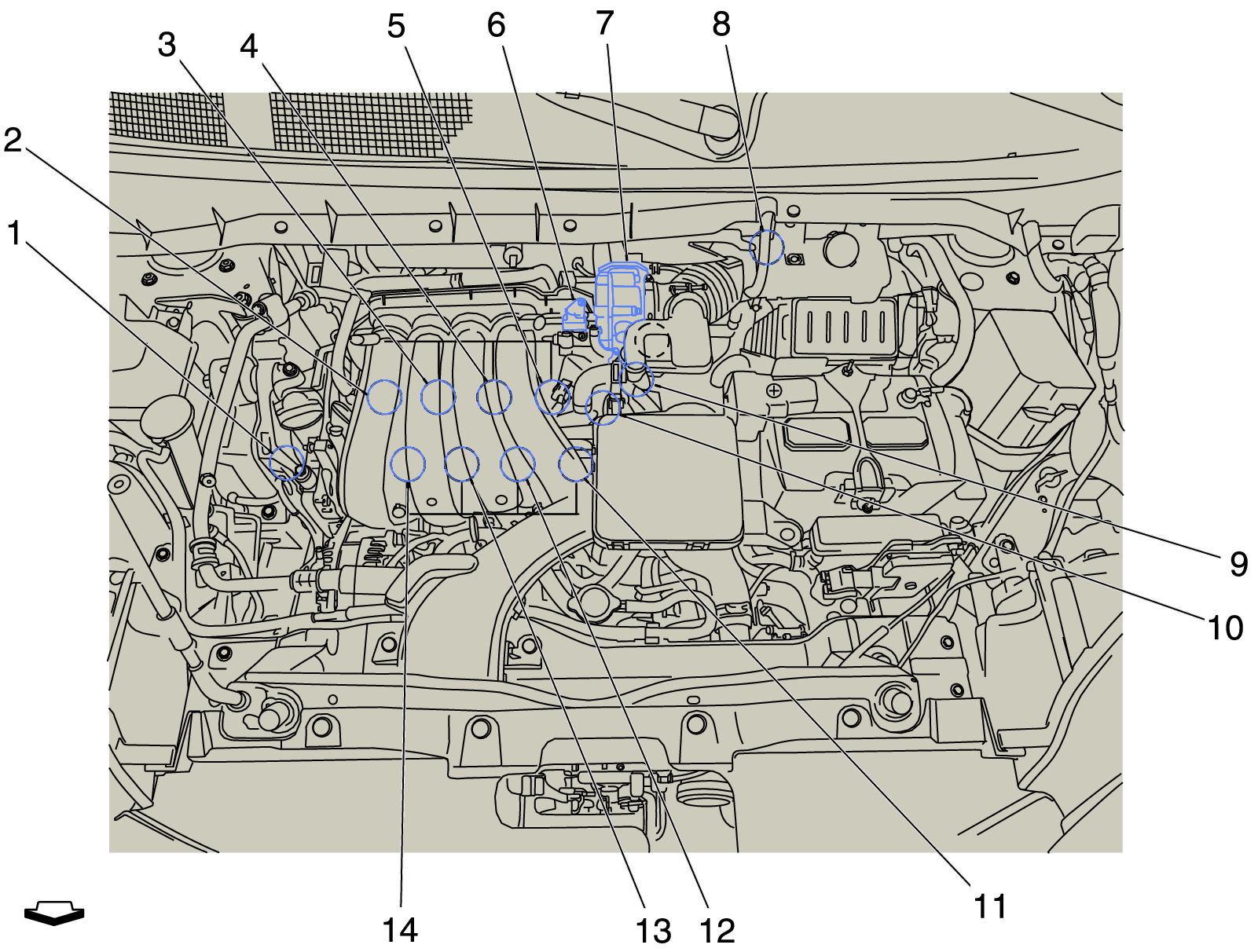

| Items | Callout |
|---|---|
| Q6F Camshaft Position Actuator Solenoid Valve - Intake Connector View | (1) |
| T8A Ignition Coil 1 Connector View | (2) |
| T8B Ignition Coil 2 Connector View | (3) |
| T8C Ignition Coil 3 Connector View | (4) |
| T8D Ignition Coil 4 Connector View | (5) |
| Q12 Evaporative Emission Purge Solenoid Valve Connector View | (6) |
| Q38 Throttle Body Connector View | (7) |
| B75 Mass Air Flow Sensor Connector View | (8) |
| B34 Engine Coolant Temperature Sensor Connector View | (9) |
| B23 Camshaft Position Sensor Connector View | (10) |
| Q17D Fuel Injector 4 Connector View | (11) |
| Q17C Fuel Injector 3 Connector View | (12) |
| Q17B Fuel Injector 2 Connector View | (13) |
| Q17A Fuel Injector 1 Connector View | (14) |
