Keyless Entry - Keyless Entry Control Module

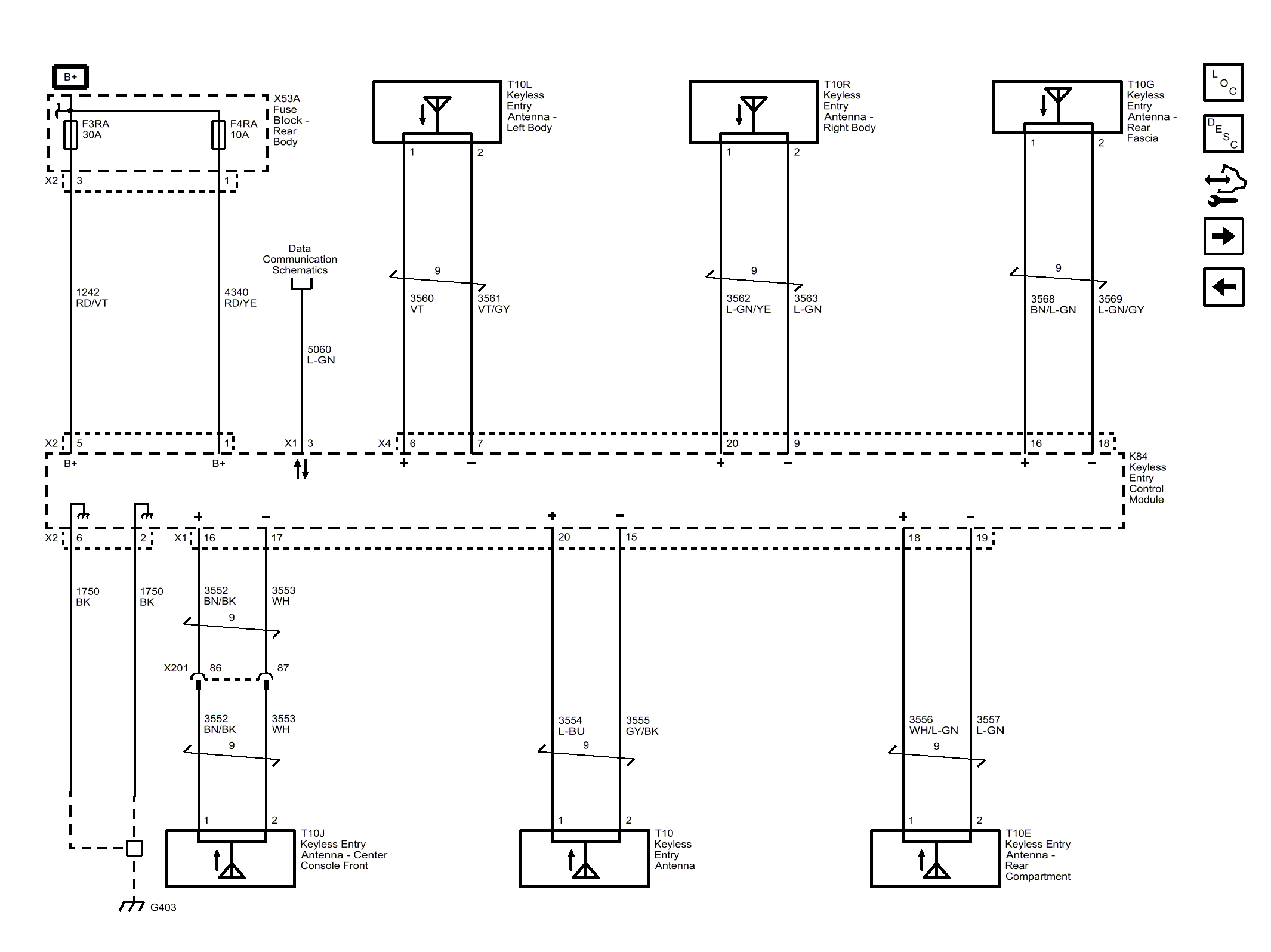

Fig 1: Keyless Entry - Keyless Entry Control Module

GM4425809

Courtesy of GENERAL MOTORS COMPANY
