Steering Column Lock Control Module Replacement

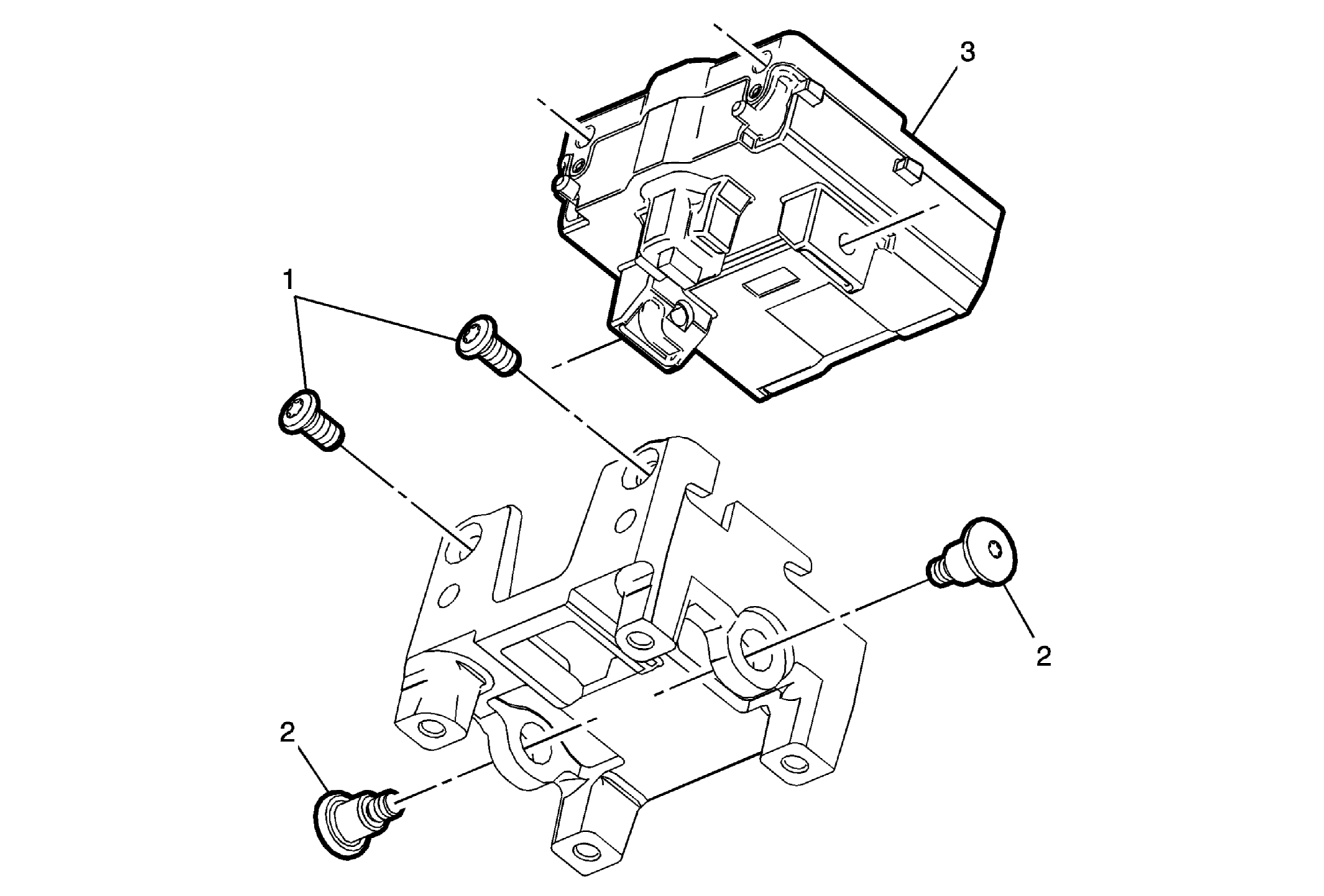

Fig 1: Steering Column Lock Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure With the vehicle in accessory mode, remove fuse to unlock the steering column lock control module - Column Lock Schematics Steering Column Electronic Lock Replacement
1	Steering Column Lock Control Module Bolt - Front (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 8 N.m (71 lb in)
2	Steering Column Lock Control Module Bolt - Side (Qty: 2) Tighten 8 N.m (71 lb in)
3	Steering Column Lock Control Module
