Installation Procedure

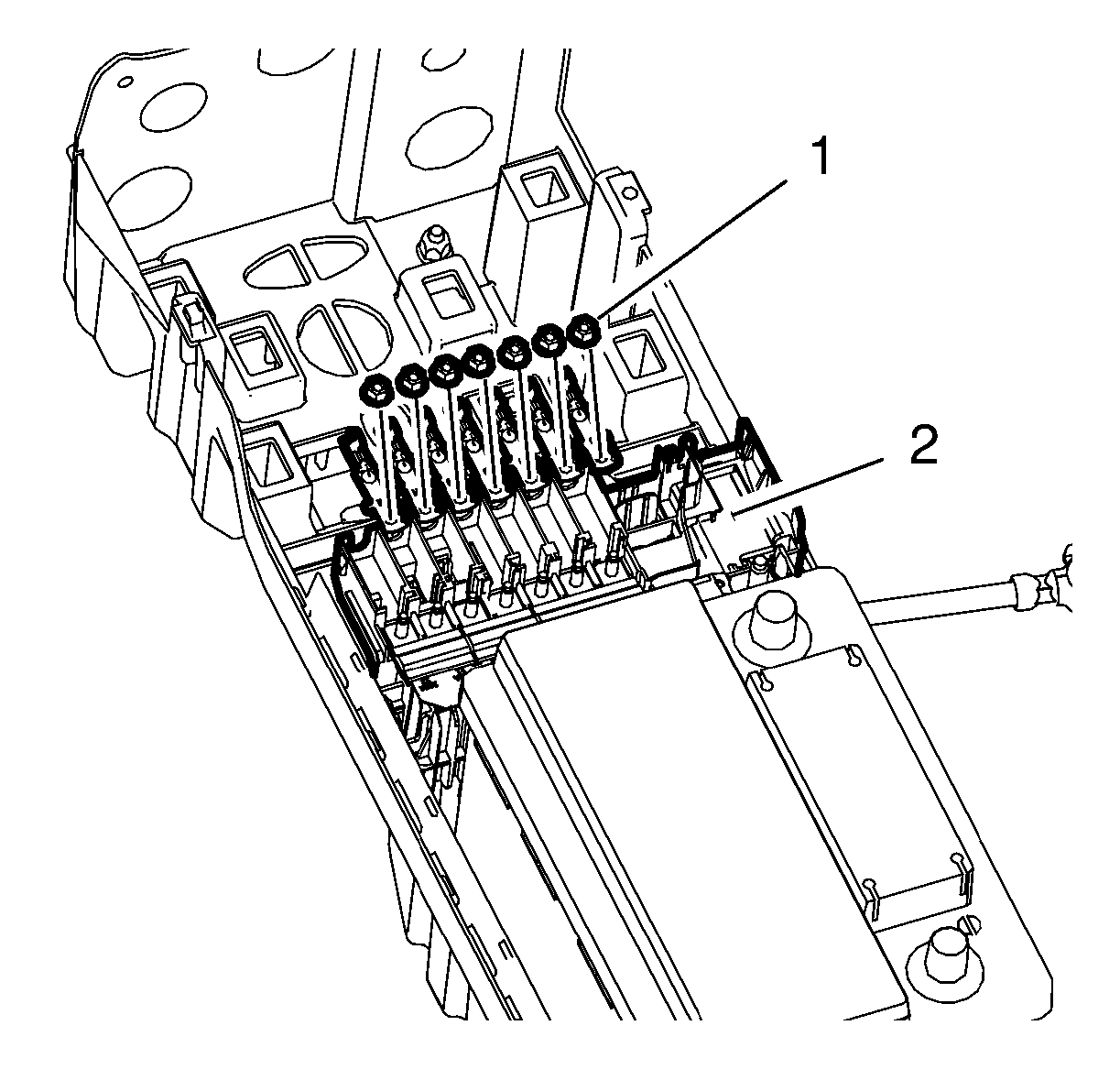

    Fig 1: Body Wiring Harness Nuts And Fuse Block
    GM3686210Courtesy of GENERAL MOTORS COMPANY
  1. Install Fuse Block (2)
    2. CAUTION:

    Refer to Fastener Caution

  2. Install the body wiring harness and the 7 body wiring harness nuts (1) and tighten to 8 N.m (71 lb in).
  3. Install Battery to Fuse Block Cable. Refer to Battery to Fuse Block Cable Replacement

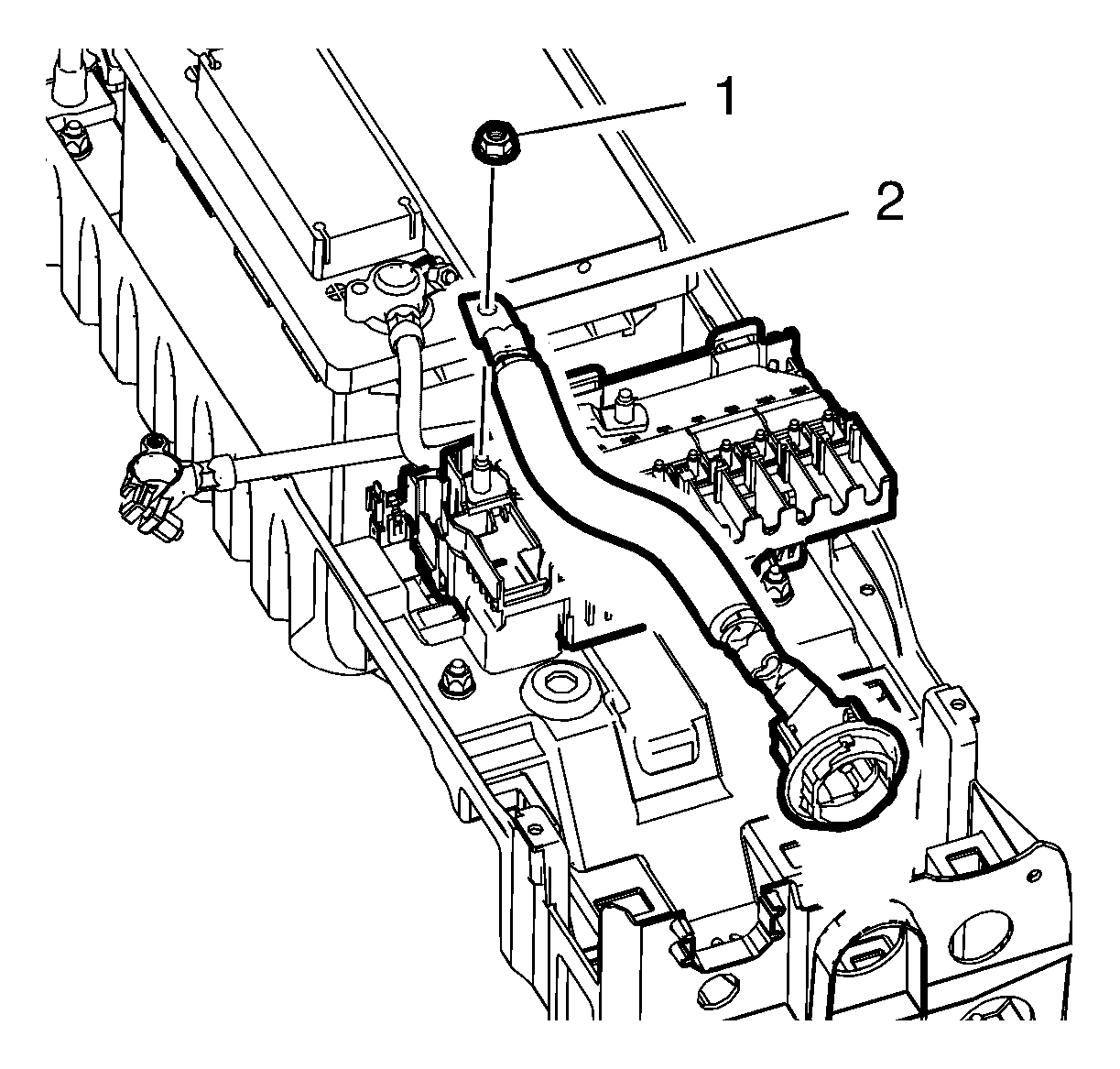

    4. Fig 2: Positive Battery Cable To Starter And Nut
    GM3686209Courtesy of GENERAL MOTORS COMPANY
  4. Install the positive battery cable to starter (2).
  5. Install the positive battery cable to starter nut (1) and tighten to 15 N.m (11 lb ft).

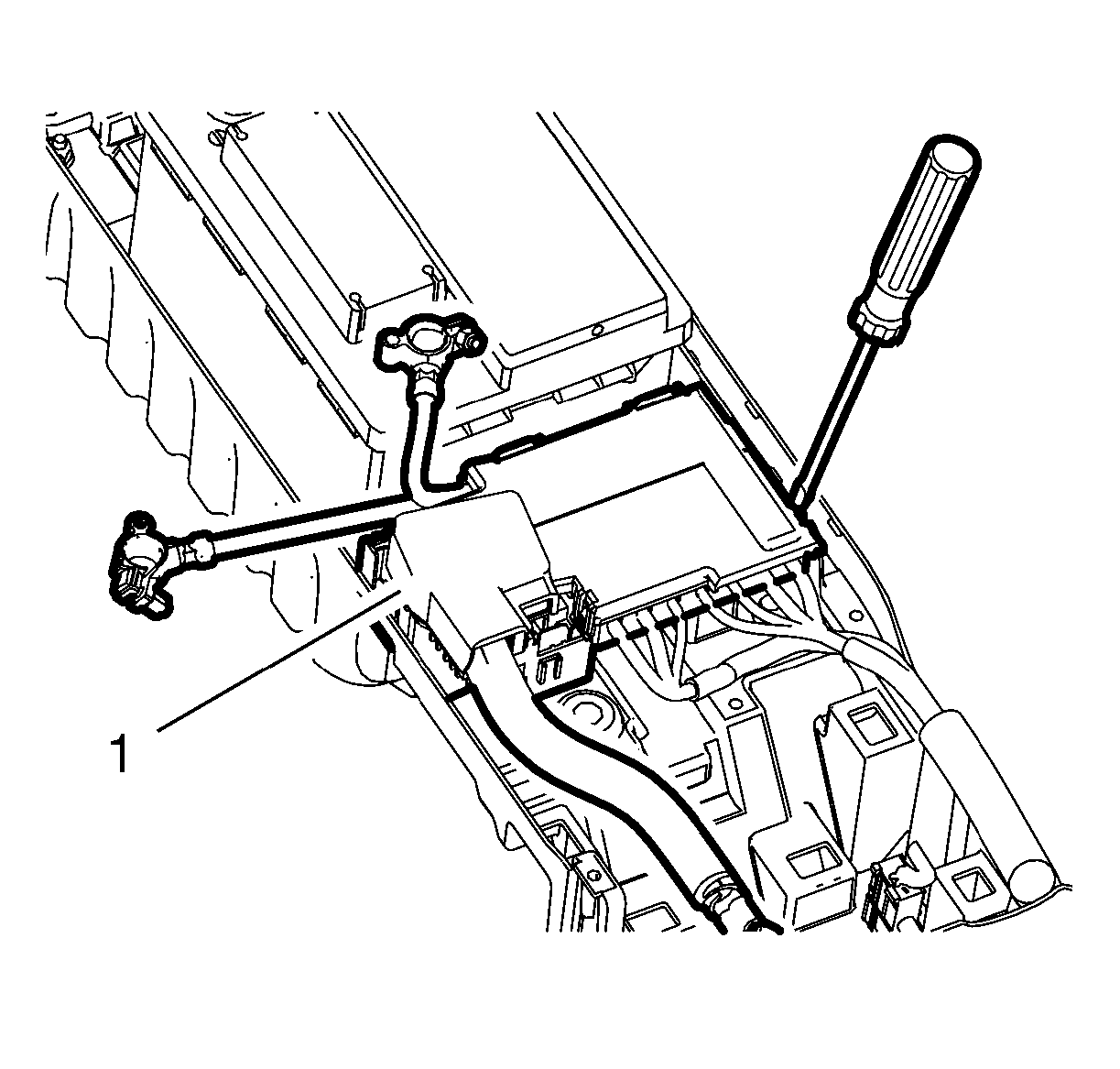

    6. Fig 3: Retaining Tab On Battery Fuse Box Cover
    GM3686207Courtesy of GENERAL MOTORS COMPANY
  6. Close the battery fuse box cover and lock the retaining tabs.
  7. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection
