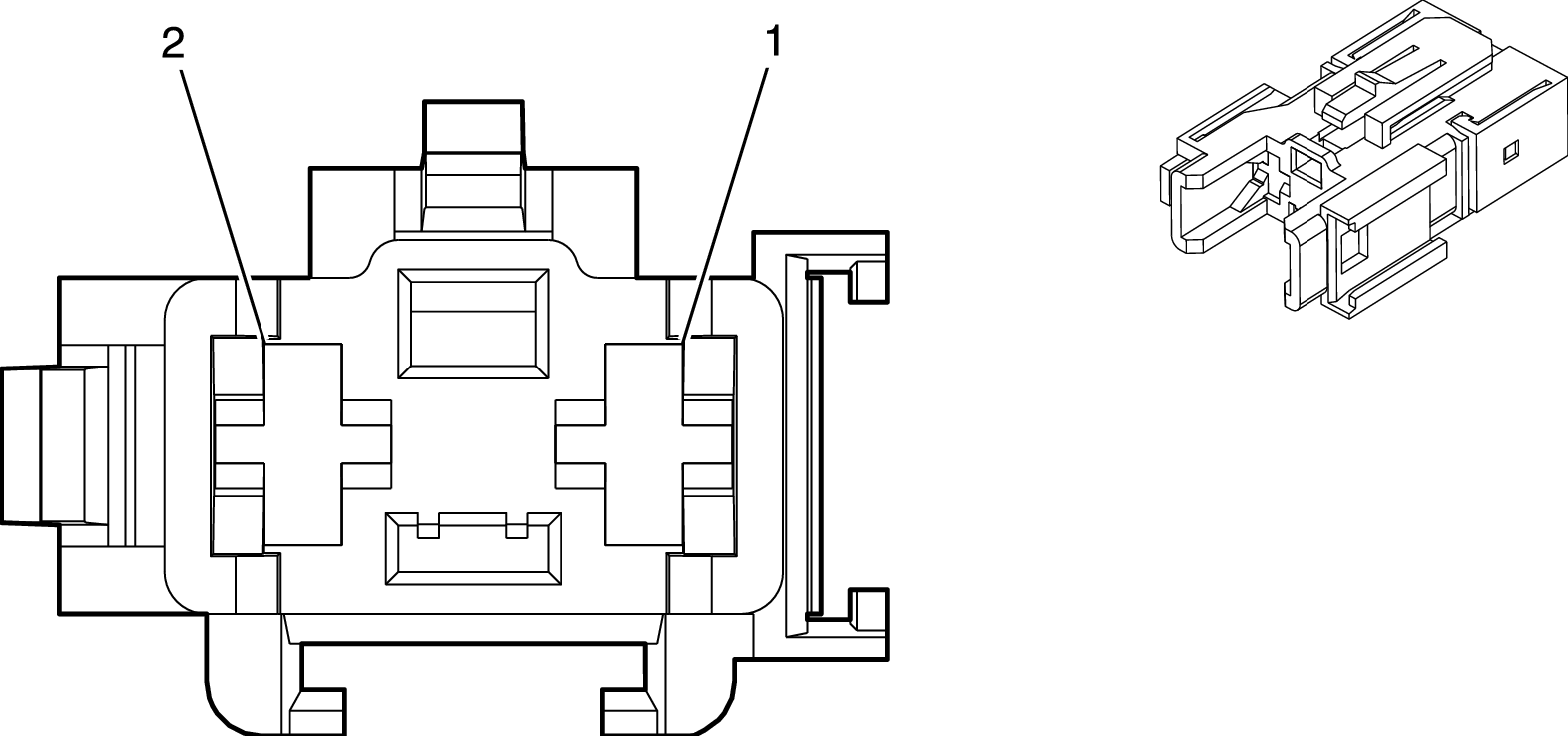

X55AF Fuse Holder - Engine Control Module
|
|
Connector Part Information
- Harness Type: Body Extension
- OEM Connector: 13427708
- Service Connector: Service by Harness - See Part Catalog
- Description: -Way Wire Entry Fuse Holder
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-35 (VT) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1 |
RD/VT |
3340 |
Battery Positive Voltage |
I |
- |
| 2 |
2.5 |
RD/BU |
3240 |
Battery Positive Voltage |
I |
- |
