Wireless Charging System Module Replacement

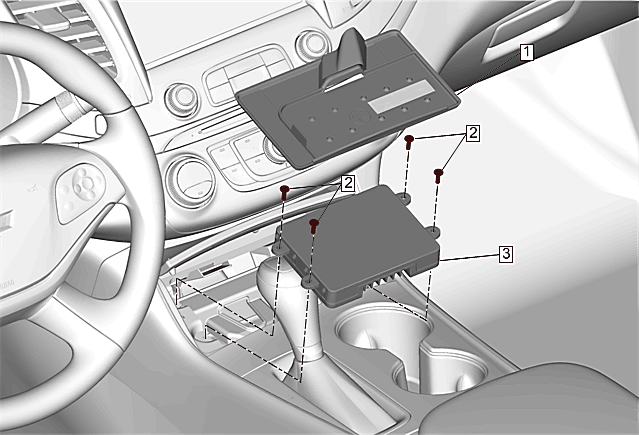

Fig 1: Wireless Charging System Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Open the front floor console compartment door.
1	Front Floor Console Compartment Liner
2	Wireless Charging System Module Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten  1 N.m (9 lb in)
3	Wireless Charging System Module Procedure  Disconnect the electrical connector.
