Wireless Charging System Module Replacement

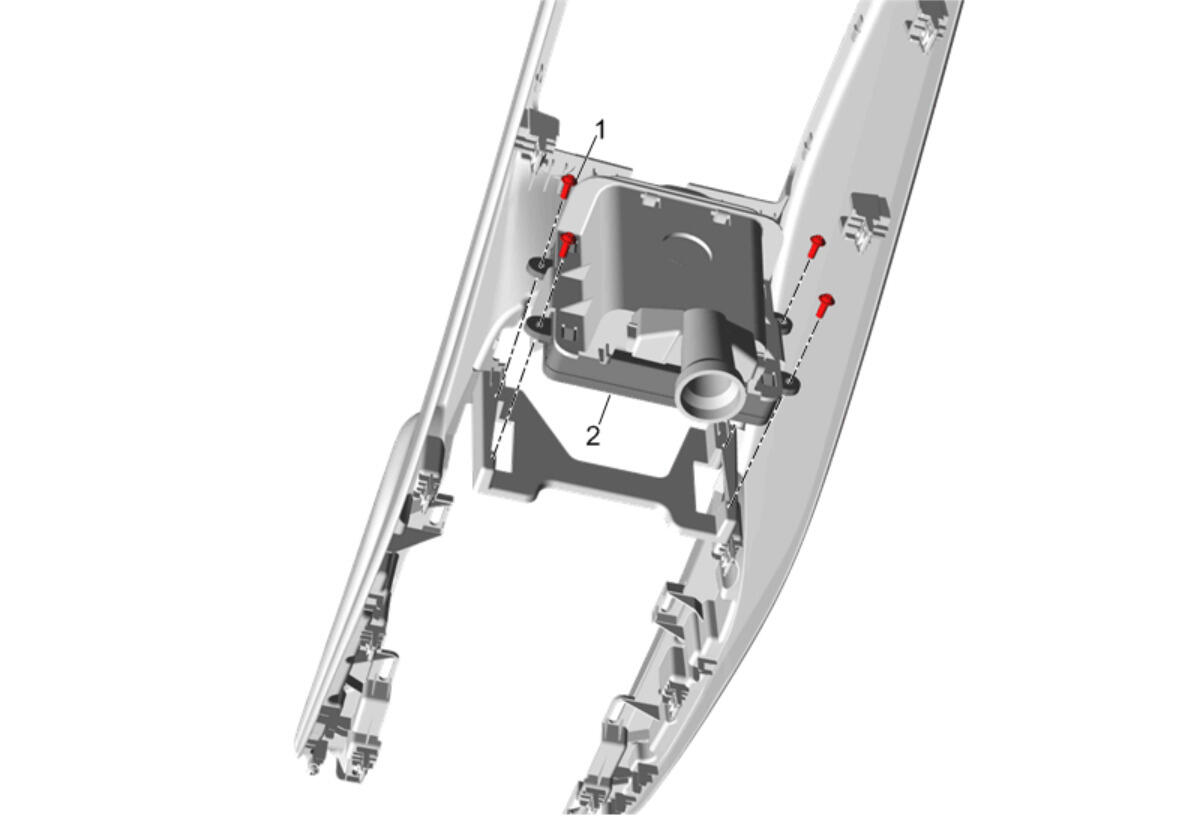

Fig 1: Wireless Charging System Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Floor Console Compartment Replacement
1	Front Floor Console Rear Bracket Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 1 N.m (9 lb in)
2	Wireless Charging System Module Procedure Disconnect the electrical connector. Transfer components as necessary.

Callout

Component Name

Front Floor Console Rear Bracket Bolt [4x]

CAUTION: Refer to Fastener Caution .

Tighten
1 N.m (9 lb in)

Wireless Charging System Module

Procedure
