Human Machine Interface Control Module Bypass Module Bracket Replacement

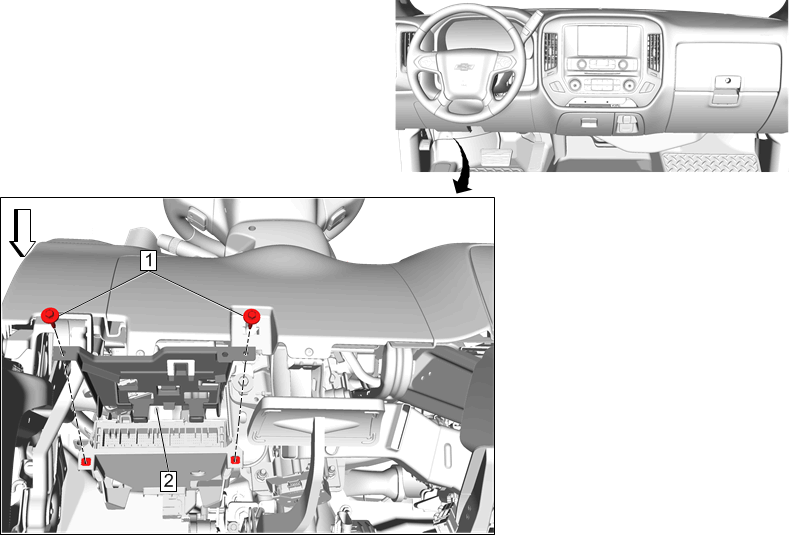

Fig 1: Human Machine Interface Control Module Bypass Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Human Machine Interface Control Module Bypass Module Bracket Bolt (Qty: 3) CAUTION: Fastener Caution Tighten  2.5 N.m (22 lb in)
2	Human Machine Interface Control Module Bypass Module Bracket Procedure  Transfer components as necessary.
