Theft Deterrent Module Replacement

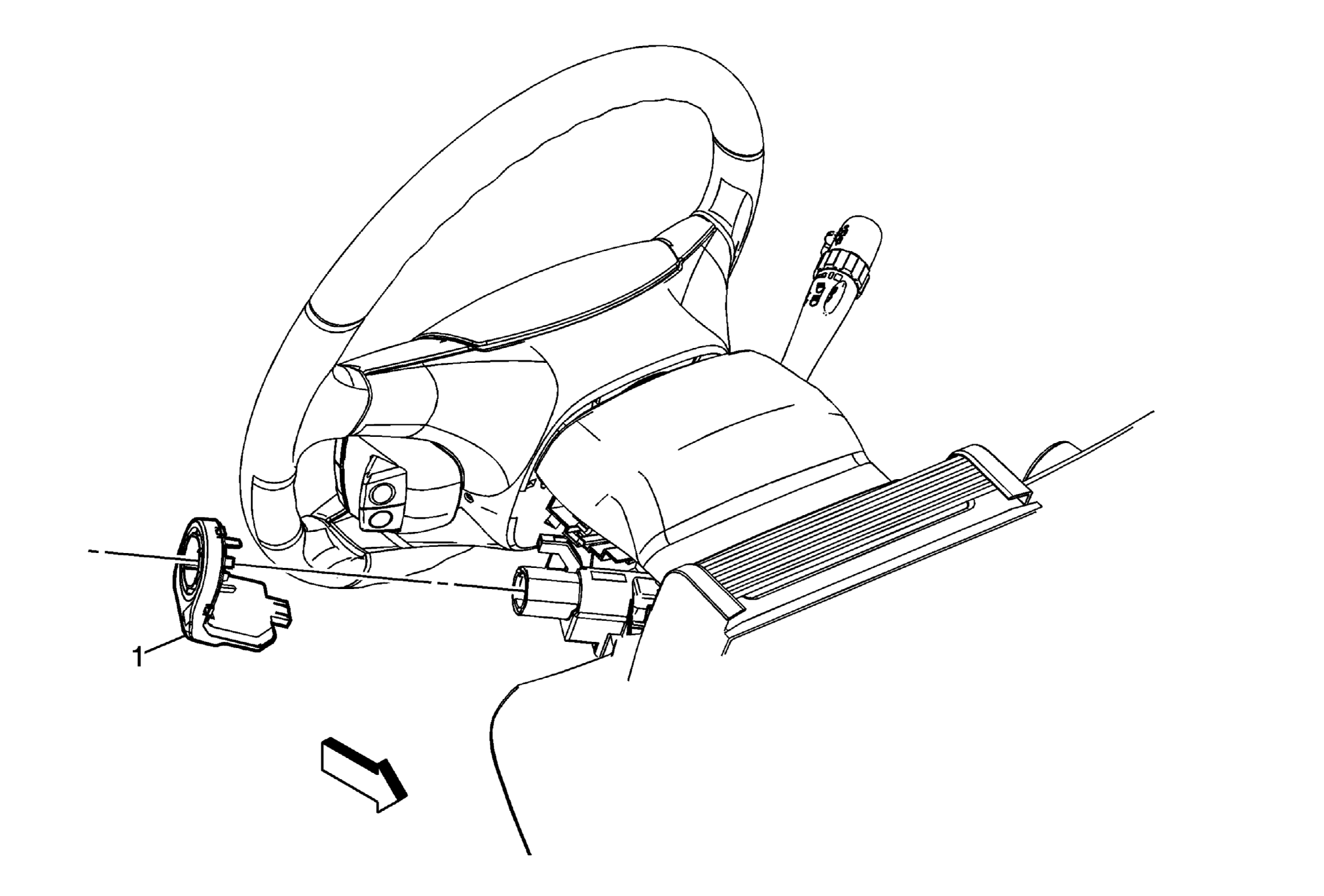

Fig 1: Theft Deterrent Module
GM1857075Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the ignition lock cylinder opening trim cover. Refer to Ignition Lock Cylinder Opening Trim Cover Replacement .
  2. Remove the ignition lock cylinder. Refer to Ignition Lock Cylinder Replacement .
1 Theft Deterrent Module Assembly

Procedure

  1. Disconnect the electrical connector.
  2. Program the theft deterrent control module after replacement. Refer to Control Module References .
