Vehicle Dynamic Sensor Replacement

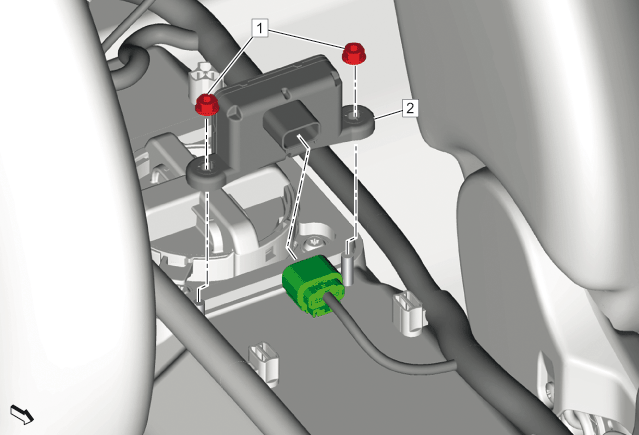

Fig 1: Vehicle Dynamic Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Floor Console Replacement
1	Vehicle Dynamic Sensor Nut (Qty: 2) CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
2	Vehicle Dynamic Sensor Procedure Disconnect the electrical connector. Vehicle Yaw Sensor Learn (with UGN) Vehicle Yaw Sensor Learn (without UGN)

Callout

Component Name

Vehicle Dynamic Sensor Nut (Qty: 2)

CAUTION:

Tighten
9 N.m (80 lb in)

Vehicle Dynamic Sensor

Procedure
