Installation Procedure

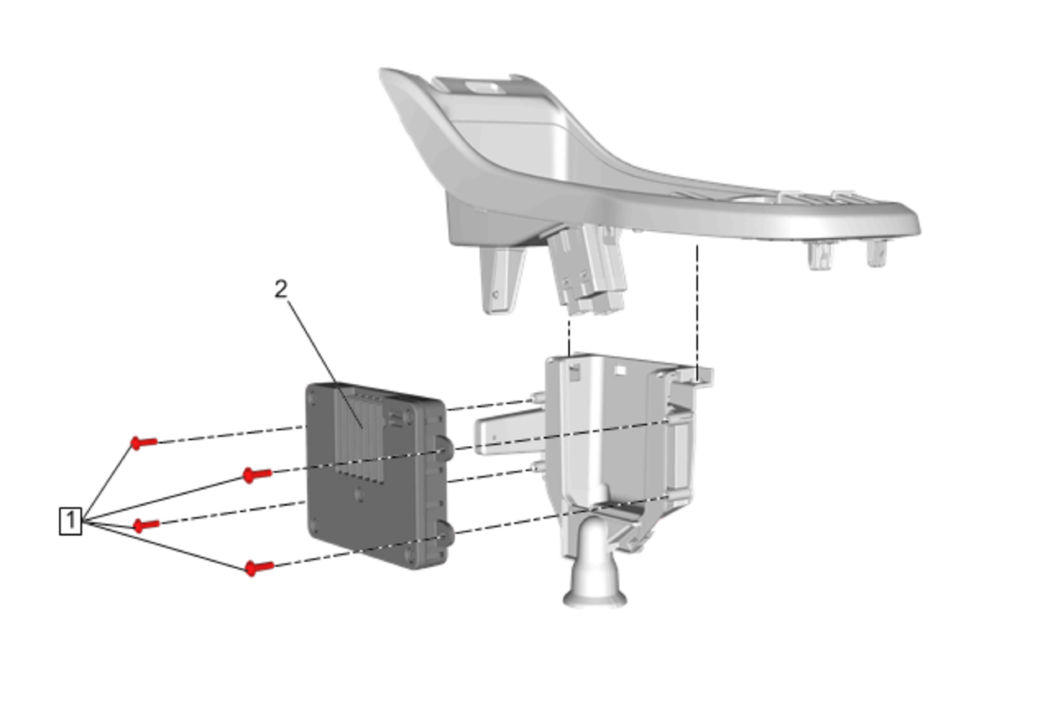

  1. GM4548396Courtesy of GENERAL MOTORS COMPANY

    Wireless Charging System Module(2)@Wireless Charging System Module Bracket - Install

  2. Wireless Charging System Module Bracket Screw (1) - Install and tighten [4x] 1N.m (9 lb in)

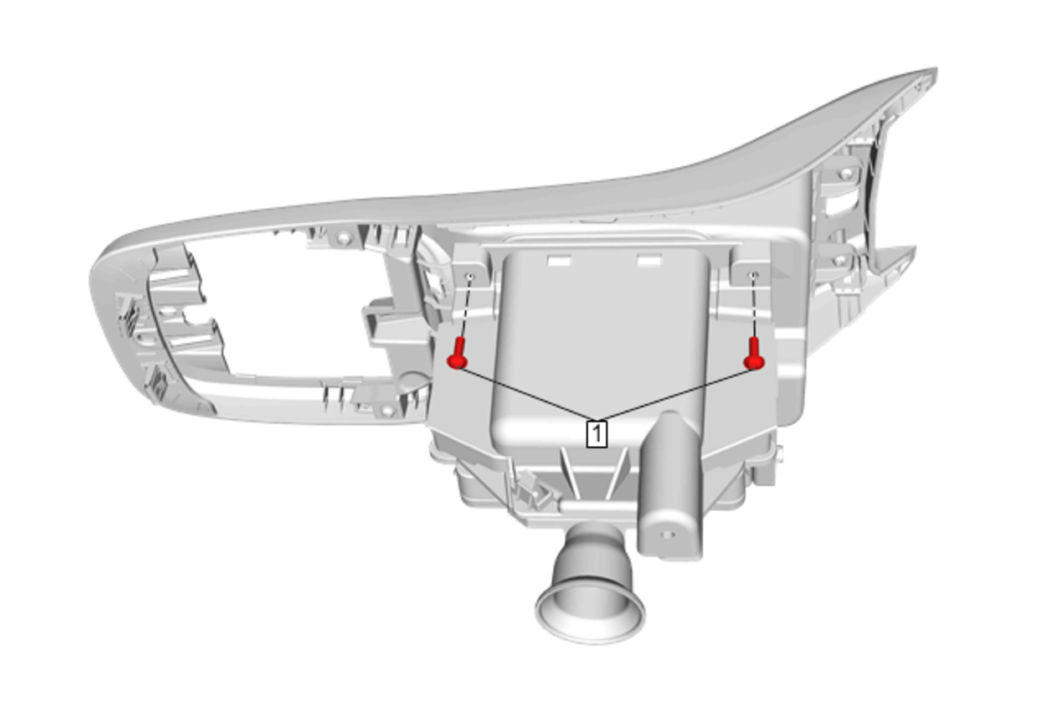

  3. GM4548393Courtesy of GENERAL MOTORS COMPANY

    Wireless Charging System Module Bracket Screw (1) - Install and tighten [2x] 1N.m (9 lb in)

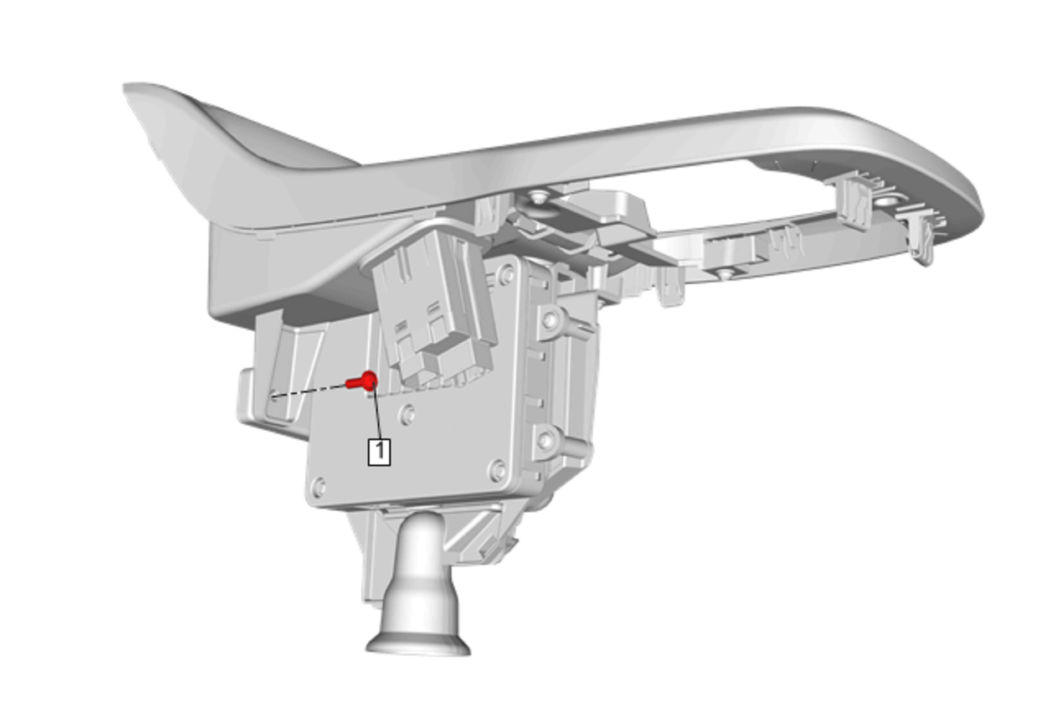

  4. GM4548390Courtesy of GENERAL MOTORS COMPANY

    Wireless Charging System Module Bracket Screw (1) - Install and tighten 1N.m (9 lb in)

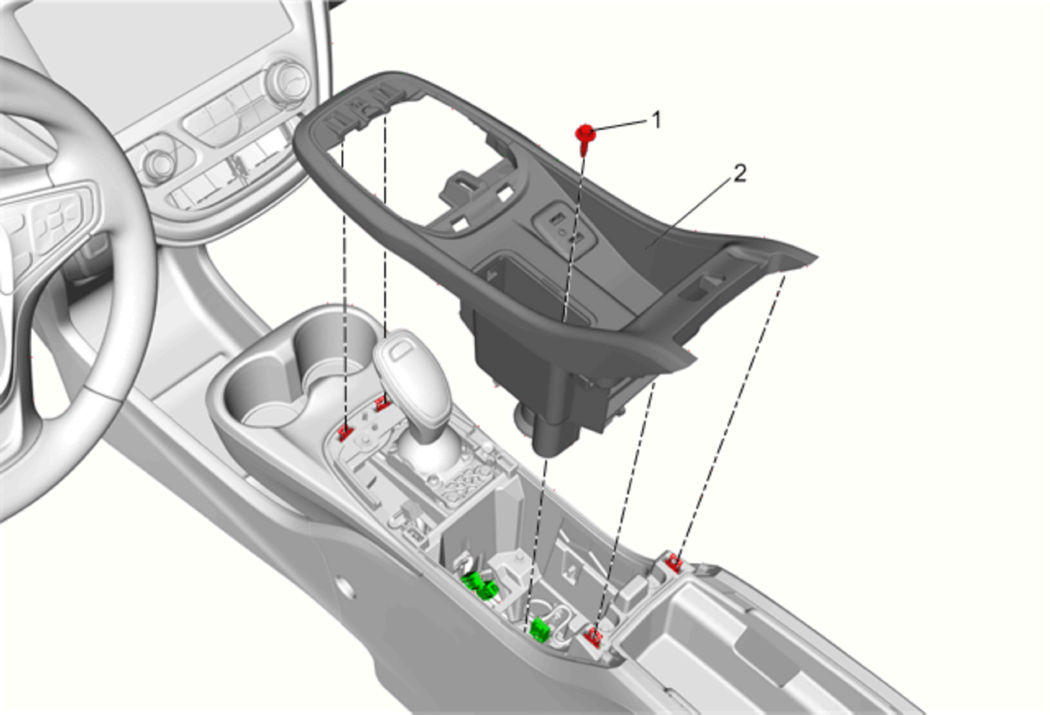

  5. GM4548385Courtesy of GENERAL MOTORS COMPANY

    Rear Floor Console Stowage Tray (2) - Install - Rear Floor Console Stowage Tray Replacement (without K4C)Rear Floor Console Stowage Tray Replacement (with K4C)
