Wireless Charging System Module Replacement

Courtesy of GENERAL MOTORS COMPANY

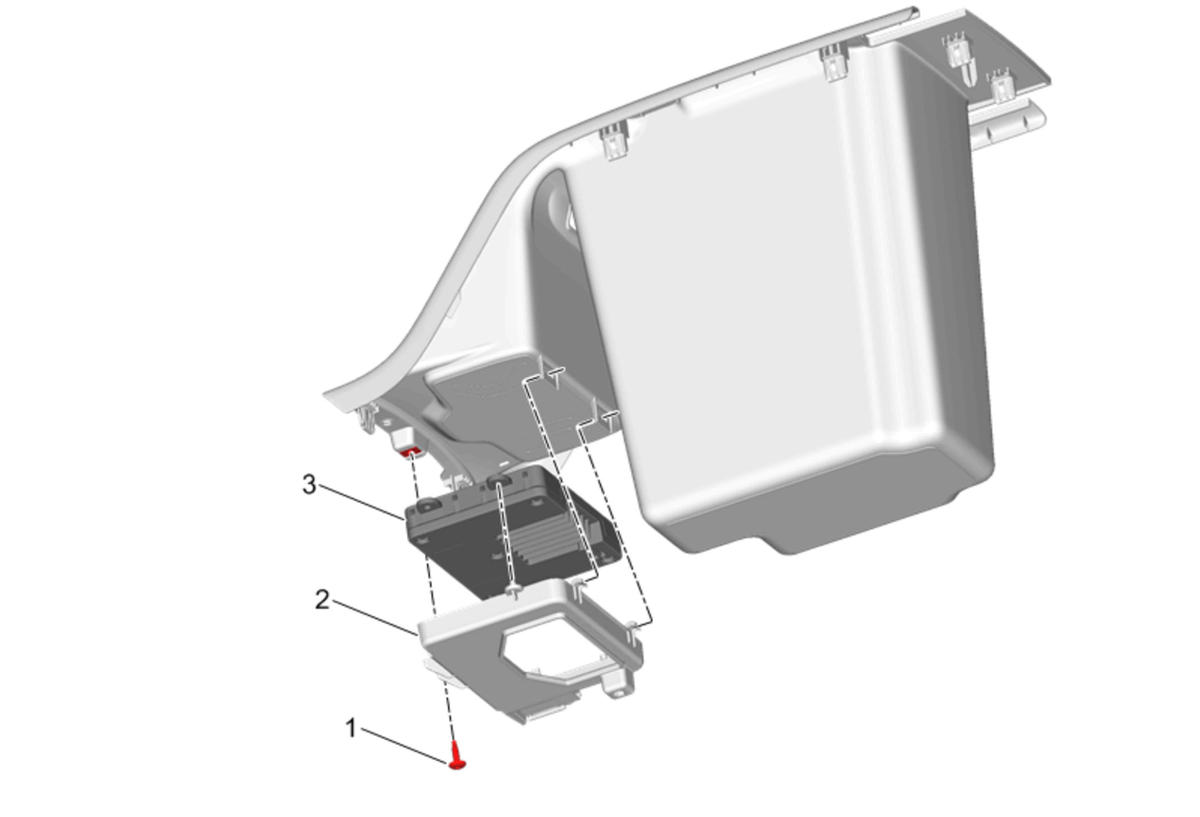

Callout	Component Name
Preliminary Procedure  Front Floor Console Compartment Replacement (Automatic Transmission)Front Floor Console Compartment Replacement (Manual Transmission)
1	Front Floor Console Bolt CAUTION: Fastener Caution Tighten  2.5N.m (22 lb in)
2	Front Floor Console Housing
3	Wireless Charging System Module
