Human Machine Interface Control Module Replacement

Callout	Component Name
Preliminary Procedure Human Machine Interface Control Module Bracket Replacement

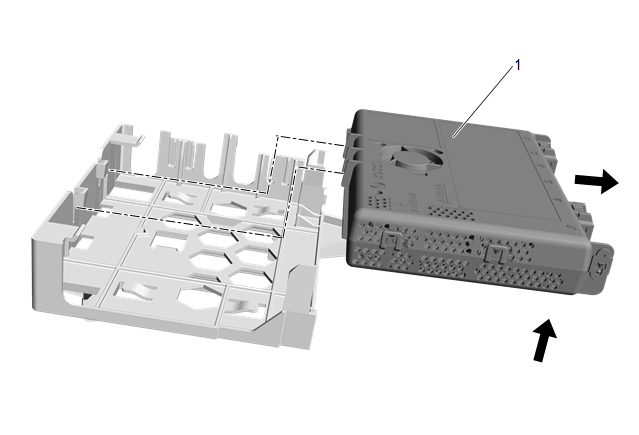

1	Human Machine Interface Control Module Procedure Unlock the retaining tabs. Like arrows, slightly lift the human machine interface control module up and push it out from the bracket. Transfer components as necessary. Control Module References

Callout

Component Name

Human Machine Interface Control Module

Procedure

Unlock the retaining tabs.
Like arrows, slightly lift the human machine interface control module up and push it out from the bracket.
Transfer components as necessary.
Control Module References
